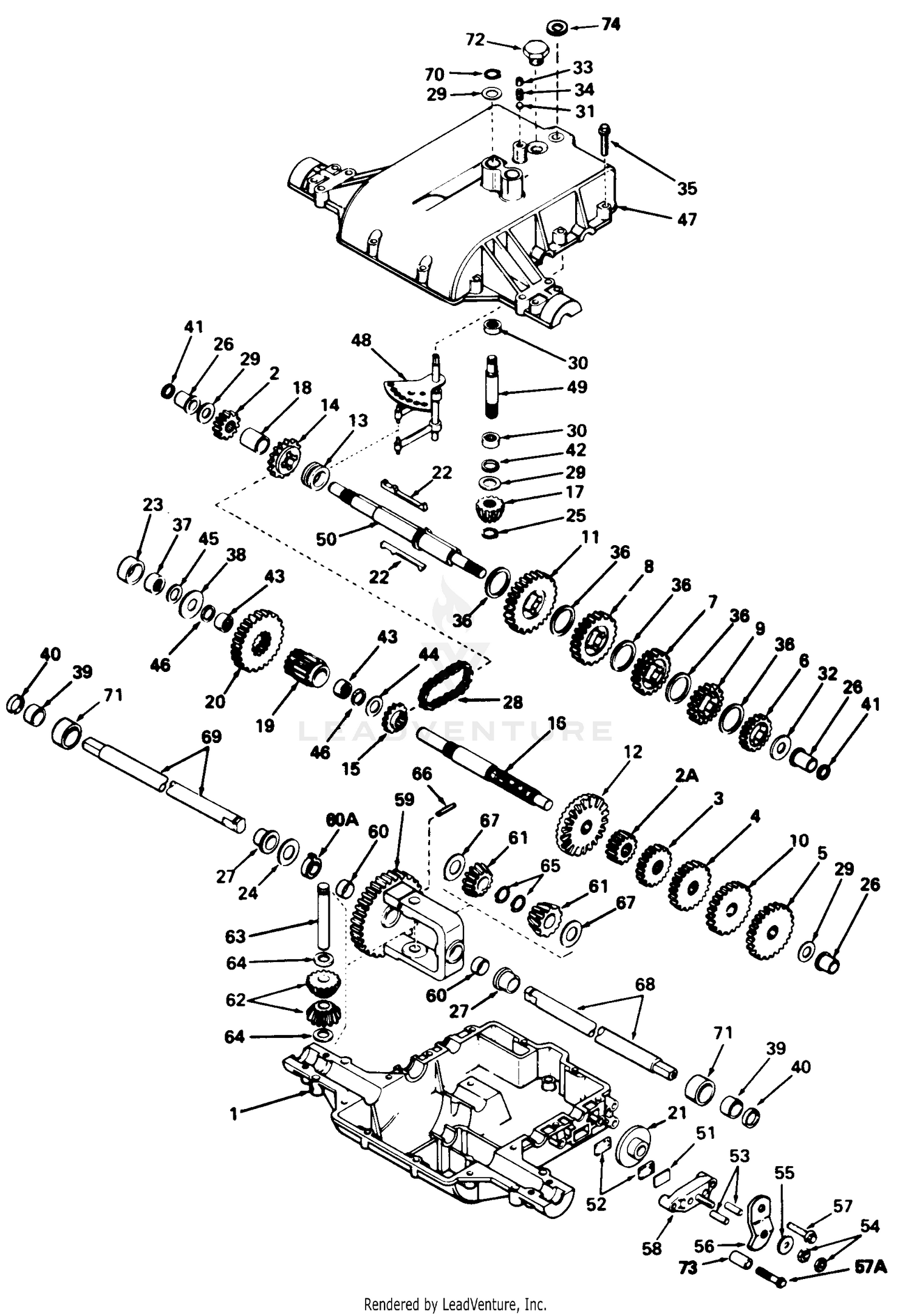

| Ref | Part Number | Description |
|---|
| 1 |
PE-770071A |
Case, Transaxle Price: Call Us |
| 2 |
PE-778136 |
Gear, Spur (15 Teeth) Price: Call Us |
| 2A |
PE-778145 |
Gear, Spur (12 Teeth) Price: Call Us |
| 3 |
PE-778151 |
Gear, Spur (15 Teeth) Price: Call Us |
| 4 |
TC-778126A |
SPUR GEAR (20 TEET Not Available This part replaces PE-778126A. Price: |
| 5 |
PE-778129A |
GEAR, SPUR (30 TEETH) Not Available Price: |
| 6 |
TC-778121A |
SPUR GEAR-20T Not Available This part replaces PE-778121A. Price: |
| 7 |
TC-778124A |
SPUR GEAR (30 TEET Not Available This part replaces PE-778124A. Price: |
| 8 |
TC-778125 |
SPUR GEAR (35 TEET Not Available This part replaces PE-778125. Price: |
| 9 |
TC-778123A |
SPUR GEAR (25 TEET Not Available This part replaces PE-778123A. Price: |
| 10 |
TC-778127A |
SPUR GEAR (25 TEET Not Available This part replaces PE-778127A. Price: |
| 11 |
PE-778146A |
Gear, Spur (37 Teeth) Price: Call Us |
| 12 |
TC-778137A |
SPUR GEAR-42T Not Available This part replaces PE-778137A. Price: |
| 13 |
TC-784266 |
COLLAR-SHIFT Not Available This part replaces PE-784266. Price: |
| 14 |
TC-786083 |
SPROCKET (18 TEET Not Available This part replaces PE-786083. Price: |
| 15 |
PE-786082 |
Sprocket (9 Teeth) Price: Call Us |
| 16 |
PE-776181 |
Shaft, Counter Price: Call Us |
| 17 |
TC-778113A |
BEVEL GEAR-INPUT Not Available This part replaces PE-778113A. Price: |
| 18 |
PE-786074 |
Spacer Price: Call Us |
| 19 |
PE-778138 |
Pinion, Output Price: Call Us |
| 20 |
PE-778139 |
Gear, Output Price: Call Us |
| 21 |
PE-790003 |
Disc, Brake Price: Call Us |
| 22 |
TC-792089B |
KEY Not Available This part replaces PE-792089A. Price: |
| 23 |
PE-786075 |
Spacer Price: Call Us |
| 24 |
PE-780001 |
WASHER Not Available Price: |
| 25 |
TC-788040 |
E-RINGXT RET .521 Not Available This part replaces PE-788040. Price: |
| 26 |
TC-780105A |
FLANGED BUSHING Not Available This part replaces PE-780105A. Price: |
| 27 |
PE-780118 |
Bushing, Flanged Price: Call Us |
| 28 |
TC-786081 |
CHAIN-ROLLER Not Available This part replaces PE-786081. Price: |
| 29 |
TC-780072 |
THRUST WASHER Not Available This part replaces PE-780072. Price: |
| 30 |
TC-780086 |
THRUST BEARING Not Available This part replaces PE-780086. Price: |
| 31 |
TC-792077A |
BALL-5/16 GRADE 20 Not Available This part replaces PE-792077. Price: |
| 32 |
PE-780109 |
WASHER Not Available Price: |
| 33 |
TC-792078 |
SCREW Not Available This part replaces PE-792078. Price: |
| 34 |
TC-792079 |
SPRING Not Available This part replaces PE-792079. Price: |
| 35 |
TC-792073A |
HEX SCREW HD TAP-1 Not Available This part replaces PE-792073. Price: |
| 36 |
TC-780108 |
Shift Washer (Cupped) Not Available This part replaces PE-780108. Price: |
| 37 |
PE-780111 |
Bearing, Needle Price: Call Us |
| 38 |
PE-780113 |
Washer, Flat Price: Call Us |
| 39 |
PE-530105 |
Bearing, Needle Price: Call Us |
| 40 |
PE-788042 |
Seal, Oil Price: Call Us |
| 41 |
PE-788051 |
Ring, Square Cut Price: Call Us |
| 42 |
PE-792001 |
Ring, Square Cut Price: Call Us |
| 43 |
PE-780112 |
Bearing, Needle Price: Call Us |
| 44 |
PE-780114 |
Washer, Flat Price: Call Us |
| 45 |
PE-788052 |
Ring, Square Cut Price: Call Us |
| 46 |
TC-788053 |
SEAL Not Available This part replaces PE-788053. Price: |
| 47 |
PE-772077B |
Cover, Transaxle Price: Call Us |
| 48 |
PE-784290 |
Rod and Fork Ass'y., Shift Price: Call Us |
| 49 |
TC-776140 |
INPUT SHAFT Not Available This part replaces PE-776140. Price: |
| 50 |
PE-776184A |
Shaft, Brake Price: Call Us |
| 51 |
PE-790007 |
Plate, Brake Pad Price: Call Us |
| 52 |
TC-799021 |
BRAKE PAD KIT (1 PKG = 2 PADS ) This part replaces PE-790006. Price: $11.03 |
| 53 |
PE-786026 |
Pin, Dowel Price: Call Us |
| 54 |
PE-792075 |
Lock Nut, 5/16-24 Price: Call Us |
| 55 |
PE-792076 |
Washer, Flat Price: Call Us |
| 56 |
PE-790004 |
Lever, Brake Price: Call Us |
| 57 |
TC-792073A |
HEX SCREW HD TAP-1 Not Available This part replaces PE-792073. Price: |
| 57A |
PE-792085 |
Screw, Hex Hd. Thread Forming, 1/4-20 x 2-1/4 Price: Call Us |
| 58 |
PE-790005 |
Holder, Brake Pad Price: Call Us |
| 60 |
PE-780064 |
Bushing Price: Call Us |
| 60A |
PE-780120 |
Bushing Price: Call Us |
| 61 |
PE-778067 |
GEAR, BEVEL Not Available Price: |
| 62 |
PE-778068 |
BEVEL GEAR Not Available Price: |
| 63 |
PE-786034 |
Pin Drive Price: Call Us |
| 64 |
PE-780065 |
Washer, Thrust Price: Call Us |
| 65 |
PE-792018 |
Ring, Retaining Price: Call Us |
| 66 |
PE-792040 |
Pin, Roll Price: Call Us |
| 67 |
PE-780001 |
WASHER Not Available Price: |
| 68 |
PE-774420 |
Axle (14-7/8" Long) Price: Call Us |
| 69 |
PE-774419 |
Axle (13" Long) Price: Call Us |
| 70 |
TC-792035 |
Retaining Ring Not Available This part replaces PE-792035. Price: |
| 71 |
PE-786084 |
Spacer Price: Call Us |
| 72 |
PE-792074 |
PLUG Not Available Price: |
| 73 |
PE-786066 |
Spacer Price: Call Us |
