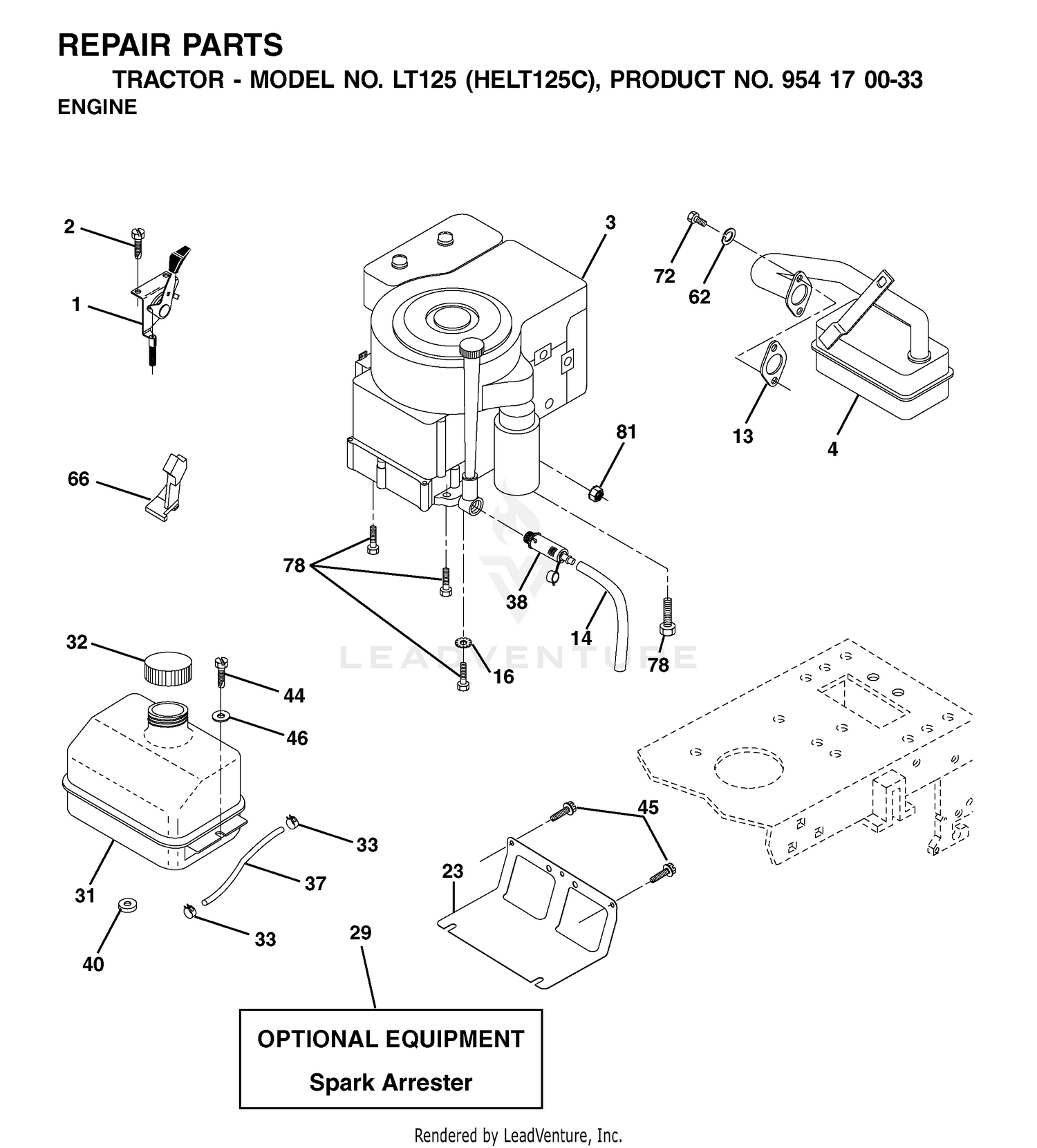

| Ref | Part Number | Description |
|---|
| 1 |
47-3270-01 |
NO. 5 LIFT ARM ASM Price: $1,706.08 |
| 1 |
532170865 |
THROTTLE.CONTROL.CABLE.BLACK Price: $22.99 |
| 2 |
47-3280-01 |
NO. 4 LIFT ARM ASM Price: $1,463.33 |
| 2 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 3 |
3-0128 |
SHAFT Price: $75.98 |
| 4 |
5-1720 |
WASHER Price: $2.24 |
| 4 |
532137348 |
MUFFLER.SINGLE.B&S.10-12HP Price: $89.99 |
| 5 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 6 |
3211-4 |
SCREW-HH Price: $1.02 |
| 7 |
23-2610-01 |
LINK ASM Price: $211.99 |
| 8 |
3256-62 |
WASHER-FLAT Price: $0.75 |
| 9 |
5-2942 |
SHACKLE Price: $16.99 |
| 10 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 11 |
47-3430-01 |
BRACKET-LIFT Price: $159.43 |
| 12 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 13 |
323-8 |
SCREW-HH Price: $1.20 |
| 13 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 14 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 15 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 23 |
531150701 |
SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532184900 |
TANK.ASM.FUEL.FRONT.W/CAP This part replaces 532109202. Price: $39.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532148315. Price: $14.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 66 |
532127951 |
STOP THROTTLE Price: $2.52 |
| 72 |
596134201 |
Screws This part replaces 871070512. Price: $2.99 |
| 78 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
