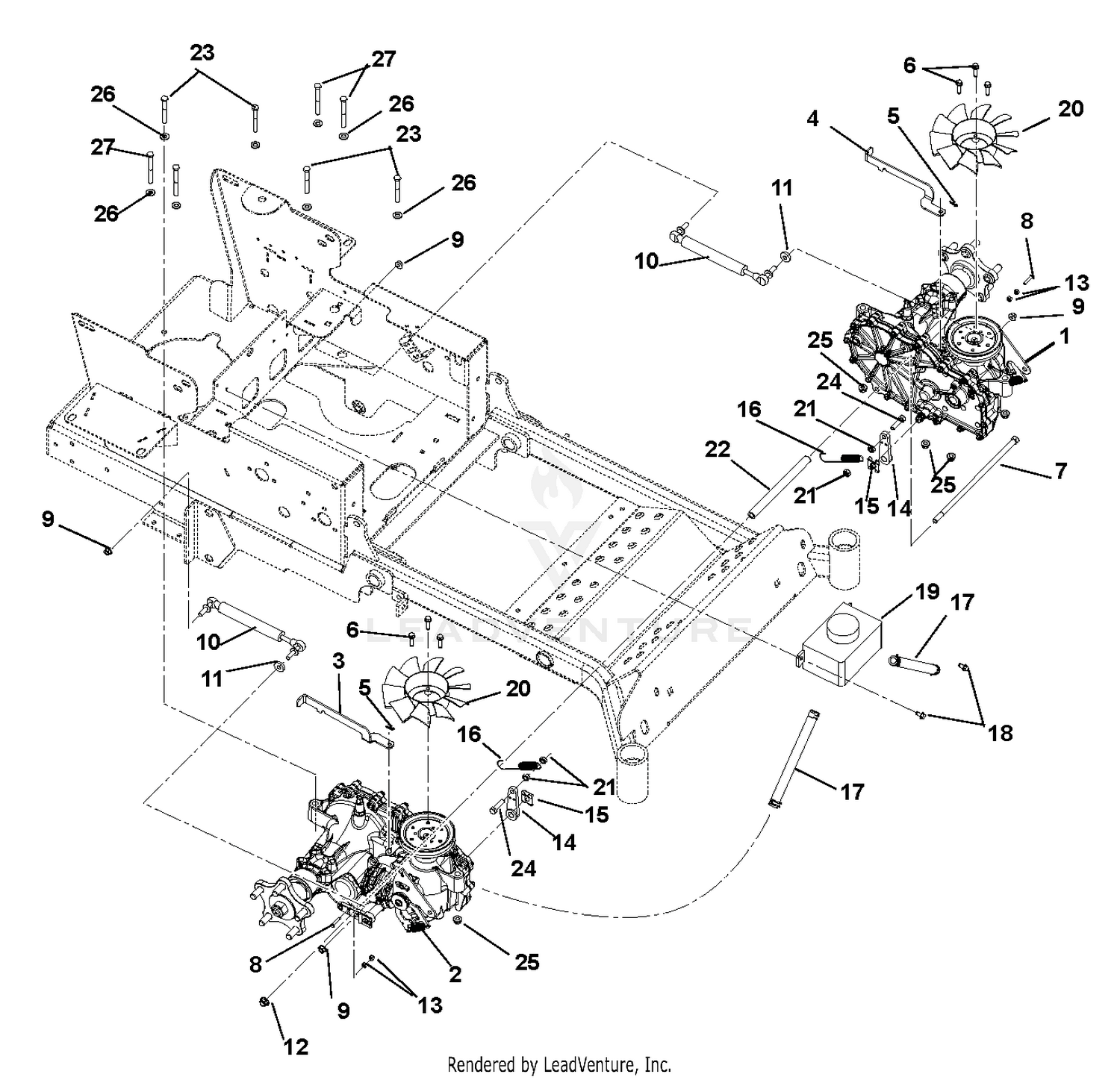

| Ref | Part Number | Description |
|---|
| 1 |
04827700 |
TRANSAXLE, ZT3100, LH This part replaces 03283700. Price: $1,299.95 |
| 2 |
04827800 |
TRANSAXLE, ZT3100, RH This part replaces 03283600. Price: $1,299.95 |
| 3 |
03282851 |
RH DUMP VALVE LEVER - BLACK Price: $26.45 |
| 4 |
03282951 |
LH DUMP VALVE LEVER - BLACK Price: $26.45 |
| 5 |
06700221 |
PIN-HAIR INT .06X.18X.77 This part replaces 06701900. Price: $0.45 |
| 6 |
07400133 |
SCR,TAP .25-20X1.00 HWH TR ZCC This part replaces 07412400. Price: $2.95 |
| 7 |
05901921 |
BLT, HEX .38-16X11.00 G5 ZCC This part replaces 05901315. Price: $7.45 |
| 8 |
06117800 |
SCR-MCH 8-32X1.00 HWH YWZC Price: Call Us |
| 9 |
803-220C |
NUT HEX FLANGE M8X1.25 PLT This part replaces 06500623. Price: $3.45 |
| 10 |
00188700 |
DAMPER Price: $87.95 |
| 11 |
06401103 |
WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95 |
| 12 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 14 |
02996500 |
ARM, BRAKE Price: $15.45 |
| 15 |
02996600 |
CLIP, BRAKE ARM Price: $5.95 |
| 17 |
03251900 |
ASM, HYDRO OVERFLOW TANK HOSE Price: $15.95 |
| 18 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 19 |
02958700 |
TANK, EXPANSION Price: $26.95 |
| 20 |
03283500 |
FAN, 2800 SERIES COOLING Price: $30.95 |
| 21 |
06500826 |
NUT,LK-CTR .31-18 GA ZCC This part replaces 06529800. Price: $1.45 |
| 22 |
03367200 |
SPCR,.406 ID X .630 OD X 7.724 Price: $13.45 |
| 23 |
05901912 |
BLT, HEX 0.3125-18X2.5 GR5 ZCC This part replaces 05952600. Price: $1.45 |
| 24 |
05901803 |
BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45 |
| 25 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 26 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45 |
