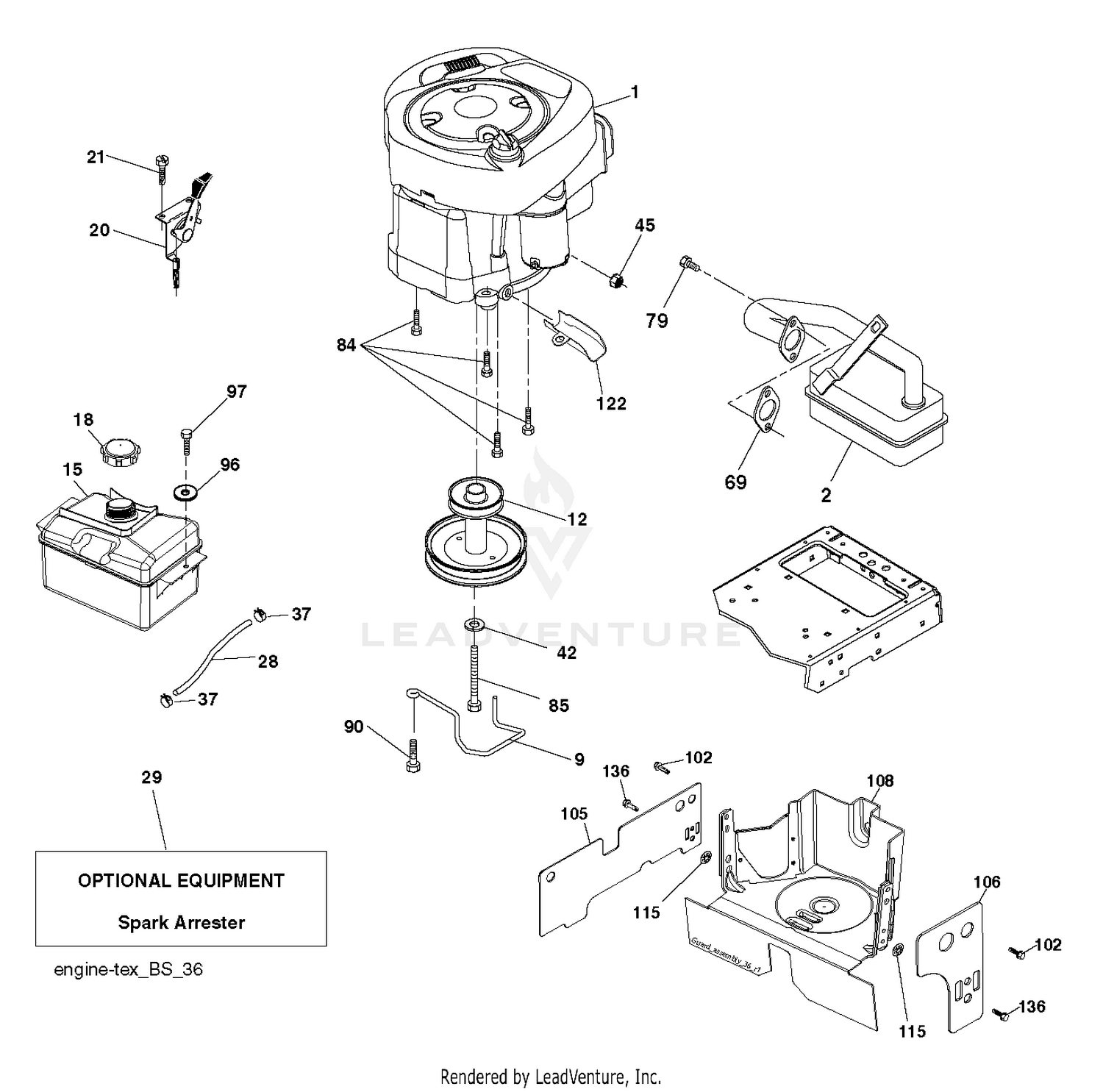

| Ref | Part Number | Description |
|---|
| 1 |
105-4292 |
NIPPLE-PIPE Price: $12.59 |
| 2 |
104-0497 |
COVER Price: $111.48 |
| 2 |
532179758 |
MUFFLER Price: $70.99 |
| 5 |
104-4897 |
GASKET Price: $16.54 |
| 6 |
98-4525 |
BRACKET-CLEANER, AIR Price: $52.87 |
| 7 |
104-0498 |
VALVE-VACUATOR Price: $14.68 |
| 8 |
108-3810 |
FILTER-AIR Price: $23.84 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 Price: $7.99 |
| 12 |
532140186 |
PULLEY ENGINE Price: $55.99 |
| 15 |
581289901 |
FUEL.TANK.ASM.1.5.GAL.NON-EPA This part replaces 532407545. Price: $54.99 |
| 18 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532430220. Price: $14.99 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $22.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 28 |
532137040 |
LINE.FUEL.20 Price: $3.99 |
| 29 |
532137180 |
ARRESTER SPARK (OPTIONAL) Price: $128.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated This part replaces 532165291. Price: $7.99 |
| 79 |
532192334 |
SCREW.SOCKET HD.5/16-1 Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 105 |
532420894 |
Price: $3.99 |
| 106 |
532430257 |
Price: $2.99 |
| 108 |
532431689 |
Price: $45.99 |
| 115 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 122 |
532421922 |
EXTENSION DRAIN OIL Price: $2.99 |
