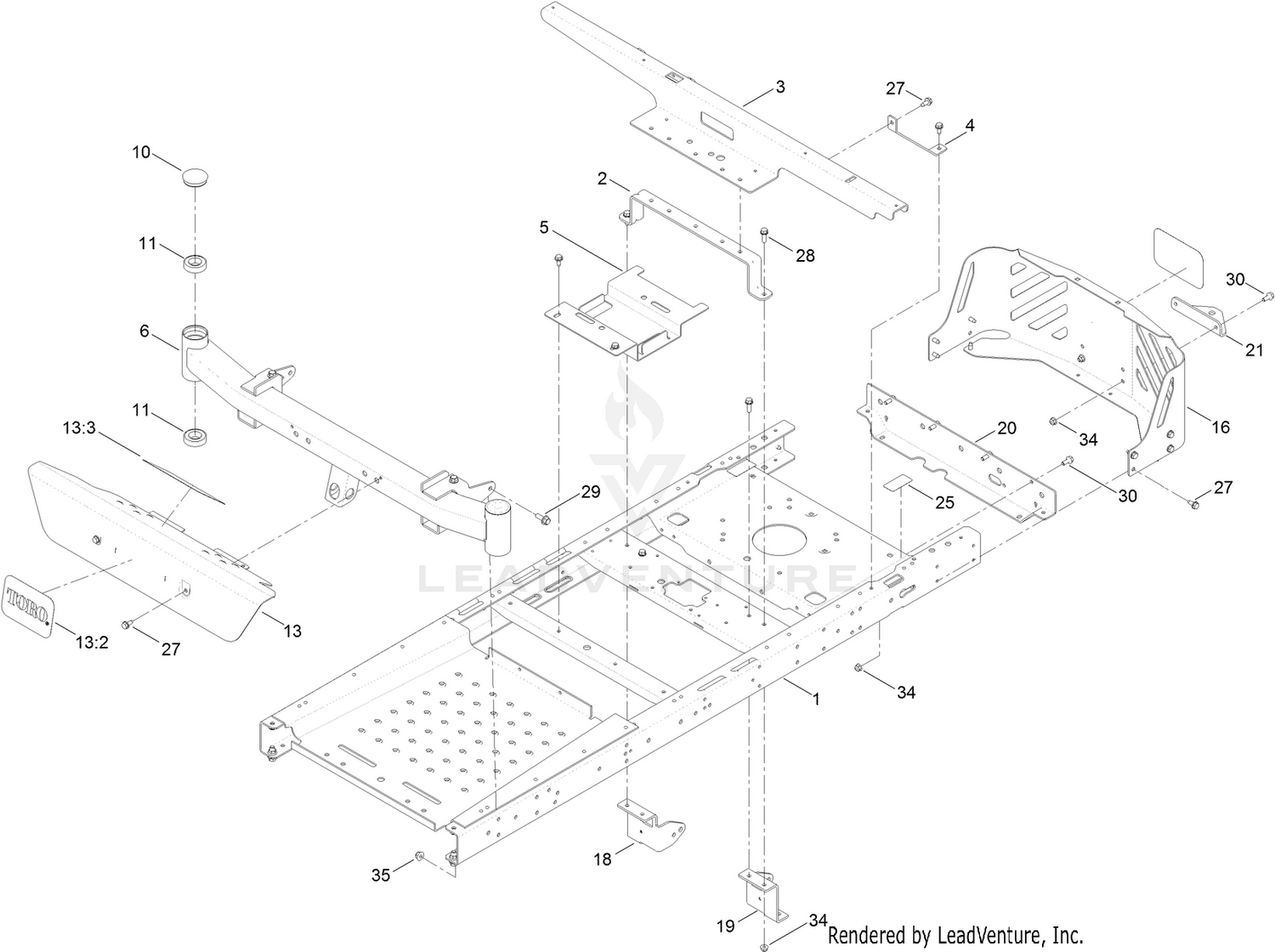

Frame Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-0699-01 | FRAME ASM Price: $333.64 |
| 2 | 117-7337-03 | BRACE-SEAT, REAR Price: $14.45 |
| 3 | 131-1039-03 | SUPPORT-POD, WIDE Price: $80.40 |
| 4 | 119-3431-03 | SUPPORT-TANK, REAR Price: $3.68 |
| 5 | 131-0914-03 | BRACKET-BATTERY Price: $21.32 |
| 6 | 125-1726-01 | AXLE ASM Price: $226.86 |
| 10 | 116-4348 | CAP-GREASE Price: $2.36 |
| 11 | 109-3678 | BEARING-BALL Price: $9.46 |
| 13 | 132-0892 | FOOTREST ASM Price: $140.16 |
| 16 | 130-0701-03 | GUARD-ENGINE, WIDE Price: $77.01 |
| 18 | 137-7020-01 | MOUNT-HYDRO, FRONT (RIGHT) This part replaces 131-0901-01. Price: $10.68 |
| 19 | 139-3211-01 | MOUNT-HYDRO, FRONT (LEFT) This part replaces 131-0902-01. Price: $10.06 |
| 20 | 130-6946-01 | CROSSMEMBER-REAR, WIDE Price: $28.01 |
| 21 | 117-1232-03 | BRACKET-HITCH Price: $19.74 |
| 25 | 121-2989 | DECAL-BYPASS Price: $2.26 |
| 27 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 28 | 3234-29 | SCREW-HHF Price: $1.84 |
| 29 | 3234-42 | SCREW-HHF Price: $1.10 |
| 30 | 3234-47 | SCREW-HHF Price: $1.79 |
| 34 | 104-8300 | NUT-HF, NI Price: $0.39 |
