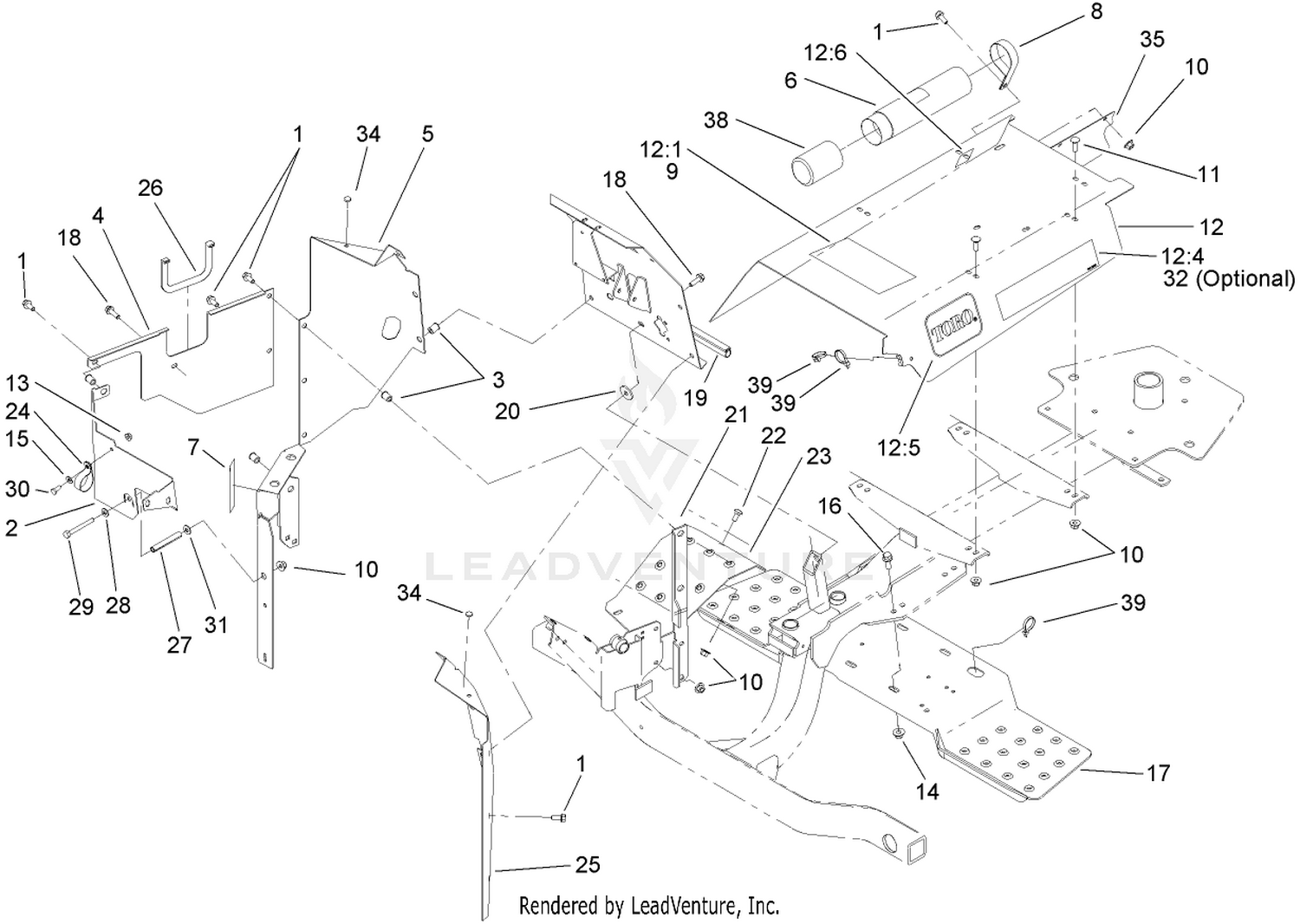

Skirt and Body Panel Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3234-5 | SCREW-HHF Price: $0.42 |
| 2 | 104-3865-03 | PANEL-FRONT, RH Price: $91.54 |
| 3 | 32148-7 | NUT-CLINCH Price: $0.98 |
| 4 | 104-4063-03 | FRONT PANEL ASM Price: $142.58 |
| 5 | 104-3932-03 | PANEL-REAR, RIGHT Price: $105.20 |
| 6 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 7 | 106-8120 | DECAL-DANGER, CE Price: $9.83 |
| 8 | 2412-133 | CLAMP-R Price: $3.19 |
| 9 | 106-8119 | DECAL-WARNING, CE Price: $9.14 |
| 10 | 32128-44 | NUT Price: $2.69 |
| 11 | 3230-2 | BOLT-CARR Price: $0.47 |
| 12 | 104-3916 | SKIRT ASM Price: $359.25 |
| 13 | 32128-33 | NUT-HF Price: $0.25 |
| 14 | 32128-43 | NUT-FLANGE Price: $0.94 |
| 15 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 16 | 3234-11 | SCREW-HHF Price: $1.23 |
| 17 | 93-6868-03 | STEP-FOOT Price: $438.49 |
| 18 | 3234-17 | SCREW-HHF Price: $0.72 |
| 19 | 76-6471 | STRIP-SEAL, FIREWALL Price: $14.64 |
| 20 | 62-7170 | SPACER-RUBBER Price: $28.36 |
| 21 | 104-4009-03 | ANGLE-RIGHT Price: $44.29 |
| 22 | 3230-1 | BOLT-CARR Price: $1.49 |
| 23 | 93-6938-03 | SHIELD-FOOTREST Price: $60.07 |
| 24 | 2412-74 | R-CLAMP Price: $2.37 |
| 25 | 93-6732-03 | PANEL-REAR, LEFT Price: $99.92 |
| 26 | 104-4060 | TRIM Price: $6.99 |
| 27 | 93-6908 | SPACER-SPLIT Price: $5.37 |
| 28 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 29 | 321-9 | SCREW-HH This part replaces 322-23. Price: $0.27 |
| 30 | 321-3 | SCREW-HH Price: $0.28 |
| 31 | 87-8640 | WASHER-FLAT Price: $0.68 |
| 32 | 104-4014 | DECAL-SPORT, REELMASTER Price: $36.52 |
| 34 | 104-4098 | SEAL-FOAM Price: $2.41 |
| 35 | 104-4086-01 | SHIELD-MUFFLER Price: $31.36 |
| 38 | 104-7048 | CAP-HOUSING Price: $5.21 |
