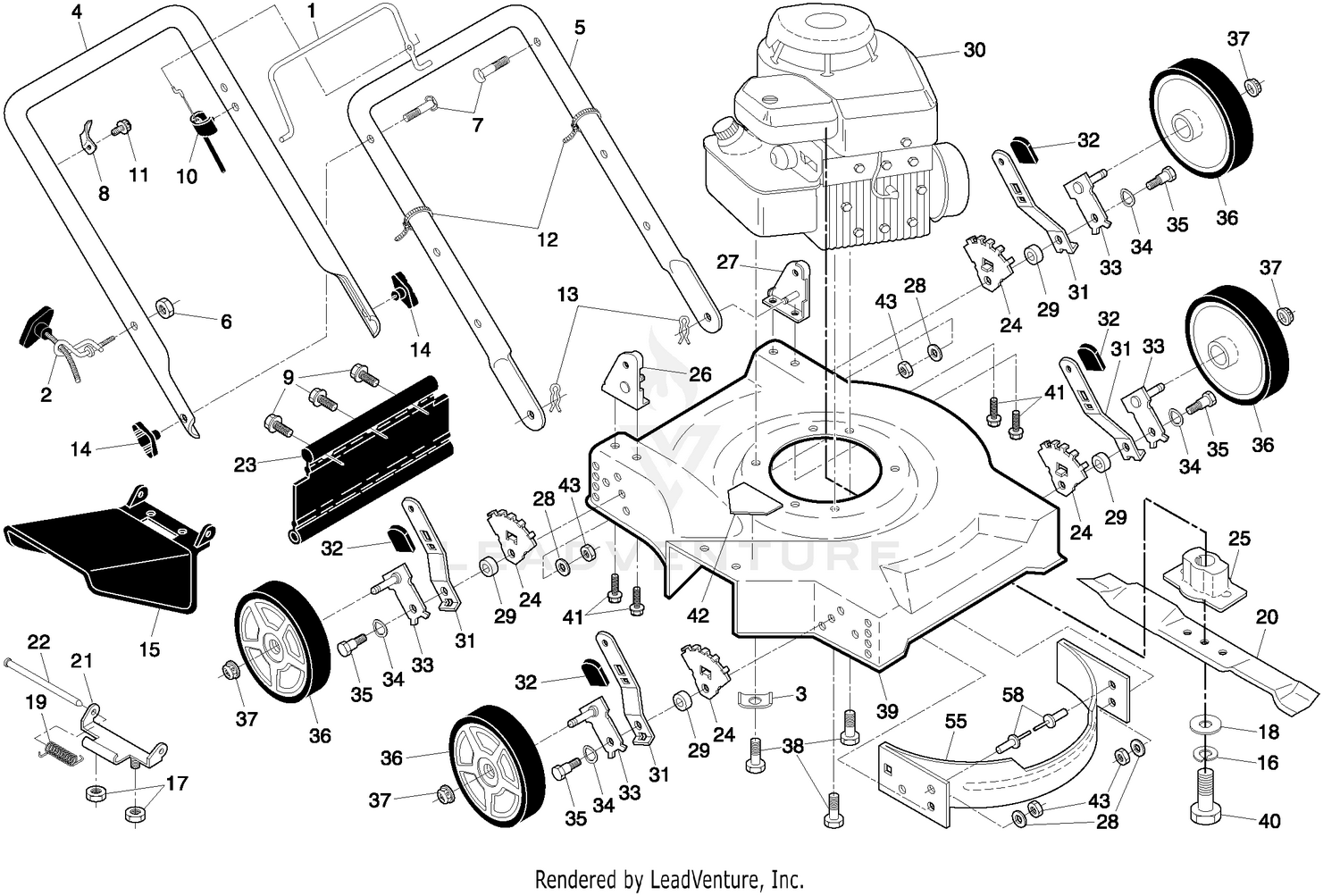

| Ref | Part Number | Description |
|---|
| 1 |
194176X428 |
Control Bar Price: Call Us |
| 2 |
194788 |
Rope Guide Price: Call Us |
| 3 |
851201X004 |
Engine Washer Price: Call Us |
| 4 |
194180X479 |
Upper Handle Price: Call Us |
| 5 |
151590X479 |
Lower Handle Price: Call Us |
| 6 |
132004 |
Nut, Hex Price: Call Us |
| 7 |
191574 |
Handle Bolt 5/16-18 x 1-3/4 Price: Call Us |
| 8 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 9 |
189241 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 10 |
162778 |
Engine Zone Control Cable Price: Call Us |
| 11 |
750634 |
Screw Price: Call Us |
| 12 |
664-26 |
Wire Tie Price: Call Us |
| 13 |
51793 |
Hairpin Cotter Price: Call Us |
| 14 |
189713X428 |
Knob, Handle Price: Call Us |
| 15 |
412277X428 |
Discharge Guard Price: Call Us |
| 16 |
850263 |
Helical Lock Washer 3/8 Price: Call Us |
| 17 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 18 |
851074 |
Hardened Washer Price: Call Us |
| 19 |
411832 |
Torsion Spring Price: Call Us |
| 20 |
145106 |
Blade, 20" Price: Call Us |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 21 |
88602 |
Hinge Deflector Price: Call Us |
| 22 |
150215 |
Hinge Rod Price: Call Us |
| 23 |
189240 |
Rear Deflector Price: Call Us |
| 24 |
407494X005 |
Wheel Adjusting Bracket Price: Call Us |
| 25 |
850977 |
Blade Adapter Price: Call Us |
| 26 |
170345X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 27 |
170346X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 28 |
61537 |
Washer, Flat Price: Call Us |
| 29 |
401629 |
Spacer Price: Call Us |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 31 |
401621X004 |
Selector Spring Price: Call Us |
| 32 |
87877 |
Selector Knob Price: Call Us |
| 33 |
401179X004 |
Axle Arm Assembly Price: Call Us |
| 34 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 35 |
401638 |
Shoulder Bolt Price: Call Us |
| 36 |
193931X617 |
Wheel and Tire Assembly Price: Call Us |
| 37 |
409148 |
Nut, Hex Price: Call Us |
| 38 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 39 |
414790 |
Lawn Mower Housing Price: Call Us |
| 40 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 40 |
851084 |
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 41 |
149741 |
Thread Cutting Screw 5/16-18 x 3/4 Price: Call Us |
| 42 |
404763 |
Danger Decal Price: Call Us |
| 43 |
73930500 |
Locknut, Hex 3/8-16 Price: Call Us |
| 50 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 55 |
700839X479 |
Baffl e, Front Price: Call Us |
| 58 |
128415 |
Pop Rivet Price: Call Us |
| 58 |
193732 |
Operator’s Manual, English Price: Call Us |
| 58 |
193735 |
Operator's Manual, Spanish Price: Call Us |
| 60 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 70 |
98-9352 |
BOLT Price: $0.80 |
| 80 |
98-7568 |
BOLT Price: $0.84 |
| 90 |
115-4106 |
MAIN BEARING CASE ASM This part replaces 98-9606. Price: $189.84 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
115-4107 |
MAIN BEARING CASE ASM This part replaces 98-9607. Price: $152.88 |
