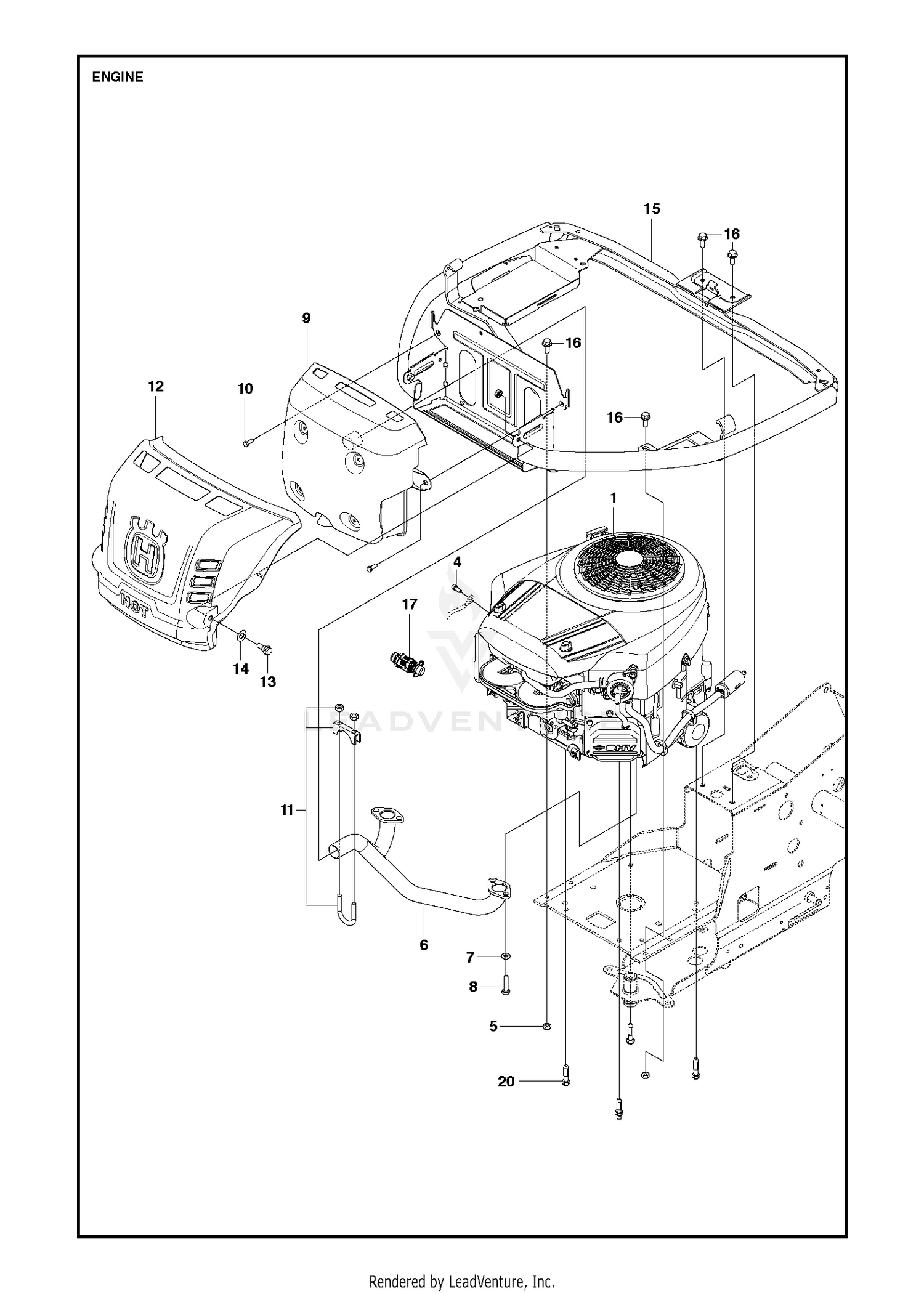

ENGINE
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 114-8124 | BOX-STORAGE, RH Price: $206.51 |
| 1 | 591075401 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 115-4368 | COVER ASM Price: $218.42 |
| 3 | 114-8132 | HINGE-COVER Price: $36.68 |
| 4 | 578878901 | SCREW Price: $1.99 |
| 4 | 98-1375 | SCREW-HWH Price: $1.45 |
| 5 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 6 | 582722801 | Mainfolds Price: $59.99 |
| 7 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 9 | 577813602 | MUFFLER Price: $279.99 |
| 10 | 725236461 | SCREW Price: $2.99 |
| 11 | 501152201 | CLAMP ASSY EXHAUST Price: $2.99 |
| 12 | 577818502 | HEAT SHIELD Price: $84.99 |
| 13 | 506597401 | BOLT Price: $5.99 |
| 14 | 506839401 | SPRINGWASHER Price: $3.99 |
| 15 | 577849101 | ENGINE FRAME Price: $199.99 |
| 16 | 506570104 | BOLT Price: $4.99 |
| 17 | 532428287 | VALUE.OIL.DRAIN Price: $14.99 |
| 20 | 578207501 | STUD SCREW Price: $3.99 |
