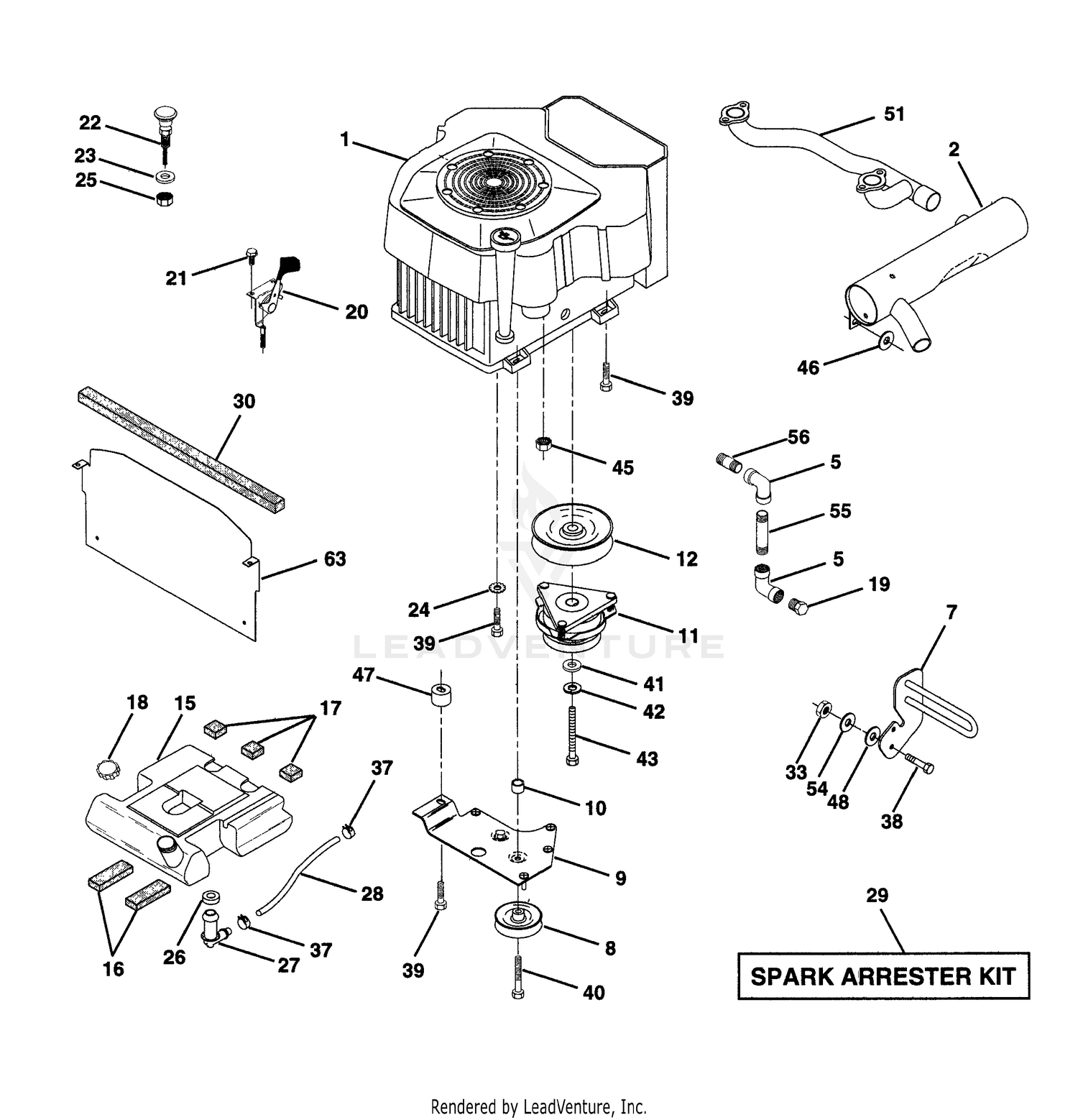

| Ref | Part Number | Description |
|---|
| 1 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 2 |
532161062 |
MUFFLER This part replaces 532144636. Price: $94.56 |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 4 |
283-61 |
PIN-YOKE Price: $1.56 |
| 5 |
44-0870 |
CAM SHAFT ASM Price: $213.32 |
| 5 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 6 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 7 |
27-2320 |
BEARING Price: $15.22 |
| 7 |
532151396 |
MUFFLER ASSEMBLY GUARD Price: $23.99 |
| 8 |
283-57 |
PIN-CLEVIS Price: $1.15 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
49-6220 |
BRACKET-ARM, CONTROL Price: $28.06 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE This part replaces 532150828. Price: $12.99 |
| 10 |
256-251 |
BUSHING Price: $2.46 |
| 10 |
532105432 |
BUSHING Price: $4.99 |
| 11 |
233-48 |
KNOB Price: $10.92 |
| 11 |
532174509 |
CLUTCH KIT This part replaces 532140923. Price: $449.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 12 |
83-0590 |
DISCONTINUED Price: Call Us |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 15 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 17 |
57-6220 |
LINK-CONNECTING Price: $6.01 |
| 18 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 19 |
3211-2 |
SCREW-HH Price: $2.17 |
| 20 |
532132748 |
CONTROL.THROT.RH.BLK.FLG.44.75 This part replaces 532132747. Price: $20.99 |
| 20 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 21 |
49-6260 |
PIVOT ASM Price: $79.73 |
| 21 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 22 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 22 |
532132781 |
CHOKE CONTROL Price: $22.99 |
| 23 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 23 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 24 |
83-0540-01 |
TRACTION PEDAL ASM This part replaces 83-0540. Price: $70.97 |
| 25 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 25 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 26 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 26 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532124703. Price: $5.99 |
| 29 |
532132920 |
SPARK ARRESTOR Price: $43.09 |
| 29 |
83-0630 |
ARM-PIVOT, TRACTION Price: $25.47 |
| 30 |
2411-42 |
JOINT-BALL, LH Price: $19.07 |
| 30 |
532105037 |
FOAM-STRIP LT Price: $2.38 |
| 31 |
3220-20 |
NUT-JAM Price: $0.92 |
| 32 |
83-0580 |
ROD-CONTROL, TRACTION Price: $53.72 |
| 33 |
2411-43 |
JOINT-BALL Price: $21.40 |
| 33 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 34 |
77-0480 |
SCREW - STOP Price: $2.18 |
| 35 |
49-6250 |
BRACKET-PIVOT Price: $22.09 |
| 36 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
49-6290 |
PIVOT SHAFT ASM Price: $25.43 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
12-3270 |
SCREW Price: $3.09 |
| 38 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874780624. Price: $6.99 |
| 39 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
47-5320-01 |
LEVER This part replaces 47-5320. Price: $84.02 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 UNC Price: $3.99 |
| 41 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 45 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
| 46 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 47 |
532142040 |
SPACER.ENGINE.CV22.ROUND.PM Price: $3.99 |
| 48 |
819132007 |
Washer 13/32 x 1-1/4 x 7 Ga. Price: $3.99 |
| 51 |
532161230 |
MANIFOLD PIPE VGT This part replaces 532140787. Price: $84.15 |
| 54 |
819131414 |
WASHER Price: $3.99 |
| 55 |
813280336 |
Nipple, Pipe 4-1/2" This part replaces 813090336. Price: $2.42 |
| 56 |
813090308 |
NIPPLE, PIPE 3/8 NPTX1.00 Price: $4.99 |
