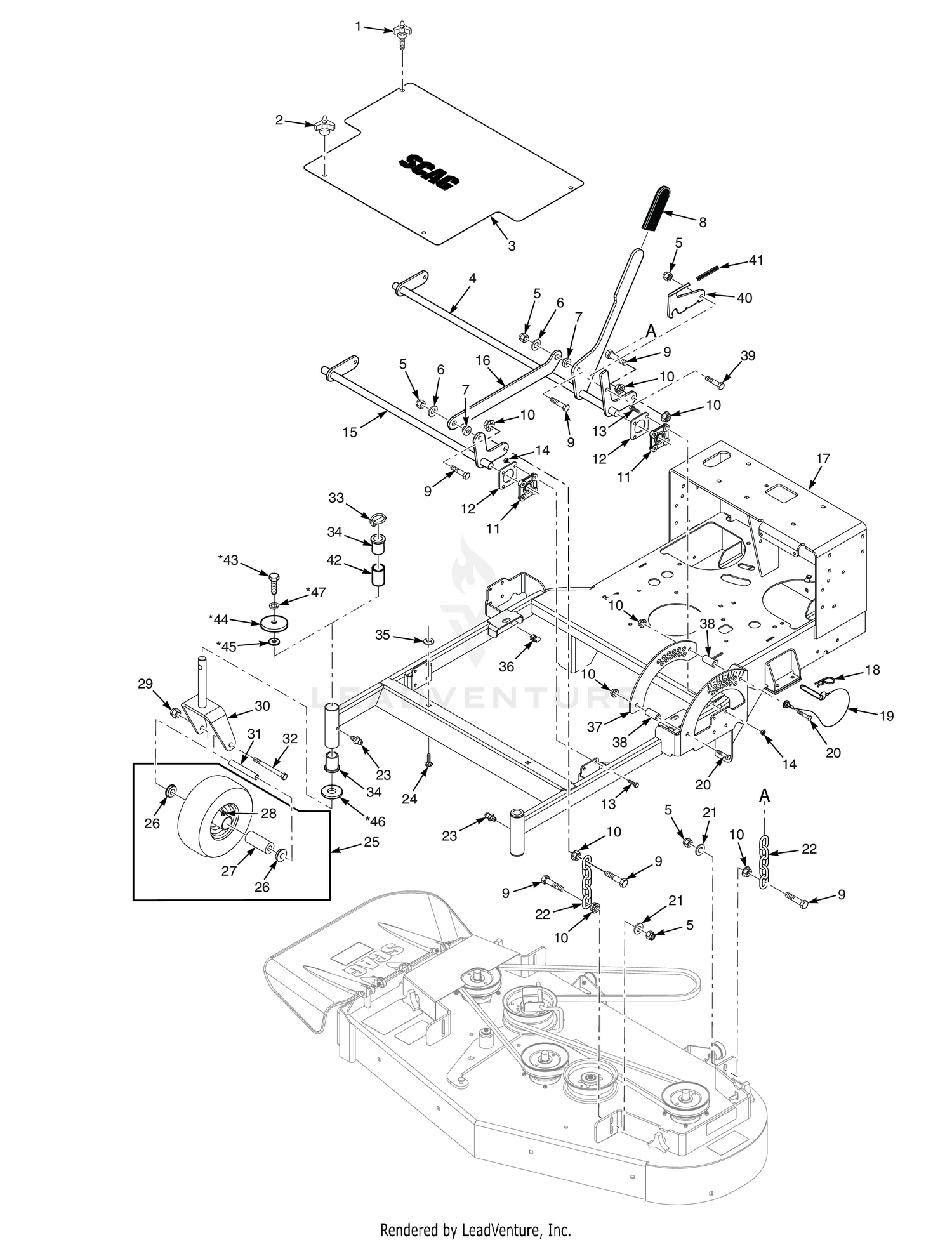

| Ref | Part Number | Description |
|---|
| 1 |
481625-01 |
Knob, w/stud 3/8-16 x 1-1/4" Price: Call Us |
| 2 |
04029-04 |
Wing Nut, 3/8-16 (Small) Top side Price: Call Us |
| 3 |
463295 |
BELT COVER W/ DECALS, SWZT This part replaces 462683. Price: Call Us |
| 4 |
462522 |
Deck Bellcrank Assy. Price: Call Us |
| 5 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 6 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 7 |
43086 |
BUSHING, SPEED ADJUSTMENT LEVER Price: Call Us |
| 8 |
484669 |
Grip, Deck Lift Price: Call Us |
| 9 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 10 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 11 |
483334 |
Bearing, Deck Lift - 48V & 52V Price: Call Us |
| 12 |
425209 |
Reinforcement, Bearing - 48V & 52V Price: Call Us |
| 13 |
04017-17 |
Cpscrw, 5/16-18 x 1"Serrated Flange Hex Head Price: Call Us |
| 14 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 15 |
452018 |
Deck Lift Weldment, Front Price: Call Us |
| 16 |
425968 |
Link, Decklift Price: Call Us |
| 17 |
463339 |
FRAME W/ DECALS, SWZT-36/48 This part replaces 463030. Price: Call Us |
| 18 |
04062-04 |
Hair Pin Cotter, .177" x 3-1/4" Price: Call Us |
| 19 |
483345 |
Lanyard, Deck Height Pin Assembly Price: Call Us |
| 20 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 21 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 22 |
482628 |
Chain, Deck Lift Price: Call Us |
| 23 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 24 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 25 |
9275 |
Flat Free Tire Assy. Price: Call Us |
| 26 |
481770 |
Retainer, Bearing, Caster Wheel Price: Call Us |
| 27 |
481769 |
Roller Bearing, .625 x 3-1/4" Price: Call Us |
| 28 |
48114-03 |
GREASE FITTING, 45 DEGREE 1/4-28 Price: Call Us |
| 29 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 30 |
45006 |
Caster Yoke Weldment Price: Call Us |
| 31 |
43022 |
SLEEVE, CASTER WHEEL BEARING Price: Call Us |
| 32 |
04001-37 |
Bolt, Hex Head 1/2-13 x 5-1/2" (Three Weights Installed) Price: Call Us |
| 33 |
04066-01 |
Quick Pin, .438" Dia. Price: Call Us |
| 34 |
48100-01 |
Bronze Bushing, 7/8 ID x 1.0 Flanged Price: Call Us |
| 35 |
04024-02 |
Nut, Push-On - 3/8" Dia. Price: Call Us |
| 36 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 37 |
425970 |
Bracket, Deck Height Price: Call Us |
| 38 |
43805 |
Spacer Price: Call Us |
| 39 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 40 |
462817 |
Lever Assembly, Deck Latch Price: Call Us |
| 41 |
485718 |
Grip, Deck Transport Lock Price: Call Us |
| 42 |
43736 |
Spacer, Caster Bearing Price: Call Us |
| 9276 |
Caster |
Wheel Assembly, 11 x 4.0-5 Price: Call Us 9276 |
| 43511 |
Sleeve, |
Caster Wheel Bearing - SWZT61 Price: Call Us 43511 |
| 426896 |
Link, |
Decklift -SWZT61 Price: Call Us 426896 |
| 452692 |
Deck |
Lift Weldment, Front - SWZT61 Price: Call Us 452692 |
| 452697 |
Caster |
Yoke - SWZT61 Price: Call Us 452697 |
| 462792 |
Deck |
Bellcrank Assy. - SWZT61 Price: Call Us 462792 |
| 463310 |
BELT |
COVER W/ DECALS, SWZT-61 This part replaces 462788. Price: Call Us 463310 |
| 463341 |
FRAME |
W/ DECALS, SWZT-61 This part replaces 463032. Price: Call Us 463341 |
