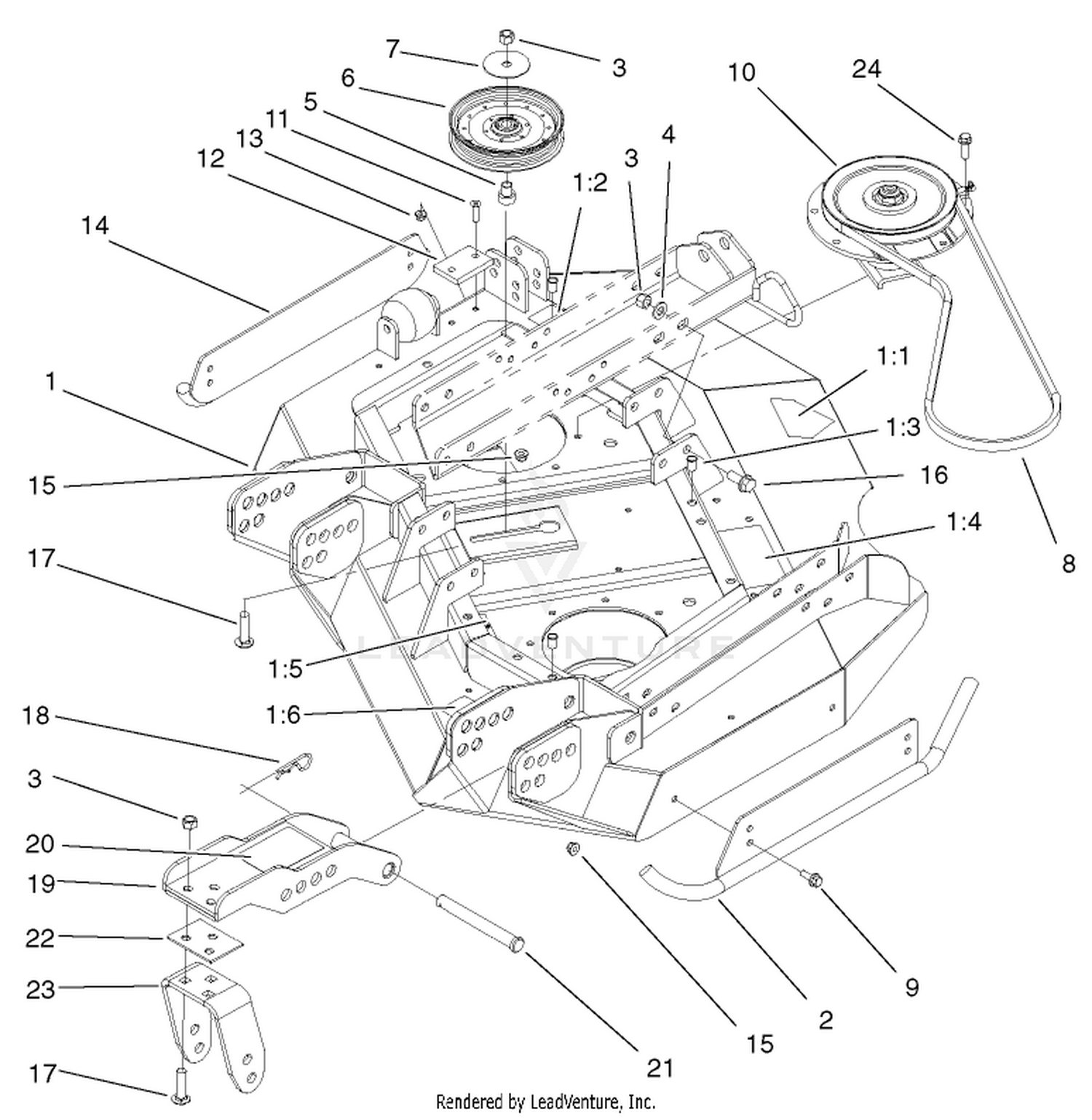

Deck, Idler And Skid Assembly

Ref	Part Number	Description
1	100-3037	DISCONTINUED Price: Call Us
2	100-8125-01	LH SKID ASM Price: $136.18
3	3296-25	NUT-LOCK, NI Price: $1.34
4	3256-26	WASHER-FLAT Price: $0.39
5	100-2984	SPACER-IDLER Price: $45.43
6	99-5493	PULLEY-IDLER Price: $78.45
7	100-3102	WASHER-FLAT Price: $3.70
8	55-7660	V-BELT Price: $52.99
9	3234-42	SCREW-HHF Price: $1.10
10	139-1039	LOW DRIVEN SPINDLE ASM This part replaces 104-3532. Price: $589.65
11	32108-103	SCREW-FH Price: $0.68
12	69-9290	PAD-BUMPER Price: $9.52
13	104-8300	NUT-HF, NI Price: $0.39
14	104-2250-01	SKID-SIDE Price: $116.02
15	104-8301	NUT-HF, NI Price: $1.09
16	3234-38	SCREW-HHF Price: $3.33
17	9002719	SCREW-CARR Price: $3.83
18	3290-343	PIN-HAIR Price: $0.76
19	104-7529-01	BRACKET-CASTOR Price: $225.46
20	104-3579	DECAL-HOC Price: $23.95
21	100-5569	PIN-CLEVIS Price: $22.34
22	104-7524	SHIM Price: $5.30
23	121-1720-01	BRACKET-FORK This part replaces 104-7525-01. Price: $36.79
