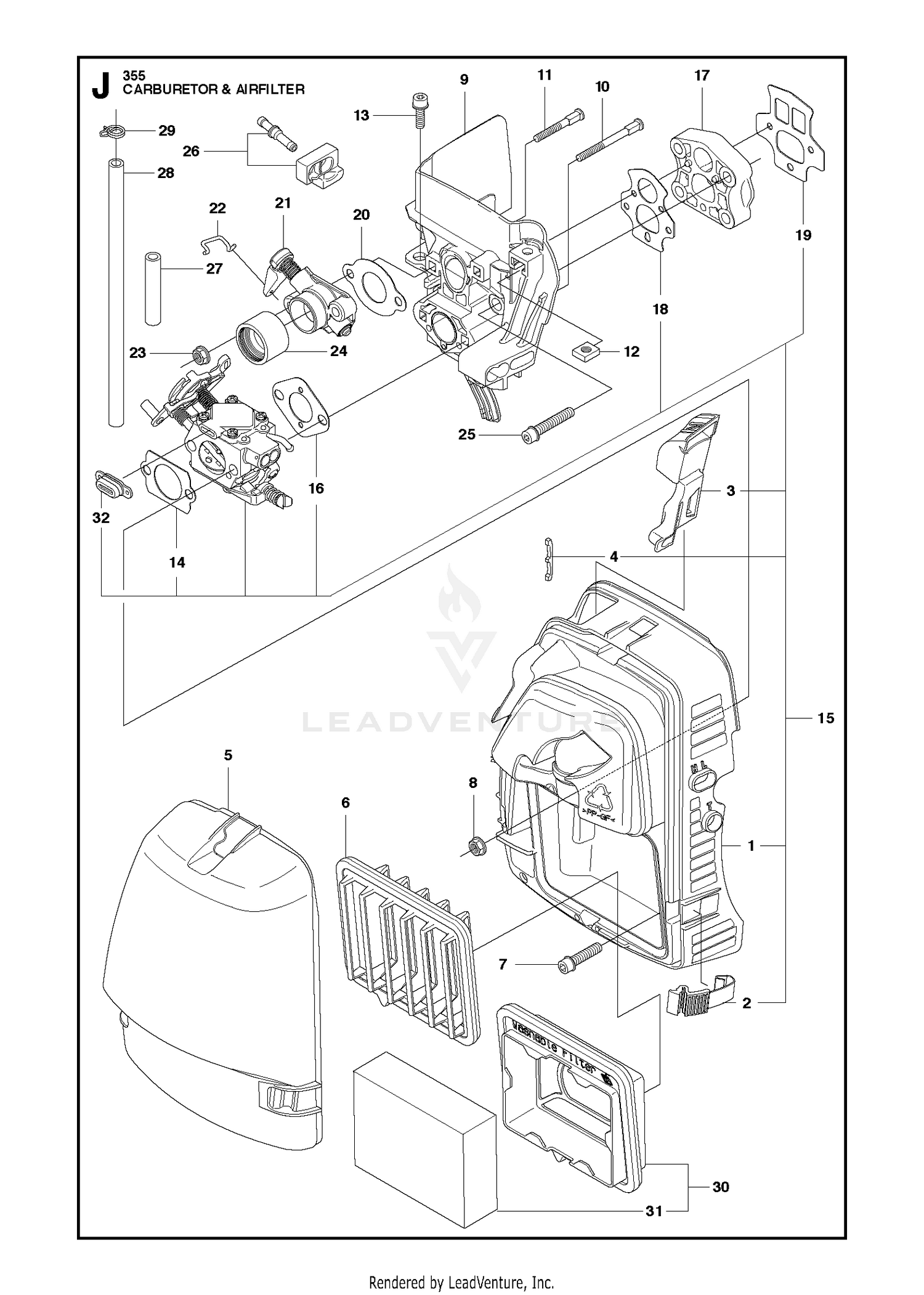

CARBURETOR & AIR FILTER
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 537412503 | FILTER HOLDER ASSY. Price: $29.99 |
| 1 | 82-1590 | SCREW-PAN HEAD Price: $3.56 |
| 2 | 503740102 | HOLDER Price: $9.99 |
| 2 | 82-0620 | GUARD-STATIONARY Price: $122.91 |
| 3 | 537352601 | CHOKE CONTROL Price: $5.99 |
| 3 | 92-0948 | HOUSING-BLOWER Price: $1,194.38 |
| 4 | 537387801 | GROMMET Price: $5.99 |
| 4 | 59-1100 | SCREW-HWH Price: $3.53 |
| 5 | 537410102 | FILTER COVER This part replaces 537410101. Price: $17.99 |
| 5 | 72-3900 | SCREW-TAPPING Price: $5.90 |
| 6 | 57-9190 | CLIP Price: $5.22 |
| 7 | 503200776 | SCREW Price: $3.99 |
| 7 | 57-9150 | BRACKET-GOVERNOR Price: $23.13 |
| 8 | 59-1010 | SCREW-HWH Price: $1.32 |
| 8 | 731711451 | NUT Price: $2.99 |
| 9 | 537350401 | INSULATION WALL Price: $14.99 |
| 9 | 59-1030 | SCREW-TAP Price: $2.80 |
| 10 | 503988101 | BOLT Price: $3.99 |
| 10 | 59-0430 | SPRING Price: $5.57 |
| 11 | 503988104 | SCREW Price: $1.13 |
| 11 | 57-9140 | ARM Price: $28.76 |
| 12 | 503226504 | NUT Price: $4.99 |
| 12 | 57-9120 | BUSHING Price: $7.21 |
| 13 | 503200776 | SCREW Price: $3.99 |
| 13 | 59-0830 | WASHER-FLAT Price: $4.99 |
| 14 | 544429901 | GASKET Price: $3.99 |
| 14 | 82-1600 | SCREW-HWH Price: $5.22 |
| 15 | 92-0949 | DISCONTINUED Price: Call Us |
| 16 | 510043701 | GASKET Price: $3.99 |
| 16 | 59-0830 | WASHER-FLAT Price: $4.99 |
| 17 | 544043301 | MANIFOLD Price: $11.99 |
| 17 | 59-0980 | SCREW-HH Price: $2.95 |
| 18 | 544043001 | GASKET Price: $3.99 |
| 18 | 57-9100 | DISCONTINUED Price: Call Us |
| 19 | 544043101 | GASKET Price: $3.99 |
| 19 | 59-1080 | SCREW-HWH Price: $5.24 |
| 20 | 544160801 | GASKET Price: $3.99 |
| 20 | 71-6080 | BRACKET-LIFTING Price: $23.76 |
| 21 | 544214001 | VALVE HOUSING Price: $19.99 |
| 21 | 92-0950 | DISCONTINUED Price: Call Us |
| 22 | 544847801 | LINK Price: $4.99 |
| 23 | 731711451 | NUT Price: $2.99 |
| 23 | 82-1580 | DECAL-HEAD BOLT, TORQUE Price: Call Us |
| 24 | 537410501 | INLET PIPE Price: $5.99 |
| 24 | 59-1080 | SCREW-HWH Price: $5.24 |
| 25 | 117-2742 | VOLTAGE REGULATOR KIT This part replaces 71-6030. Price: $222.87 |
| 25 | 503200780 | SCREW IHSCFM Price: $3.99 |
| 26 | 82-1540 | SCREW-HWH Price: $3.56 |
| 27 | 581756140 | SUCTION HOSE This part replaces 537425802. Price: $4.99 |
| 27 | 71-6220 | CLIP-WIRE Price: $3.18 |
| 28 | 581756114 | FUEL HOSE This part replaces 544324914. Price: $4.99 |
| 28 | 59-0820 | WASHER-FLAT Price: $4.76 |
| 29 | 544348601 | HOSE CLAMP Price: $4.99 |
| 31 | 505031003 | FILTER This part replaces 505031002. Price: $9.99 |
| 32 | 577969301 | SEALING PLUG Price: $3.99 |
