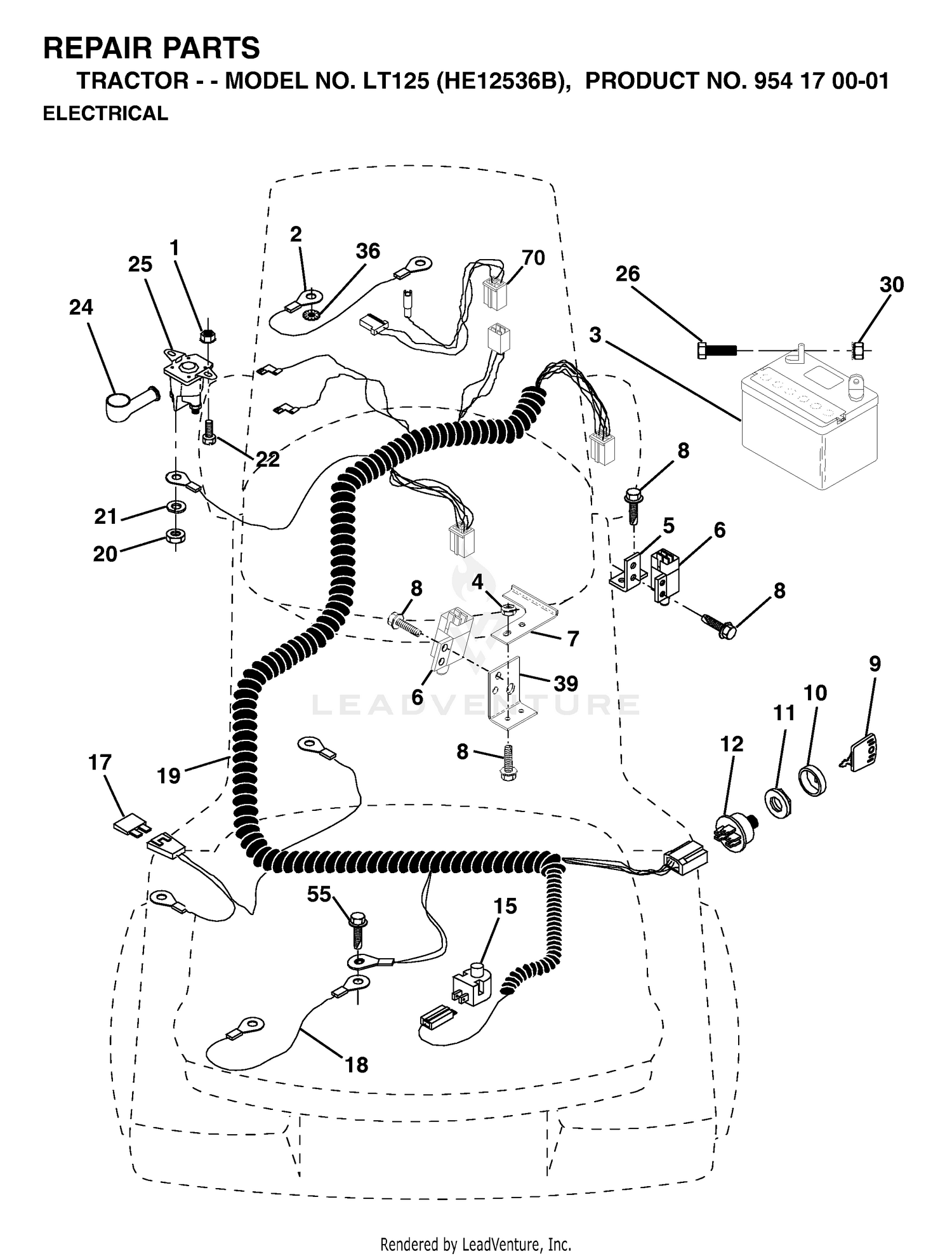

| Ref | Part Number | Description |
|---|
| 1 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 1 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 2 |
110-0906-01 |
SUPPORT-FILTER, OIL Price: $44.96 |
| 2 |
532108423 |
CABLE.BATTERY.6GA.16"RED Price: $6.99 |
| 3 |
108-1710 |
TUBE ASM Price: $85.53 |
| 3 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532146138. Price: $149.99 |
| 4 |
108-1711 |
TUBE-HYD Price: $111.99 |
| 4 |
532069180 |
LOCKNUT Price: $2.99 |
| 5 |
108-1712 |
TUBE ASM Price: $112.47 |
| 5 |
532108236 |
BRACKET LT Price: $2.99 |
| 6 |
108-1713 |
TUBE ASM Price: $134.99 |
| 6 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 7 |
121-5601 |
TUBE-HYD Price: $98.35 |
| 7 |
532146374 |
KEEPER, ACTUAT. L.R. Price: $2.38 |
| 8 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 8 |
817021008 |
SCREW Price: $3.99 |
| 9 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 9 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 10 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 11 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 11 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 12 |
532158913 |
KIT.SWITCH.IGNITION This part replaces 532144921. Price: $39.99 |
| 12 |
86-3010 |
FILTER-OIL Price: $15.80 |
| 13 |
117-5820 |
HEAD-FILTER Price: $95.88 |
| 14 |
100-4240 |
FITTING-STR Price: $14.09 |
| 15 |
340-70 |
NUT-LOCK Price: $2.10 |
| 15 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 16 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 17 |
110-9019 |
TUBE-HYD Price: $97.78 |
| 17 |
532108824 |
FUSE HYT Price: $4.99 |
| 18 |
110-9020 |
TUBE-HYD Price: $95.57 |
| 18 |
532128353 |
CABLE ASSY Price: $3.99 |
| 19 |
340-154 |
UNION-BULKHEAD Price: $44.48 |
| 19 |
532146063 |
HARNESS, IGN FEND Price: $74.13 |
| 20 |
110-0928 |
HOSE-HYD Price: $87.44 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 22 |
110-9035 |
HYD CYLINDER ASM Price: $662.44 |
| 23 |
106-6895-03 |
BALL JOINT ASM Price: $258.08 |
| 24 |
106-6774 |
JOINT-BALL Price: $79.04 |
| 24 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 25 |
32151-104 |
RING-RETAINING, EXTERNAL Price: $4.85 |
| 25 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 26 |
3220-6 |
NUT-JAM Price: $1.25 |
| 26 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 27 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 27 |
69-8980 |
WASHER Price: $0.58 |
| 28 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 28 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 29 |
110-0973 |
HOSE-HYD Price: $84.41 |
| 30 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 30 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 33 |
354-79 |
CAP-DUST Price: $7.81 |
| 36 |
811150400 |
Washer, Lock, Internal Tooth 1/4 Price: $2.99 |
| 39 |
532141735 |
BRACKET Price: $2.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 70 |
532140413 |
HARNESS, ENGINE Price: $14.99 |
