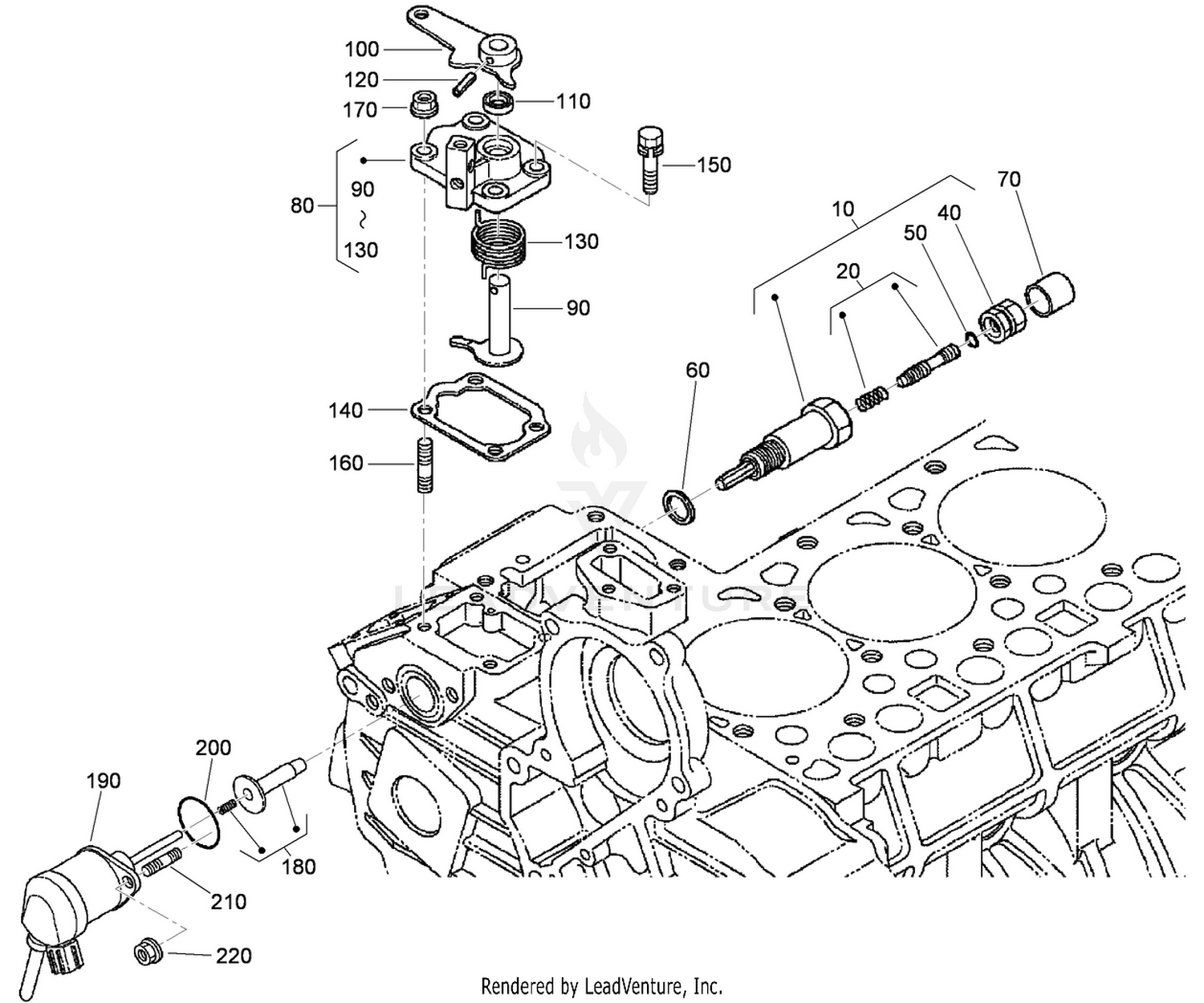

Idle Apparatus and Stop Solenoid Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 115-8567 | APPARATUS-IDLING Price: $125.35 |
| 20 | 115-8568 | ADJUSTMENT BOLT ASM Price: $4.24 |
| 40 | 115-8569 | NUT-SPRING Price: $7.41 |
| 50 | 115-8570 | O-RING Price: $0.97 |
| 60 | 115-8571 | GASKET Price: $1.63 |
| 70 | 115-8572 | CAP Price: $9.99 |
| 80 | 115-8573 | ENGINE STOP LEVER ASM Price: $89.61 |
| 90 | 115-8574 | LEVER-STOP Price: $15.42 |
| 100 | 115-8575 | LEVER-STOP, ENGINE Price: $16.27 |
| 110 | 115-8576 | SEAL-OIL Price: $5.01 |
| 120 | 98-7602 | PIN-SPRING Price: $0.64 |
| 130 | 115-8593 | SPRING-RETURN Price: $9.11 |
| 140 | 115-8578 | GASKET-PLATE Price: $4.14 |
| 150 | 98-7568 | BOLT Price: $0.84 |
| 160 | 98-7571 | STUD Price: $2.00 |
| 170 | 100-2203 | NUT-FLANGE Price: $0.87 |
| 180 | 115-8579 | GUIDE-SOLENOID Price: $15.15 |
| 190 | 115-8580 | SOLENOID ASM Price: $349.77 |
| 200 | 110-3762 | O-RING Price: $3.79 |
| 210 | 98-7571 | STUD Price: $2.00 |
