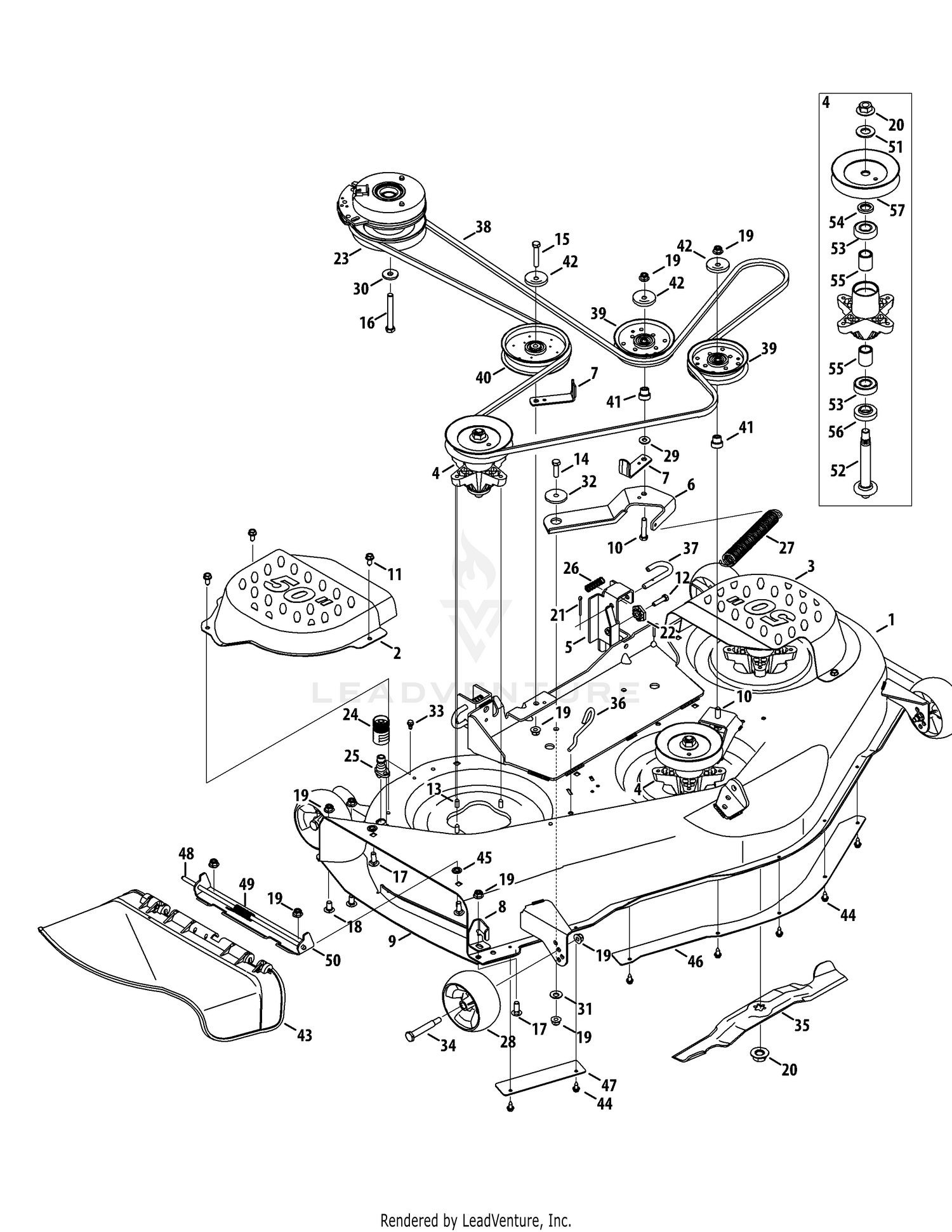

| Ref | Part Number | Description |
|---|
| 2 |
603-04947-4021 |
Belt Cover, RH Not Available This part replaces 603-04947-4033. Price: |
| 3 |
603-04948-4033 |
BELT COVER ASSEMBLY (LH) (FLINT MICA) Not Available Price: |
| 4 |
918-04125C |
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG This part replaces 918-04125B. Price: $123.95 |
| 5 |
683-05124-0637 |
Deck Lift Bracket Not Available This part replaces 683-05124-4033. Price: |
| 6 |
703-05825C-0637 |
Idler Arm This part replaces 703-05825C-4033. Price: $47.55 |
| 7 |
703-09583-0637 |
Bracket Belt Guard Price: $12.21 |
| 8 |
703-3279 |
Stop Bracket Price: $35.25 |
| 9 |
703-3511B-0637 |
Finger Guard Price: $61.47 |
| 10 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 11 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 12 |
710-0573 |
Hex Cap Screw, 5/16-18 x 1.25 Price: $5.53 |
| 13 |
710-1260A |
Hex Washer Screw, 5/16-18 x .750 Price: $3.34 |
| 14 |
710-3005 |
Hex Cap Screw, 3/8-16 x 1.25 Price: $3.61 |
| 15 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 Price: $4.02 |
| 16 |
710-3157A |
Screw, 7/16-20 x 3.25 Price: $9.67 |
| 17 |
710-3168 |
Carriage Screw, 3/8-16 x 1.00 Price: $3.61 |
| 18 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 19 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 20 |
712-0417A |
HEX NUT Price: $6.50 |
| 21 |
714-0162 |
Cotter Pin, 5/32 x 1.25 Price: $4.29 |
| 22 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 23 |
917-05122A |
Electric PTO Clutch Price: $453.12 |
| 24 |
921-04041 |
Water Nozzle Adapter Price: $20.19 |
| 25 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 26 |
932-3127 |
Compression Spring, .66 x 1.9 Price: $3.82 |
| 27 |
732-04927 |
Extension Spring, 1.25 OD x 1.751 Price: $19.91 |
| 28 |
734-04155 |
Deck Ball Wheel, 5.0 Price: $19.04 |
| 29 |
736-0262 |
Flat Washer, .385 x .870 x .092 Price: $3.66 |
| 30 |
736-0322 |
Flat Washer, .450 x 1.25 x .164 Price: $8.42 |
| 31 |
736-0407 |
Bell Washer, .45 x 1.0 x .062 Price: $3.64 |
| 32 |
738-04162C |
Shoulder Spacer, .884 x .190 Price: $12.76 |
| 33 |
738-04278 |
Shoulder Screw, .500 x 1/4-20 Price: $5.99 |
| 34 |
938-3056 |
Shoulder Screw, .5 x 2.5 x 3/8-16 Price: $8.53 |
| 35 |
942-04053C |
Blade, 2 in 1, 17.9 Price: $26.85 |
| 36 |
747-05608A |
DECK SPRING HOOK This part replaces 747-05608. Price: $2.94 |
| 37 |
747-06292 |
Deck Hanger Rod Price: $10.24 |
| 38 |
954-05008 |
V-Belt Price: $71.19 |
| 39 |
756-05042 |
Idler Pulley, 4.25 Dia Price: $25.54 |
| 40 |
756-04511B |
Idler Pulley, 5.00 Dia. Price: $49.33 |
| 41 |
748-05029A |
Shoulder Spacer Idler This part replaces 748-05029. Price: $4.19 |
| 42 |
783-08389 |
Pulley Cap Price: $5.23 |
| 43 |
631-05058 |
Discharge Chute Assembly This part replaces 631-05162. Price: $55.87 |
| 44 |
710-1652 |
Hex Washer Screw, 1/4-20 x .625 Price: $3.86 |
| 45 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 46 |
783-04414A |
Deck Skirt, Center This part replaces 783-04414A-4033. Price: $28.73 |
| 47 |
783-04415-0637 |
RH Skirt This part replaces 783-04415-4033. Price: $26.98 |
| 48 |
711-04565 |
Hinge Pin Price: $13.59 |
| 49 |
732-04372 |
Torsion Spring Price: $8.93 |
| 50 |
703-09623 |
Chute Bracket Not Available Price: |
| 51 |
736-0315 |
Flat Washer, .76 x 1.50 x .12 Price: $5.94 |
| 52 |
738-1010A |
Spindle Shaft, 5.75 Price: $43.21 |
| 53 |
741P0919B |
BALL BEARING This part replaces 941-0919A. Price: $18.90 |
| 54 |
748-0160A |
Spacer, .79 x 1.25 x .175 Price: $5.87 |
| 55 |
750-1000 |
Spacer, .80 x 1.10 x 1.32 Price: $3.90 |
| 56 |
750-1349A |
Spacer, .79 x 1.82 x .55 Price: $12.22 |
