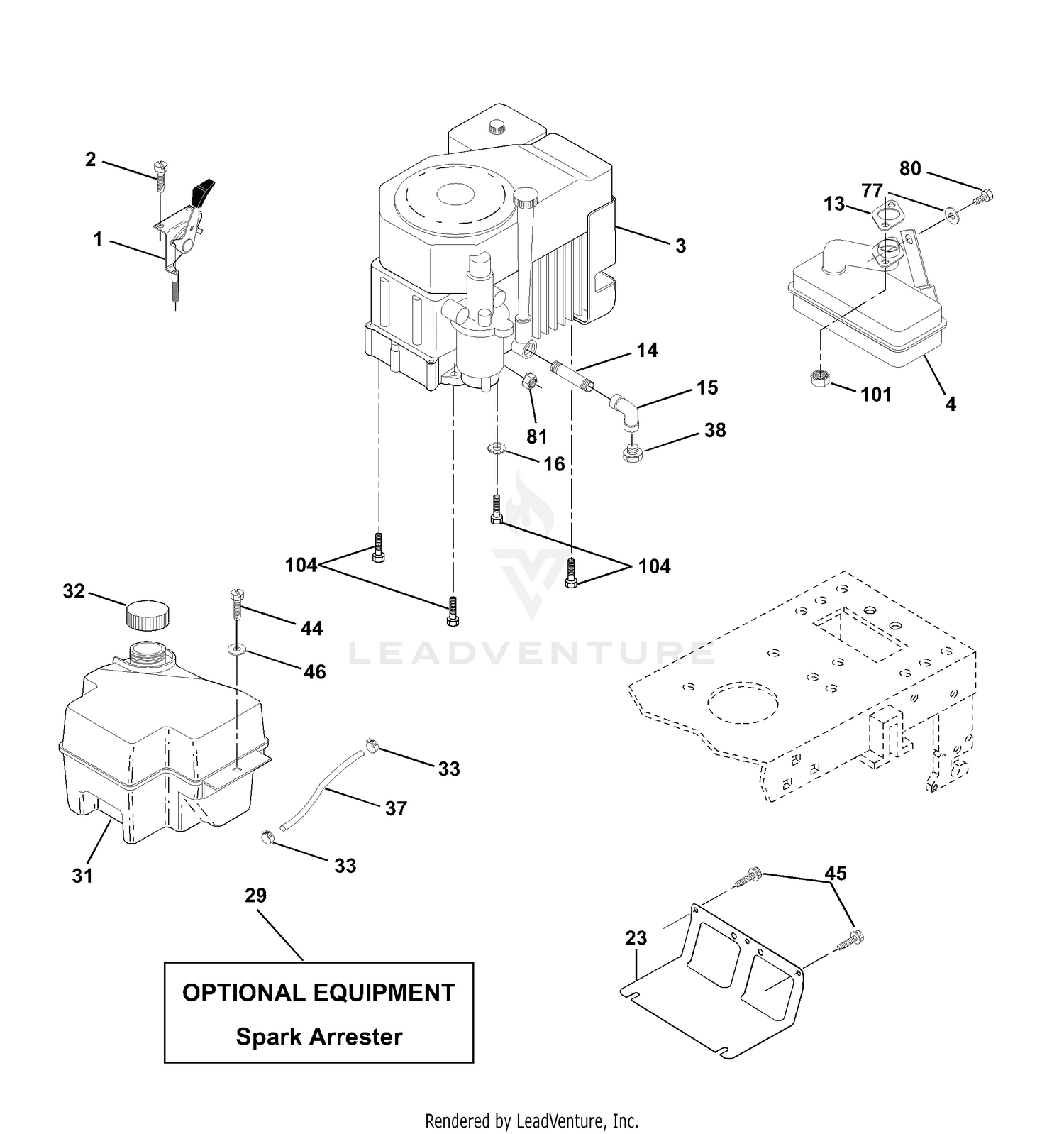

Engine

Engine

Parts (78)

RefPart NumberDescription
1 32120-8 RING-SNAP Price: $1.76
1 532170805 CONTROL.THROTTLE.LT/YT This part replaces 532141296. Price: $27.99
2 596582501 Bolts This part replaces 532171192. Price: $2.99
2 72-3750 BEARING-ROLLER Price: $180.02
3 119-4162 SCREW-CARR This part replaces 323-13. Price: $1.73
4 532159420 MUFFLER.KOHL.CV.SINGLE.W/PORT Price: $99.99
4 67-9080 HOUSING-MOTOR Price: $1,756.34
5 48-1800 CYLINDER BLOCK KIT Price: $1,923.22
6 25-2650 PLUG-VALVE, CHECK Price: $89.01
7 237-86 O-RING Price: $5.47
8 25-2640 SPRING-VALVE Price: $4.22
9 25-2490 BALL Price: $14.47
10 67-9100 GASKET Price: $15.83
11 99-5689 CHECK VALVE KIT This part replaces 25-3180. Price: $83.29
12 285-17 PLUG-PIPE Price: $2.59
13 237-22 O-RING Price: $2.43
13 532163831 KOHLER GASKET Price: $3.30
14 25-2630 RING-BACK UP Price: $3.55
14 813280328 Nipple Pipe 3/8 NPT X 3 - 1/2 This part replaces 532171373. Price: $4.99
15 532428287 VALUE.OIL.DRAIN This part replaces 532171215. Price: $14.99
15 88-8220 VALVE-BY PASS This part replaces 25-2620. Price: $189.03
16 25-2610 SPRING-VALVE Price: $29.42
16 596238701 Washers This part replaces 532171217. Price: $3.99
17 25-2410 VALVE ASM Price: $514.54
18 76-1900 O-RING Price: $3.64
19 353-550 PLUG-HYD, HH Price: $10.71
20 119-2895 SPLINED SHAFT KIT This part replaces 67-8020. Price: $1,116.09
21 3257-32 KEY-WOODRUFF Price: $2.52
22 117-2700 HOUSING KIT This part replaces 54-7890. Price: $2,321.28
23 252-82 BEARING-NEEDLE Price: $51.31
23 531150701 SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99
24 25-3210 SEAL-LIP Price: $23.14
25 25-2510 WASHER-FLAT Price: $2.41
26 25-2580 SHAFT-TRUNNION Price: $215.33
27 32151-46 RING-RETAINING Price: $8.38
28 25-2460 PLUG-HH Price: $37.38
29 25-2470 PACK-SHIM Price: $47.36
29 532137180 KIT.SPARK ARRESTOR 794945 B&S Price: $109.99
30 25-2570 SPRING-VALVE Price: $12.67
31 532180645 GAS TANK 2GAL This part replaces 532161911. Price: $59.99
31 83-7260 CONE-RELIEF, CHARGE This part replaces 25-2560. Price: $50.57
32 353-551 PLUG-HH Price: $18.48
32 581075501 CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99
33 237-80 O-RING Price: $6.10
33 532123487 HOSE CLAMP Price: $3.99
34 25-2550 DISCONTINUED-SEE PB#945 Price: Call Us
35 67-8050 BEARING-NEEDLE Price: $54.10
36 93-4133 SEAL-LIP This part replaces 67-8060. Price: $37.43
37 322-4 SCREW-HH Price: $0.35
37 587044820 HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99
38 25-2680 GEROTOR ASM Price: $651.02
39 25-2530 PIN-STRAIGHT, HEADLESS Price: $21.24
40 25-3190 DISCONTINUED-SEE PB#945 Price: Call Us
41 237-95 O-RING Price: $11.97
42 67-9090 PLUG Price: $41.68
43 25-2500 SHAFT-TRUNNION Price: $191.66
44 25-2480 SPRING-VALVE Price: $4.93
44 532171239 Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us
45 32120-15 RING-SNAP, EXT Price: $1.20
45 817000612 SCREW, 3/8-16X3/4 This part replaces 532171154. Price: $3.99
46 251-8 BEARING-BALL Price: $30.06
46 596135301 Washers This part replaces 532171224. Price: $2.99
47 32151-75 RING-RETAINING This part replaces 32120-11. Price: $2.51
48 25-2450 PLATE-SWASH, VARIABLE Price: $896.81
49 32121-91 PIN-SPRING Price: $0.81
50 25-2380 PLATE-THRUST Price: $32.89
51 25-2440 PLATE-VALVE, PUMP Price: $491.90
52 25-2430 PIN-DOWEL Price: $0.95
53 110-6341 BEARING-ROLLER This part replaces 46-8400. Price: $41.33
54 93-4132 O-RING This part replaces 62-4290. Price: $6.84
55 25-2420 DISCONTINUED X-REF Price: Call Us
57 25-2390 PLATE-VALVE, MOTOR Price: $832.97
58 46-8410 SHAFT-MOTOR Price: $968.23
59 25-2400 GASKET Price: $19.26
77 734115441 WASHER - 26X6.5X1.6 This part replaces 532171372. Price: $0.99
80 874760508 Bolt Hex Hd 5/16-18 UNC x 1/2 This part replaces 532171371. Price: $3.99
81 532050675 NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99
101 596433401 Nuts This part replaces 532163305. Price: $2.99
