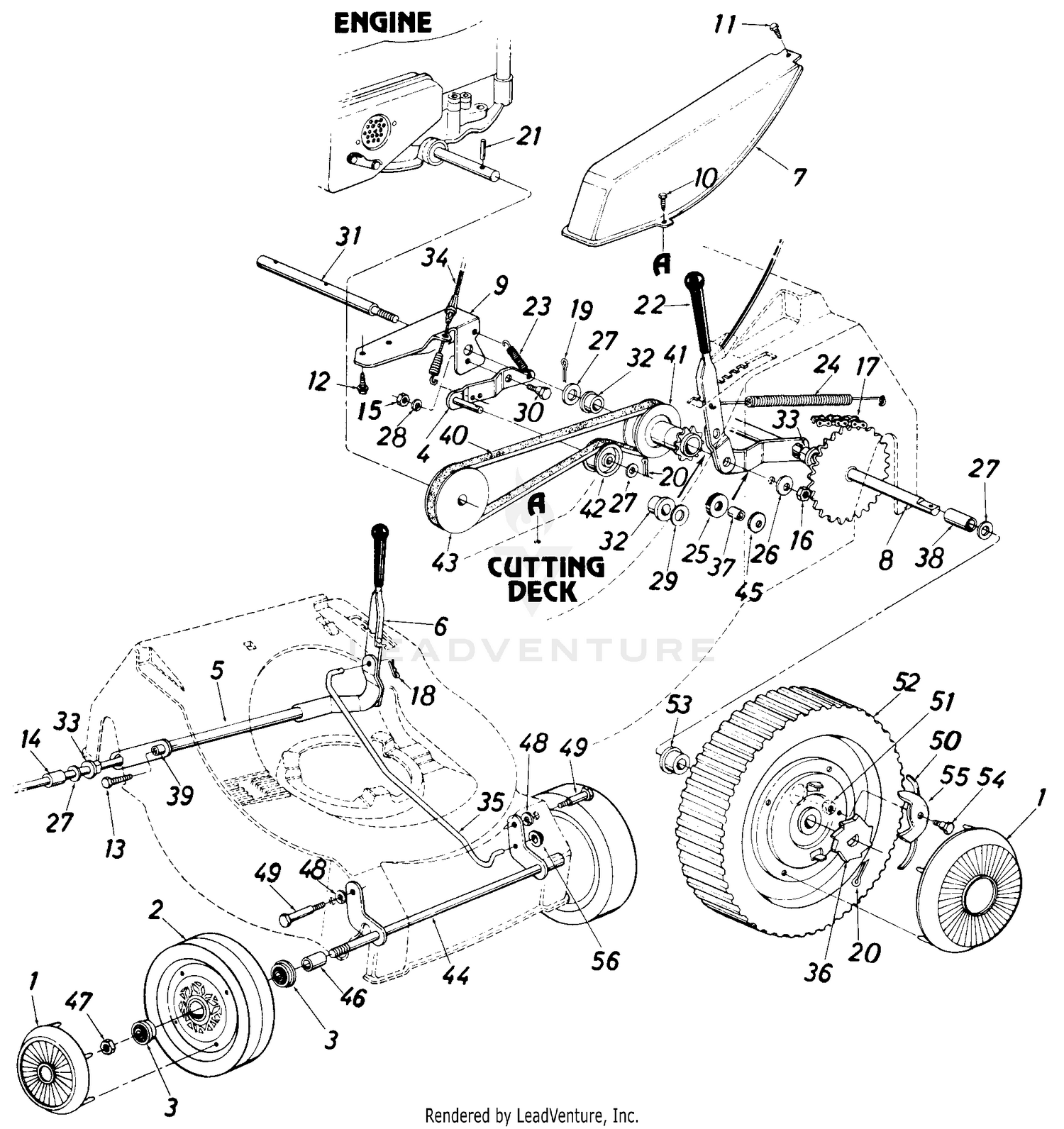

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
Hub Cap |
| 2 |
734-0874 |
WHEEL ASS'Y. COMP. (WAFFLE TREAD) Not Available Price: |
| 3 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 4 |
13415 |
BRACKET AS Not Available Price: |
| 5 |
15244 |
Axle Ass'y. Price: $20.00 |
| 6 |
15246 |
HANDLE-HT Not Available Price: |
| 7 |
15247 |
Belt Cover Price: Call Us |
| 8 |
15249 |
SHAFT ASSEMBLY Not Available Price: |
| 9 |
15250 |
Bracket-Pulley Shaft Price: Call Us |
| 10 |
710-0352 |
Hex B-Tap Scr. 1/4 x .38" Lg. Price: $4.05 |
| 11 |
710-0456 |
HEX SCREW #10-16 x 0.500 Not Available Price: |
| 12 |
710-0603 |
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .50" Lg. Price: $4.19 |
| 13 |
710-0654A |
TT Screw, 3/8-16 x 1.00 This part replaces 710-0654. Price: $3.75 |
| 14 |
711-0500 |
SLEEVE Not Available Price: |
| 15 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 16 |
912-3008 |
Jam Nut, 3/8-16 This part replaces 712-0342. Price: $4.08 |
| 18 |
714-0104 |
Intern. Cot. Pin 5/16" Dia. Price: $3.90 |
| 19 |
714-0111 |
Cotter Pin 3132" Dia. x 1.00" Lg.* Price: $4.20 |
| 20 |
714-0115 |
Cot Pin 118" Dia. x 1.00" Lg. Price: $3.48 |
| 21 |
715-0144 |
SPIROL PIN Not Available Price: |
| 22 |
720-0143 |
GRIP Not Available Price: |
| 23 |
732-0357A |
Extension Spring .33 OD x 1.12 Lg. This part replaces 732-0357. Price: $3.94 |
| 24 |
732-0428B |
Spring, extension, .50 Od x 4.35 This part replaces 732-0428. Price: $10.47 |
| 25 |
735-0144 |
RUBBER WASHER Not Available Price: |
| 26 |
736-0105 |
Bell-Wash. .400" I.D. x .88" O.D. Price: $3.96 |
| 27 |
736-0160 |
Fl-Wash. .531" I .D. x .930 "O.D. Price: $3.90 |
| 28 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 29 |
736-0344 |
Fl-Wash. 390" I.D. x 1.00" O.D. Price: $4.13 |
| 30 |
938-0255 |
SHOULDER SCREW This part replaces 738-0255. Price: $4.53 |
| 31 |
738-0501 |
SHAFT-PULLEY Not Available Price: |
| 32 |
741-0248 |
Flange Brg. .506" I.D. Plastic Price: $7.99 |
| 33 |
741-0324A |
Flge Bearing .506 ID x .590 Lg This part replaces 741-0324. Price: $7.07 |
| 34 |
746-0463 |
CABLE-CLUTCH Not Available Price: |
| 35 |
747-0351 |
Linkage Rod .38" Dia. Price: Call Us |
| 36 |
748-0187 |
RACHET-WHEEL Not Available Price: |
| 37 |
950-0503 |
SPACER Not Available This part replaces 750-0503. Price: |
| 38 |
750-0506 |
SPACER Not Available Price: |
| 39 |
750-0526 |
Spacer.385" I.D. x .503" O.D. x.270" Lg. Price: $3.96 |
| 40 |
754-0252 |
V-BELT 1/2 x 33 Not Available Price: |
| 41 |
756-0191 |
PULLEY W/S Not Available Price: |
| 42 |
756-0360 |
FLAT IDLER PULLEY Not Available Price: |
| 43 |
756-0384 |
PULLEY Not Available Price: |
| 44 |
10662 |
Front Axle Ass'y. Price: Call Us |
| 45 |
936-0219 |
Bell-Wash. .400" I.D. x 1.13" O.D. This part replaces 736-0219. Price: $3.86 |
| 46 |
711-0313 |
SLEEVE Not Available Price: |
| 47 |
712-0200A |
Hex Ins. L-Nut 1/2-20 Thd. This part replaces 712-0200. Price: $3.85 |
| 48 |
736-0221 |
LOCK WASHER 3/8 X.56 OD Not Available Price: |
| 49 |
738-0149 |
SHOULDER SCREW Not Available Price: |
| 50 |
10622B |
Spring - Nylon Not Available This part replaces 10622. Price: |
| 51 |
712-0324 |
Hex Ins. L-Nut 1/4-20 Thd. Price: $3.38 |
| 52 |
734-1051 |
Wheel Ass'y. Comp. 9.25 x 1.75 Rear Price: Call Us |
| 53 |
941-0180 |
BALL BEARING Not Available This part replaces 741-0180. Price: |
| 54 |
738-0137 |
BOLT, SHOULDER, 1/4-20 x 2.65 LG Not Available Price: |
| 55 |
948-0188B |
PAWL - (LH) Not Available This part replaces 748-0188. Price: |
