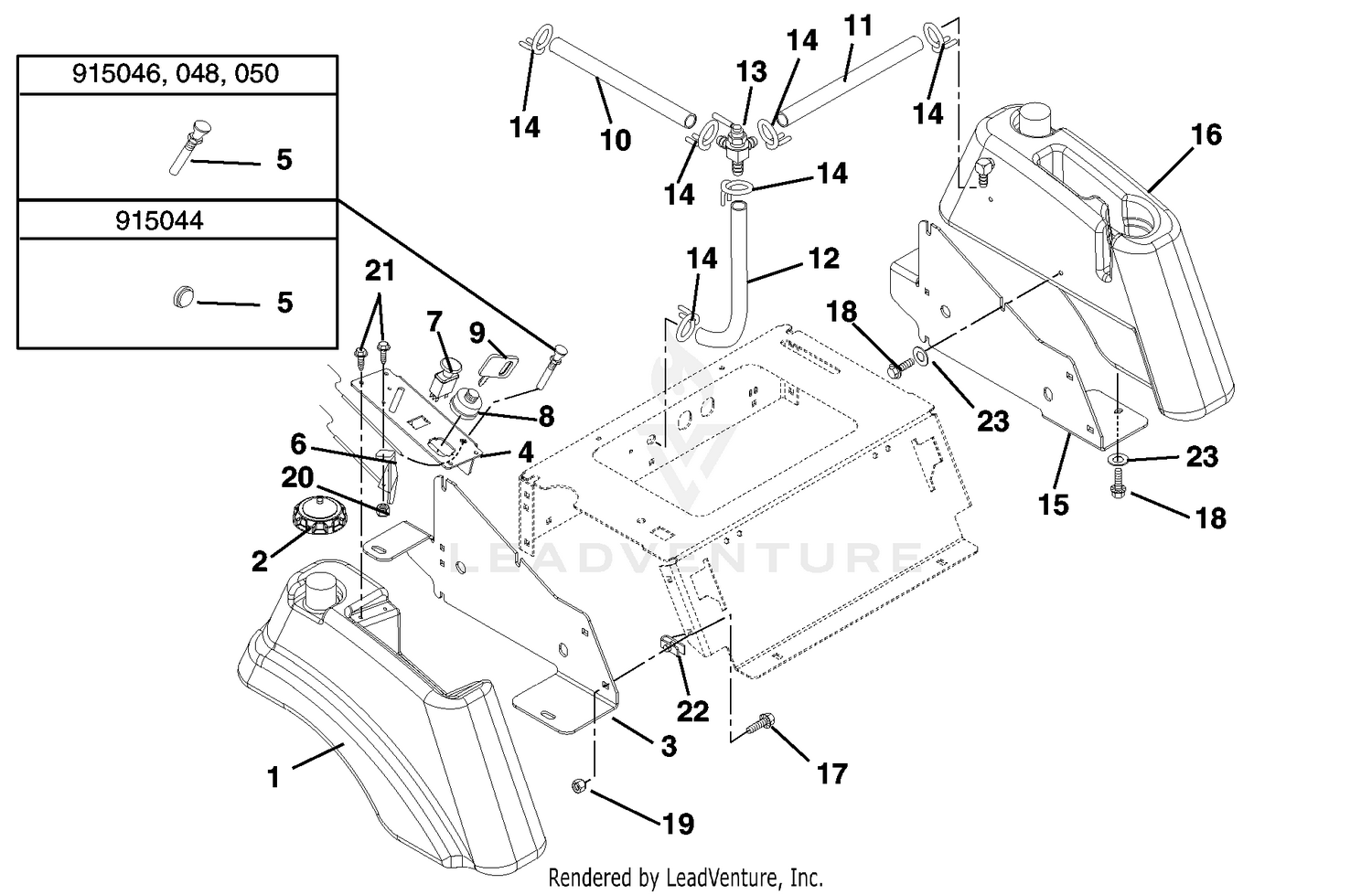

| Ref | Part Number | Description |
|---|
| NS |
07511400 |
BSHG-FLG .375 X 1.062 X .625 R Price: $3.45 |
| 1 |
01575800 |
FUEL TANK - RH Price: $274.95 |
| 2 |
01538400 |
FUEL CAP Price: $14.45 |
| 3 |
01578751 |
SEAT PLATE/TANK SUPPORT RH Price: $38.45 |
| 4 |
01579451 |
BKT-CONTROL Price: $42.50 |
| 7 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 8 |
01588300 |
KEY SWITCH Price: $28.95 |
| 9 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 13 |
09258200 |
VALVE, FUEL Price: $42.95 |
| 14 |
06939100 |
CLAMP-HOSE WIRE .490/.510X.116 Price: $3.45 |
| 15 |
01578851 |
SEAT PLATE LH Price: $38.45 |
| 16 |
01575700 |
FUEL TANK - LH Price: $249.95 |
| 16 |
04320900 |
ASM, FUEL PICK-UP SML/MED TANK Price: $35.95 |
| 17 |
06200313 |
BLT, RHSN .38-16X1.00 G5 ZCC This part replaces 06223600. Price: $2.45 |
| 18 |
07049600 |
BLT-SERHFWH .312-18X.75 YWZC Price: $2.45 |
| 19 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 20 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 21 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 22 |
00548400 |
RETAINER, .38 PUSH-ON Price: $1.45 |
