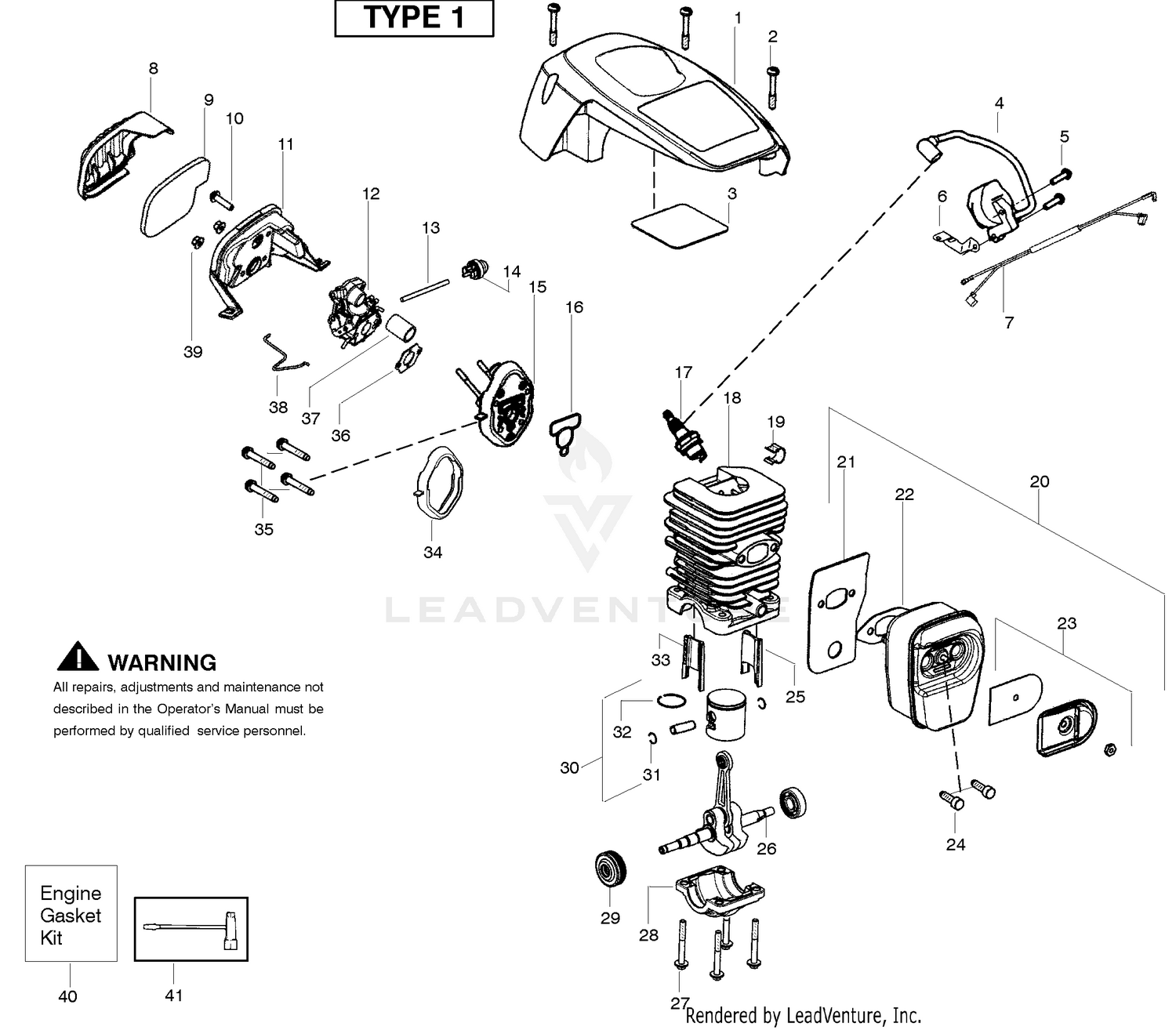

| Ref | Part Number | Description |
|---|
| 0 |
631989 |
SERVICE CARB Price: Call Us |
| 1 |
631830 |
THROTTLE SHAFT Price: $14.54 |
| 2 |
530016153 |
Screw Price: $1.99 |
| 3 |
108-4213 |
BRACKET-HOC, GROOMER (LH) Price: $103.51 |
| 3 |
530059006 |
Reflector-Tape Price: $1.99 |
| 4 |
108-4214 |
BRACKET-HOC, GROOMER (RH) Price: $103.51 |
| 4 |
530039238 |
Module - Ignition Price: $29.99 |
| 5 |
106-3925 |
SHIM-ROLLER (0.25) Price: $5.22 |
| 5 |
530016432 |
Screw Price: $1.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
530047442 |
Strap-Ground Price: $1.99 |
| 6 |
631036 |
SHUTTER Price: $1.20 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 7 |
650506 |
SCREW Price: $0.87 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
530058687 |
Cover-Air Filter Price: $4.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
530057925 |
Filter-Air Price: $0.99 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
530016425 |
Screw Price: $1.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
530057892 |
Housing-Air Filter Price: $4.99 |
| 12 |
545070601 |
Carburetor Zama W-26 This part replaces 530035590. Price: $27.99 |
| 13 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 14 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 15 |
630735 |
SPRING Price: $1.25 |
| 16 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 16 |
632164 |
FUEL FITTING Price: $5.95 |
| 17 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 19 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 20 |
631562 |
ADJ SCREW Price: $3.74 |
| 21 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 21 |
630738 |
SPRING Price: $1.25 |
| 22 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 22 |
630739 |
WASHER Price: $1.25 |
| 23 |
530071886 |
Kit-Spark Arrestor Price: $9.99 |
| 23 |
630740 |
O RING Price: $1.49 |
| 24 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 25 |
545015301 |
Insert-Left (black) Cyl. This part replaces 530057885. Price: $2.99 |
| 26 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99 |
| 27 |
530016417 |
Bolt Price: $1.99 |
| 28 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 29 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 33 |
545015401 |
Insert-Right (gray) Cyl. This part replaces 530057886. Price: $2.99 |
| 34 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 35 |
530016426 |
Screw Price: $1.99 |
| 36 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 37 |
530057926 |
Tube-Intake Price: $1.99 |
| 38 |
530057909 |
Wire-Throttle Price: $1.99 |
| 39 |
530016101 |
Nut-Carb. Price: $1.99 |
| 40 |
630737 |
ADJ SCREW Price: $3.95 |
| 41 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
| 41 |
630740 |
O RING Price: $1.49 |
| 42 |
630739 |
WASHER Price: $1.25 |
| 43 |
630738 |
SPRING Price: $1.25 |
| 47 |
630748 |
WELCH PLUG Price: $1.17 |
| 48 |
632554 |
WELCH PLUG This part replaces 630746. Price: $1.17 |
| 50 |
630978 |
DIAPHRAGM Price: $4.49 |
| 51 |
630750A |
GASKET Price: $3.00 |
| 52 |
630751 |
COVER Price: $8.60 |
| 53 |
650545 |
SCREW Price: $1.20 |
| 55 |
630932A |
INLET NEEDLE Price: $4.39 |
| 56 |
630742 |
GASKET Price: $1.25 |
| 57 |
631049 |
SPRING Price: $1.20 |
