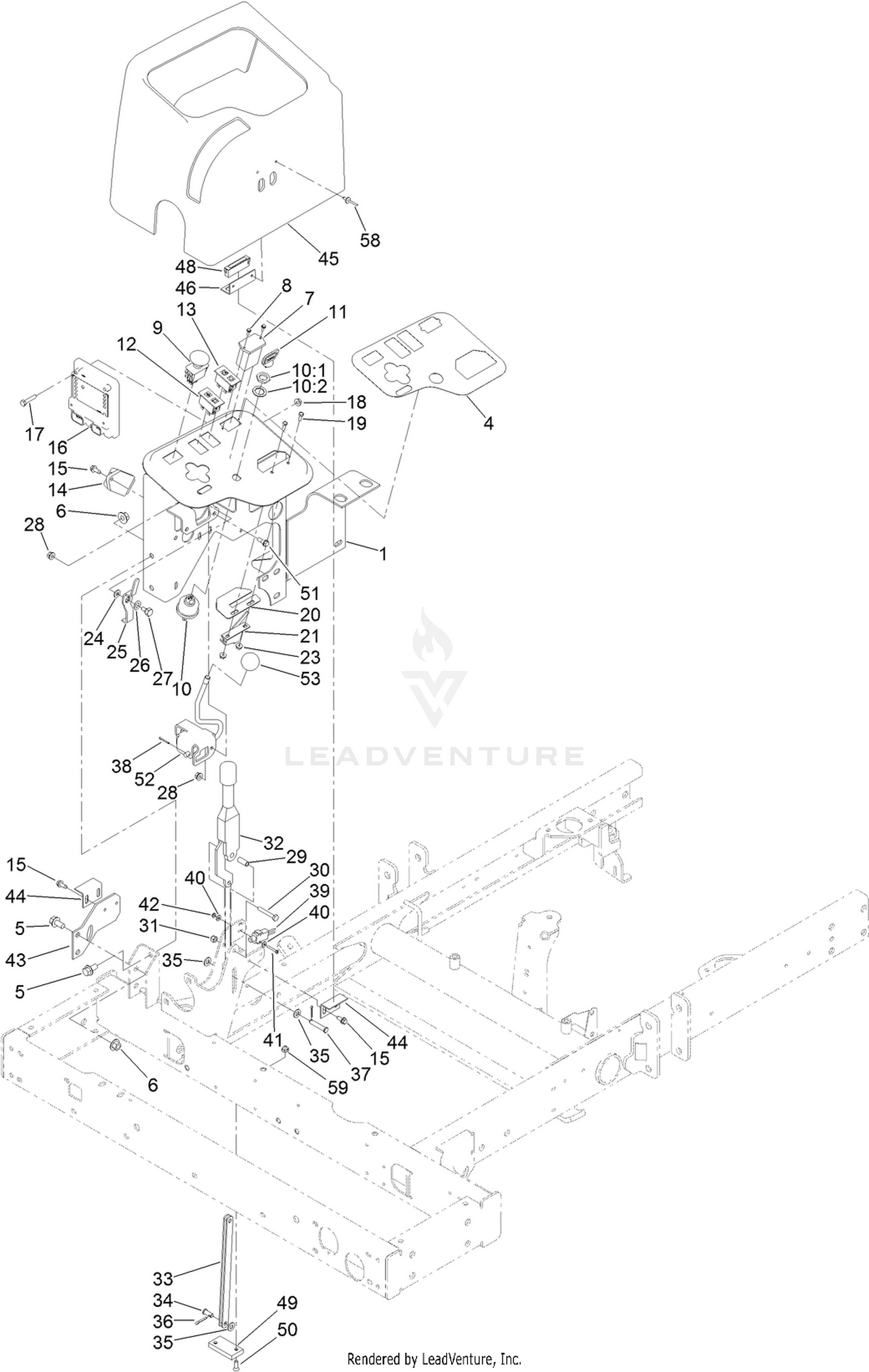

| Ref | Part Number | Description |
|---|
| 1 |
136-3681-03 |
CONTROL PANEL ASM [BLACK] This part replaces 115-3496-03. Price: $346.62 |
| 4 |
121-3619 |
DECAL-CONSOLE Price: $43.68 |
| 5 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 6 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 7 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 8 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 9 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 10 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 11 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 12 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 13 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 14 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 15 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 16 |
106-9277 |
MODULE-CONTROL, STANDARD Price: $475.18 |
| 17 |
321-8 |
SCREW-HH Price: $0.34 |
| 18 |
32128-33 |
NUT-HF Price: $0.25 |
| 19 |
3290-134 |
SCREW Price: $0.27 |
| 20 |
104-0421 |
PLATE-STOP, THROTTLE Price: $15.52 |
| 21 |
138-1224 |
CABLE-THROTTLE Price: $61.87 |
| 23 |
3290-148 |
NUT-HF Price: $0.25 |
| 24 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 25 |
99-3401 |
LEVER-LOCK Price: $7.90 |
| 26 |
3290-477 |
WASHER-CURVED Price: $0.79 |
| 27 |
63-3410 |
SCREW-SHOULDER Price: $3.49 |
| 28 |
32128-32 |
NUT-HHF Price: $2.69 |
| 29 |
87-4710 |
SPACER-BRAKE, PARKING Price: $4.27 |
| 30 |
321-10 |
SCREW-HH Price: $1.29 |
| 31 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 32 |
104-4817 |
LEVER-BRAKE Price: $143.45 |
| 33 |
104-4628 |
LINK-BRAKE, PARKING Price: $18.33 |
| 34 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 35 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 36 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 37 |
94-3829 |
PIN-CLEVIS Price: $2.10 |
| 38 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 39 |
95-8900 |
SWITCH Price: $95.42 |
| 40 |
3256-21 |
WASHER-FLAT Price: $0.25 |
| 41 |
32105-9 |
SCREW Price: $0.54 |
| 42 |
3296-9 |
NUT-HEX Price: $0.25 |
| 43 |
95-8764-0P |
SUPPORT-MAGNET This part replaces 95-8764-03. Price: $35.03 |
| 44 |
95-8765 |
BRACKET-STRIKE, MAGNET Price: $9.32 |
| 45 |
95-8707 |
COVER-DASH Price: $194.77 |
| 46 |
95-8763 |
BRACKET-HOLD DOWN, COVER Price: $13.94 |
| 48 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 49 |
95-8684 |
PAD-BUMPER Price: $27.13 |
| 50 |
3289-4 |
SCREW-FH Price: $3.27 |
| 51 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 52 |
95-8692 |
LEVER ASM Price: $122.81 |
| 53 |
233-42 |
KNOB Price: $12.88 |
| 58 |
3269-5 |
RIVET-POP Price: $1.29 |
| 59 |
104-7201 |
NUT-HF Price: $0.69 |
