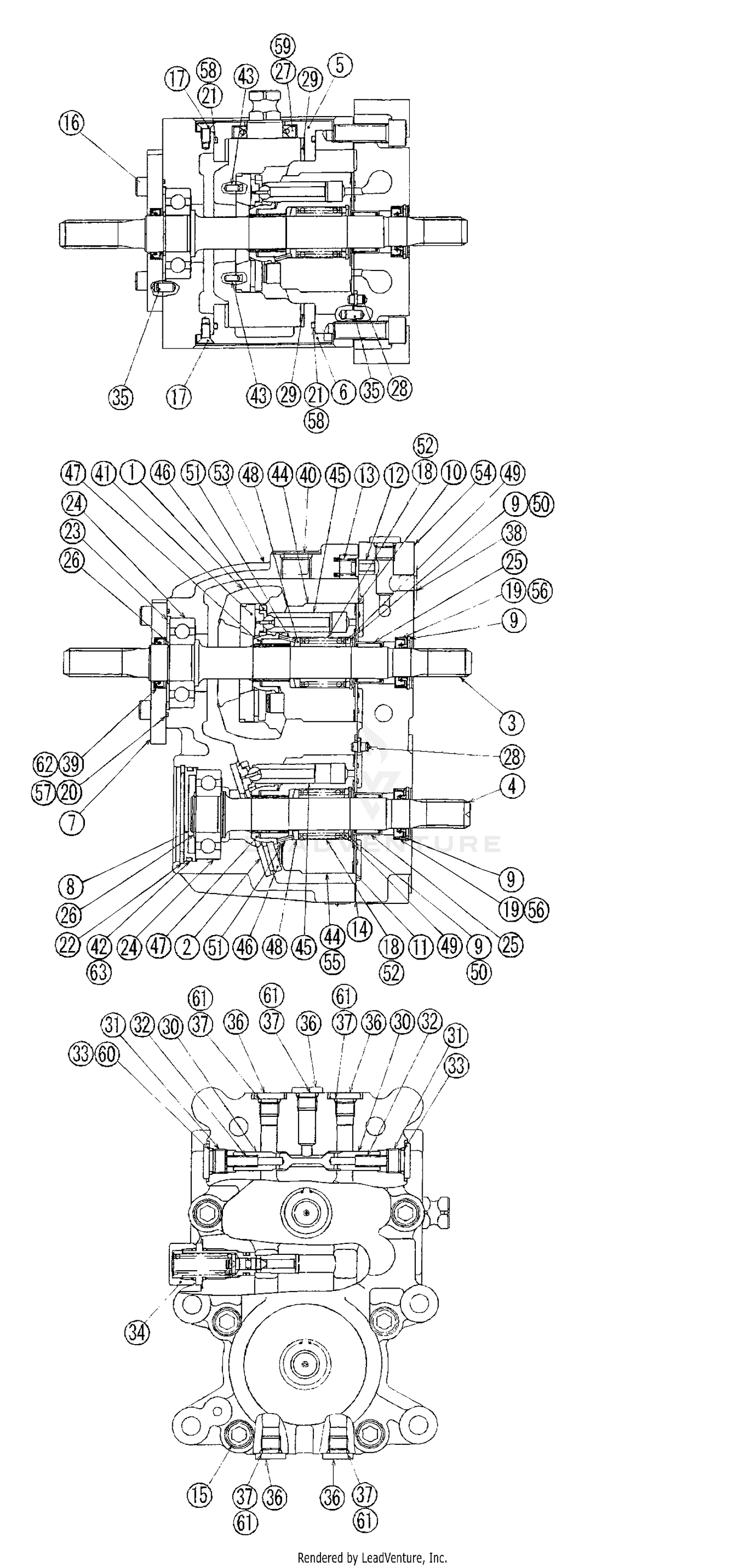

HST Assembly
Parts (92)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 123634X | CONTROL ASSY Price: Call Us |
| 1 | 94-7148 | HUB ASM Price: $205.34 |
| 1 | MA-19571301150 | PLATE-SWASH Not Available Price: |
| 2 | 19092016 | WASHER Price: Call Us |
| 2 | 3272-15 | PIN-COTTER Price: $0.47 |
| 2 | MA-19641301170 | PLATE,THRUST Not Available Price: |
| 3 | 10040400 | LOCKWASHER Price: Call Us |
| 3 | 3217-9 | NUT-HH Price: $0.37 |
| 3 | MA-19571301170 | SHAFT-PUMP HST Not Available Price: |
| 4 | 121188X | BRACKET Price: Call Us |
| 4 | 93-6586 | BUSHING Price: $26.89 |
| 4 | MA-19571301180 | SHAFT-MOTOR HST Not Available Price: |
| 5 | 3220-11 | NUT-JAM Price: $0.81 |
| 5 | 74780412 | SUB= 74780414 Price: Call Us |
| 5 | MA-19571301190 | PLATE-TRUN Not Available Price: |
| 6 | 121186X | FAN Price: Call Us |
| 6 | 87-1480-03 | END-TIE ROD, RH This part replaces 87-1480. Price: $101.78 |
| 6 | MA-19571301210 | PLATE-TRUN Not Available Price: |
| 7 | 121180X | PULLEY TRANSAXLE Price: Call Us |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | MA-19571301220 | PLATE-PMP Not Available Price: |
| 8 | 121211X | STANDOFF Price: Call Us |
| 8 | 87-1470-03 | END-TIE ROD, LH This part replaces 87-1470. Price: $101.78 |
| 8 | MA-19571301230 | CAP Not Available Price: |
| 9 | 121182X | GUARD ASSY Price: Call Us |
| 9 | 3218-21 | NUT-JAM Price: $3.19 |
| 9 | MA-07410103500 | C-Ring Price: Call Us |
| 10 | 121431X | TRANSAXLE.AGRIFAB Price: Call Us |
| 10 | 93-6588-03 | ROD-STEERING This part replaces 93-6588. Price: $296.55 |
| 10 | MA-19571301240 | PLATE-VALV Not Available Price: |
| 11 | 117-5808-03 | LH SPINDLE ASM This part replaces 93-6577-03. Price: $973.03 |
| 11 | 121430X | PUMP.BDU-10S-114 Price: Call Us |
| 11 | MA-19571301250 | PLATE-VALV Not Available Price: |
| 12 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 12 | 74760572 | BOLT Price: Call Us |
| 12 | MA-19631301470 | VALVE Not Available Price: |
| 13 | 121323X | PUMP.2003081. Price: Call Us |
| 13 | MA-19631301430 | SPRING Not Available Price: |
| 14 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 14 | 73680500 | SUB= 73690500 Price: Call Us |
| 14 | MA-19571301280 | GASKET-CNT Not Available Price: |
| 15 | 121250X | SPRING Price: Call Us |
| 15 | 93-6584 | KING PIN ASM Price: $68.03 |
| 15 | MA-19571301290 | BOLT Not Available Price: |
| 16 | 74760612 | SUB= 74780612 Price: Call Us |
| 16 | 93-6587 | BEARING Price: $14.99 |
| 16 | MA-A5440708020 | BOLT Not Available Price: |
| 17 | 117-5809-03 | RH SPINDLE ASM This part replaces 93-6582-03. Price: $908.87 |
| 17 | 73680600 | SUB= 73690600 Price: Call Us |
| 17 | MA-A2220106014 | SCREW Not Available Price: |
| 18 | 10040500 | LOCKWASHER Price: Call Us |
| 18 | 325-6 | SCREW-HH Price: $1.42 |
| 18 | MA-19571301320 | SPRING-CYL BLOCK Not Available Price: |
| 19 | 3256-62 | WASHER-FLAT Price: $0.75 |
| 19 | 71673 | PLUNGER CAP T Price: Call Us |
| 19 | MA-19571301330 | OIL SEAL HST Not Available Price: |
| 20 | 32136-11 | NUT-HEX, SLOT Price: $7.74 |
| 20 | 7605J | BOLT T Price: Call Us |
| 20 | MA-19571301340 | O-RING HST Not Available Price: |
| 21 | 120529X | WASHER T Price: Call Us |
| 21 | 42329 | TIRE WHEEL ASS-Y (23" T Price: Call Us |
| 21 | MA-08300200650 | O-RING Not Available Price: |
| 22 | MA-07410106500 | C-Ring Price: Call Us |
| 23 | MA-19571301350 | SPACER-BRG Not Available Price: |
| 24 | MA-19571301360 | BALL BEARING HST Not Available Price: |
| 25 | MA-19571301370 | NEEDLE BEARING Not Available Price: |
| 26 | MA-07400002500 | RING-"C" Not Available This part replaces MA-07400102500. Price: |
| 27 | MA-19571301380 | OIL SEAL Not Available Price: |
| 28 | MA-19571301390 | PIN-VLV PL Not Available Price: |
| 29 | MA-19571301410 | BUSHING-TRUNNION H Not Available Price: |
| 30 | MA-19571301420 | POPPET Not Available Price: |
| 31 | MA-19571301430 | PLUG-POPPE Not Available Price: |
| 32 | MA-19571301440 | SPRING-POPPET HST Not Available Price: |
| 33 | MA-08301100140 | O-RING Not Available Price: |
| 34 | MA-19571301450 | VALVE ASSEMBLY-HST Not Available Price: |
| 35 | MA-19571301460 | PIN-GUIDE Not Available Price: |
| 36 | MA-19571301470 | PLUG-PORT Not Available Price: |
| 37 | MA-08301100110 | O-RING Not Available Price: |
| 38 | MA-19571301480 | PLUG-PORT Not Available Price: |
| 39 | MA-19571301490 | OIL SEAL HST Not Available Price: |
| 40 | MA-19571301510 | PLUG-PORT Not Available Price: |
| 41 | MA-19571301520 | PLATE-THRUST HST Not Available Price: |
| 42 | MA-08300200600 | O-RING Not Available Price: |
| 43 | MA-19571301530 | PIN-TRUNNI Not Available Price: |
| 55 | MA-19571301280 | GASKET-CNT Not Available Price: |
| 56 | MA-19571301330 | OIL SEAL HST Not Available Price: |
| 57 | MA-19571301340 | O-RING HST Not Available Price: |
| 58 | MA-08300200650 | O-RING Not Available Price: |
| 59 | MA-19571301380 | OIL SEAL Not Available Price: |
| 60 | MA-08301100140 | O-RING Not Available Price: |
| 61 | MA-08301100110 | O-RING Not Available Price: |
| 62 | MA-19571301490 | OIL SEAL HST Not Available Price: |
