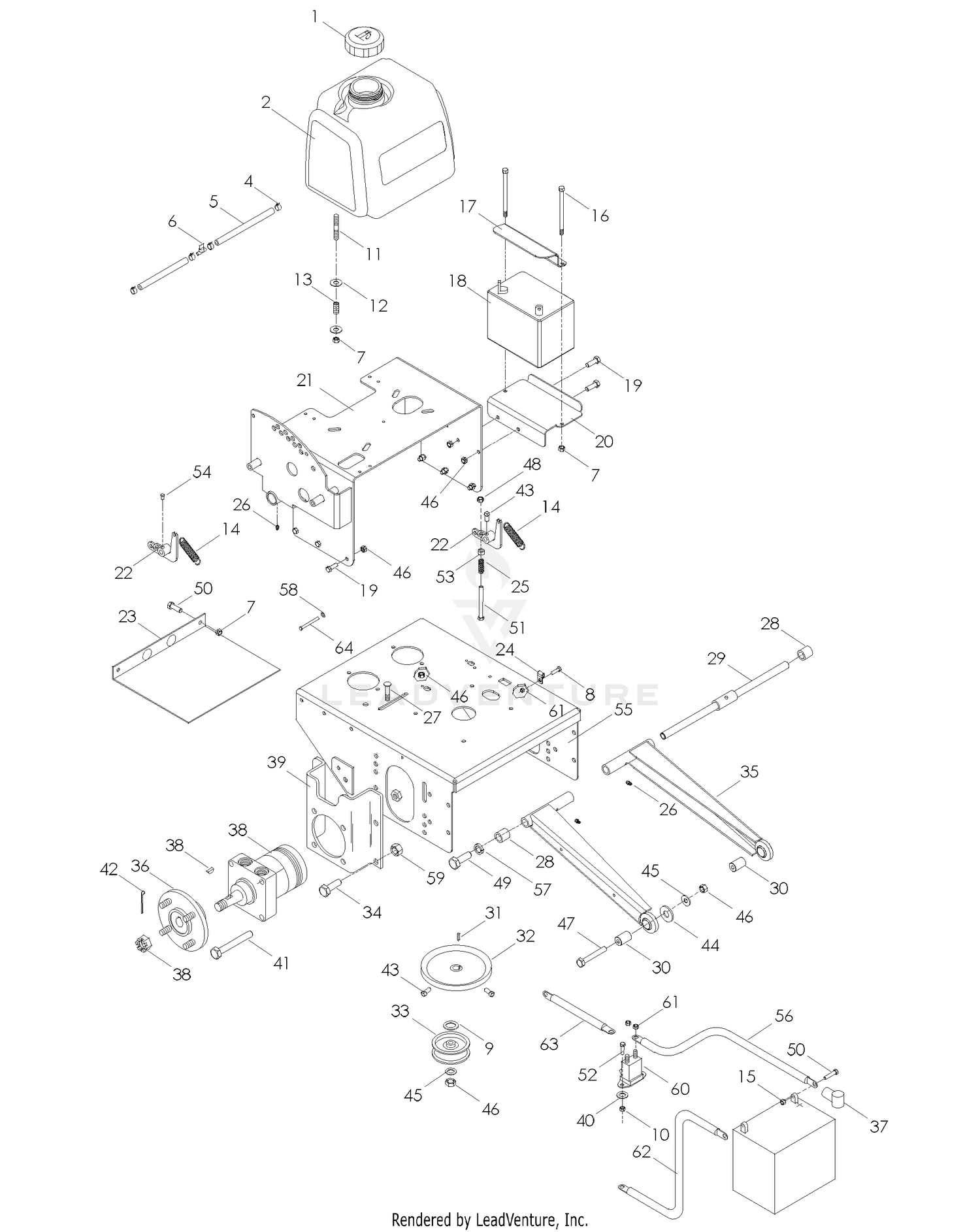

| Ref | Part Number | Description |
|---|
| 1 |
3217-6 |
NUT-HEX Price: $1.19 |
| 1 |
539130394 |
FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99 |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
539105630 |
FUEL TANK Price: $201.99 |
| 3 |
55-8660 |
Clamp (Incl. Ref. #1-2 4) Price: Call Us |
| 3 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 4 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 4 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 5 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 5 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 6 |
539916325 |
FUEL VALVE Price: $9.99 |
| 6 |
54-2480 |
ENGINE DUCT WA *B Price: $79.51 |
| 7 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 7 |
63-8440 |
DECAL-SURFACE, HOT Price: $6.82 |
| 8 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 8 |
92-1790 |
SCREEN WA *B This part replaces 54-0950. Price: $416.93 |
| 9 |
54-0990 |
BOTTOM DUCT *B Price: Call Us |
| 9 |
596917301 |
Washers This part replaces 539111897. Price: $4.99 |
| 10 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 10 |
54-2290 |
EXHAUST PIPE Price: Call Us |
| 11 |
324-11 |
SCREW-HH Price: $3.05 |
| 11 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 12 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 12 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 13 |
3212-24 |
SCREW-HH Price: $13.96 |
| 13 |
539102845 |
SPRING Price: $2.99 |
| 14 |
44-8160 |
DISCONTINUED Price: Call Us |
| 14 |
539916159 |
SPRING-TRANS Price: $5.99 |
| 15 |
54-0220 |
BRAKE CLUTCH ASM Price: $575.39 |
| 15 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 16 |
539105826 |
BOLT - 5/16 X 7 Price: $3.99 |
| 16 |
54-1380 |
V-BELT, JACKSHAFT Price: $30.63 |
| 17 |
539105942 |
BATTERY STRAP Price: $29.99 |
| 17 |
54-2330 |
ENGINE PULLEY Price: $88.01 |
| 18 |
54-1390 |
V-BELT, TRACTION Price: $27.35 |
| 18 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 19 |
539990134 |
SCREW 3/8C X 3/4 HEX CAP Price: $3.99 |
| 19 |
54-2160 |
Anchor Bracket Price: Call Us |
| 20 |
5-0930 |
KEY Price: $12.91 |
| 20 |
539105943 |
BATTERY TRAY Price: $33.99 |
| 21 |
539105590 |
TANK SUPPORT Price: $279.99 |
| 21 |
74-0861 |
Engine Price: Call Us |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 22 |
539105913 |
PUMP ARM WELDMENT Price: $59.99 |
| 23 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 23 |
539104547 |
LOWER BELT SHIELD Price: $37.99 |
| 24 |
539109867 |
DOUBLE TUBE CLAMP Price: $5.99 |
| 24 |
54-1780 |
AIR CLEANER HOSE Price: Call Us |
| 25 |
539101224 |
SPRING Price: $19.99 |
| 26 |
596899901 |
GSPW Zerks This part replaces 539976998. Price: $2.99 |
| 27 |
595901401 |
Bolts This part replaces 539100145. Price: $2.99 |
| 28 |
539105806 |
SPACER Price: $22.99 |
| 29 |
539106446 |
STRUT SHAFT Price: $199.99 |
| 30 |
539105641 |
FRONT SPACER Price: $14.99 |
| 31 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 32 |
539102228 |
PULLEY Price: $42.99 |
| 33 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 34 |
539990622 |
HCS 1/2C X 1 1/4 SERRATED HEAD Price: $3.99 |
| 35 |
539105577 |
STRUT WELDMENT Price: $179.99 |
| 36 |
539101109 |
HUB.WHEEL.ZTR Price: $84.99 |
| 37 |
539102759 |
INSULATOR Price: $3.99 |
| 38 |
539103527 |
WHEEL MOTOR Price: $649.99 |
| 39 |
539106491 |
MOTOR MOUNT Price: $36.99 |
| 40 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 41 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 42 |
539990297 |
COTTER PIN Price: $2.99 |
| 43 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 44 |
595316401 |
Washers This part replaces 539990550. Price: $2.99 |
| 45 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 46 |
595305901 |
Nuts This part replaces 539990546. Price: $2.99 |
| 47 |
596564404 |
Bolts This part replaces 539990629. Price: $2.99 |
| 48 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 49 |
596583601 |
Bolts This part replaces 539990646. Price: $2.99 |
| 50 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 51 |
539106492 |
HEX SCREW 3/8-20 X 2.75 Price: $2.99 |
| 52 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 53 |
539923515 |
SPACER Price: $4.99 |
| 55 |
539106572 |
REAR DECK Price: $34.99 |
| 56 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 57 |
539990254 |
WASHER 1/2" SPLIT LOCK Price: $2.99 |
| 58 |
596436201 |
Nuts This part replaces 539102234. Price: $1.99 |
| 59 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 60 |
539101714 |
SOLENOID Price: $22.99 |
| 61 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 62 |
539102758 |
CABLE-NEGATIVE Price: $12.99 |
| 63 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 64 |
539102233 |
CLEVIS PIN Price: $1.99 |
