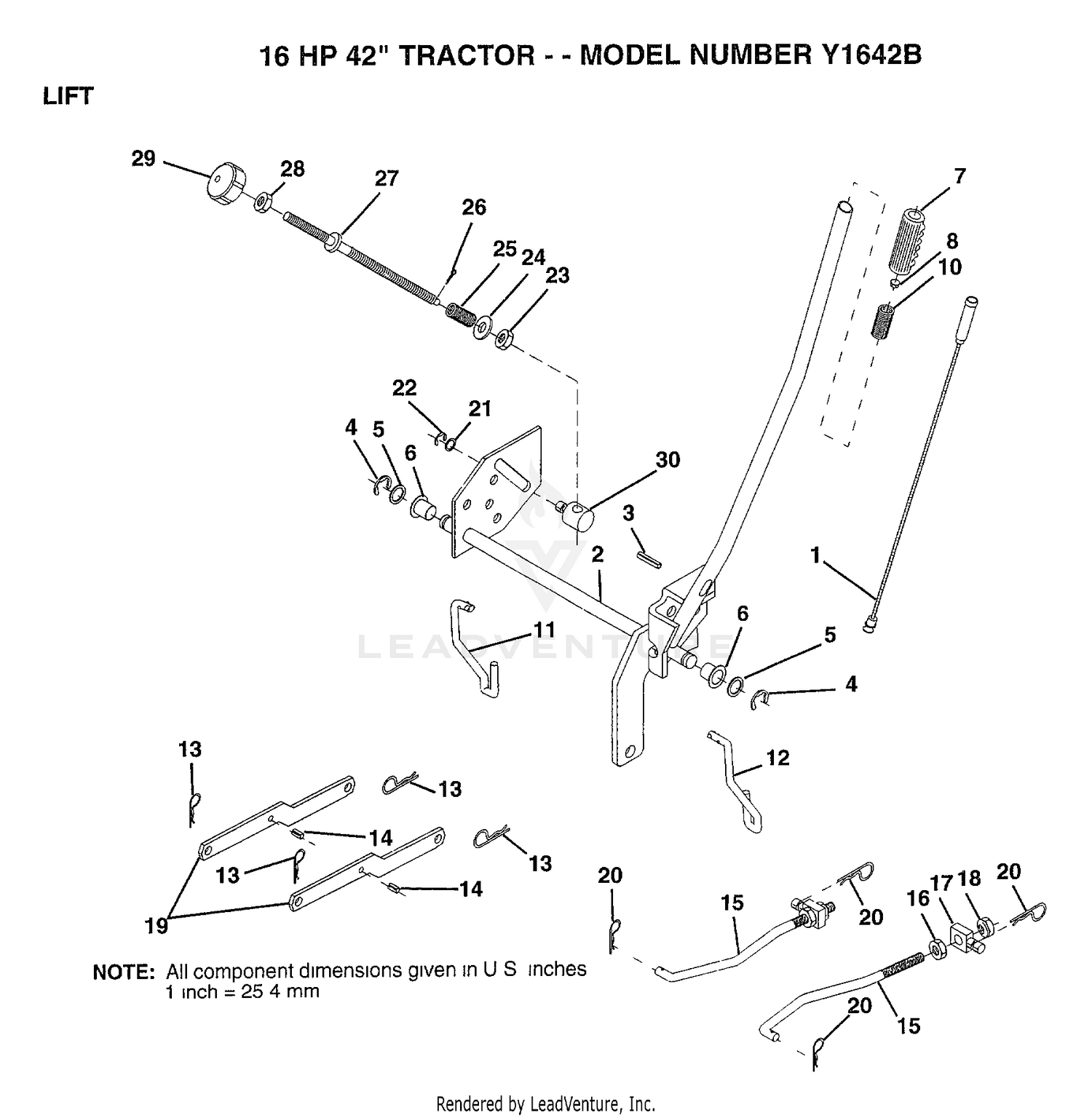

| Ref | Part Number | Description |
|---|
| 1 |
105-7155-03 |
BRACKET-PIVOT Price: $58.49 |
| 1 |
136971 |
WIRE.ASM.INNER Price: Call Us |
| 2 |
136969 |
SHAFT.ASM.LIFT.RH Price: Call Us |
| 2 |
66-8140 |
HOSE-HYDRAULIC Price: $55.60 |
| 3 |
138284 |
PIN GROOVE Price: Call Us |
| 3 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 4 |
12000002 |
SUB= 2225J Price: Call Us |
| 4 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
105-7191-03 |
SUPPORT-COLUMN Price: $50.73 |
| 5 |
19211416 |
WASHER Price: Call Us |
| 6 |
120183X |
NYLON BEARING Price: Call Us |
| 6 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 7 |
109413X |
GRIP Price: Call Us |
| 7 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 8 |
124526X |
SUB= 125925X Price: Call Us |
| 8 |
63-6750 |
LINK-CABLE, BRAKE Price: $6.39 |
| 9 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 10 |
122512X |
SUB= 532122512 Price: Call Us |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 11 |
134619 |
LINK LIFT LH Price: Call Us |
| 11 |
63-6210-03 |
PIN-BRAKE Price: $66.77 |
| 12 |
105-7181-03 |
PLATE-PIVOT Price: $38.66 |
| 12 |
135388 |
LIFT LINK RH Price: Call Us |
| 13 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 13 |
4939M |
SUB= 85902 Price: Call Us |
| 14 |
82-9010 |
DISC-FRICTION Price: $15.53 |
| 15 |
127218 |
LINK.FRONT Price: Call Us |
| 15 |
233-17 |
KNOB Price: $10.58 |
| 16 |
73350800 |
NUT Price: Call Us |
| 16 |
80-2930 |
WASHER-FLAT Price: $5.00 |
| 17 |
130171 |
TRUNION Price: Call Us |
| 17 |
80-2880 |
BRACKET-TILT Price: $18.75 |
| 18 |
31-0390 |
DISC-FRICTION Price: $11.25 |
| 18 |
73800800 |
NUT.LK.W/WSH.1/2. Price: Call Us |
| 19 |
108-6557 |
STEER VALVE AND COLUMN ASM This part replaces 92-7308. Price: $1,800.82 |
| 19 |
130832 |
SUB= 130833 Price: Call Us |
| 20 |
3146R |
RETAINER.SPRING Price: Call Us |
| 20 |
44-8530 |
PROTECTOR-SLEEVE Price: $22.53 |
| 21 |
105-7188 |
CLAMP-ADHESIVE Price: $2.04 |
| 21 |
19151216 |
WASHER Price: Call Us |
| 22 |
12000037 |
KLIP RING Price: Call Us |
| 22 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 23 |
108-1378 |
BRAKE CABLE ASM, LH This part replaces 63-7731. Price: $155.47 |
| 23 |
110807X |
NUT T Price: Call Us |
| 24 |
19131016 |
WASHER Price: Call Us |
| 24 |
63-6180 |
PEDAL-BRAKE, LH Price: $209.48 |
| 25 |
2876H |
SPRING T Price: Call Us |
| 25 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 26 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 26 |
76020308 |
SUB= 3145 Price: Call Us |
| 27 |
110729X |
ROD LIFT LT Price: Call Us |
| 27 |
63-6190 |
PEDAL-BRAKE, RH Price: $209.48 |
| 28 |
108-1377 |
BRAKE CABLE ASM, RH This part replaces 63-7730. Price: $157.02 |
| 28 |
73350600 |
NUT Price: Call Us |
| 29 |
138057 |
KNOB INF 3/8-16 Price: Call Us |
| 29 |
63-7900-03 |
RACK Price: $144.55 |
| 31 |
322-7 |
SCREW-HH Price: $0.89 |
| 32 |
108-6092 |
LEVER-STEERING, TILT This part replaces 93-1353-03. Price: $49.30 |
| 33 |
21-1880 |
GRIP-HANDLE Price: $11.67 |
| 34 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 35 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 36 |
105-7166 |
SPACER Price: $34.95 |
| 37 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 38 |
105-7156 |
SPACER Price: $4.00 |
| 39 |
3234-18 |
SCREW-HHF Price: $0.87 |
| 40 |
80-2960 |
SPACER-TOWER Price: $11.13 |
| 41 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 42 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 43 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 44 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 45 |
3218-7 |
NUT-JAM Price: $3.86 |
| 46 |
105-7168 |
ROD ASM Price: $56.16 |
| 47 |
71-8310 |
SPRING-COMPRESSION Price: $4.59 |
| 48 |
99-3410 |
SWITCH Price: $95.63 |
| 49 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 50 |
32149-6 |
NUT, HEX Price: $0.25 |
| 51 |
93-5429 |
COLLAR-FOAM Price: $36.18 |
| 52 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 53 |
98-1459 |
DECAL Price: $3.93 |
| 54 |
105-7173 |
DISCONTINUED Price: Call Us |
| 55 |
105-7174 |
HYD HOSE ASM Price: $126.57 |
| 56 |
105-7175 |
HYD HOSE ASM Price: $95.55 |
| 57 |
105-7176 |
HYD HOSE ASM Price: $97.11 |
| 58 |
340-145 |
FITTING-REDUCER Price: $18.41 |
| 59 |
32128-16 |
NUT-HHF Price: $0.54 |
