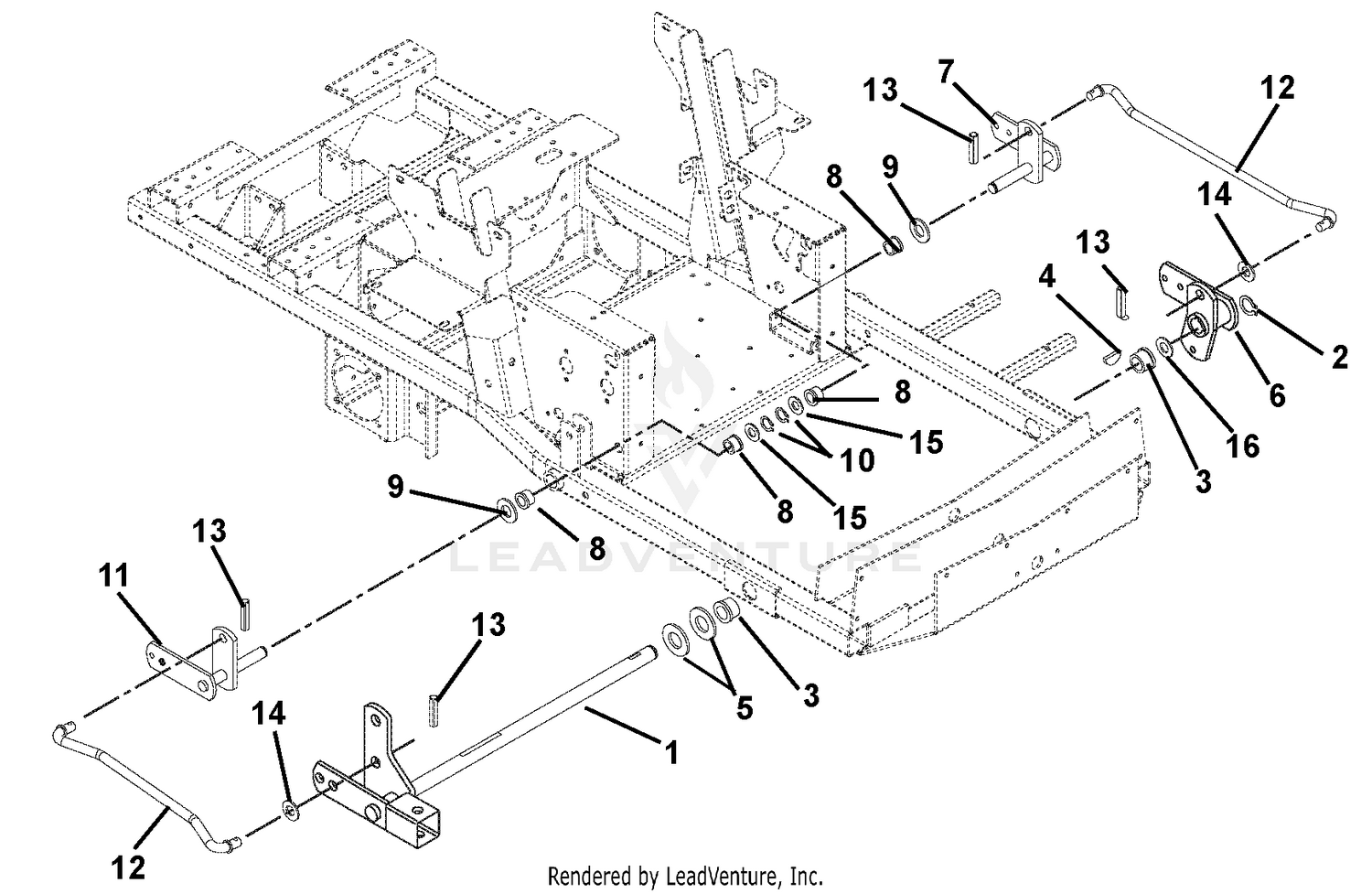

| Ref | Part Number | Description |
|---|
| 1 |
09289700 |
MOWER LIFT Price: $234.45 |
| 2 |
05707300 |
RG-RTNG-EXT 1.00X.078 Price: $2.95 |
| 3 |
05520100 |
BSHG-FLG1.020X1.385X.75X1.75NY Price: $10.45 |
| 4 |
06608900 |
KEY-WDRF .25X1.00 HRD #15 Price: $3.45 |
| 5 |
06428500 |
WSHR-FL-STL 1.063X2.00X.134 Price: $2.95 |
| 6 |
09289800 |
WMT, FRONT MOWER LIFT-LH Price: $161.95 |
| 7 |
09290000 |
WMT, REAR LIFT ARM -LH Price: $111.45 |
| 8 |
05518400 |
BSHG-FLG .762X1.0X.580X1.48 NY Price: $4.45 |
| 9 |
06413400 |
WSHR-HDND-THRST .758X1.23X.031 Price: $2.95 |
| 10 |
05714600 |
RG-RTNG-EXT .689X.078 Price: $2.45 |
| 11 |
09289900 |
WMT, REAR LIFT ARM - RH Price: $120.05 |
| 12 |
04063100 |
ROD-LIFT ASSIST 19.35" This part replaces 00185800. Price: $71.45 |
| 13 |
05800001 |
PIN-ROLL .250X1.25 STNLESS STL Price: $2.95 |
| 14 |
06445100 |
WSHR-FL-STL .630X1.250X.062 YZ Price: $2.45 |
| 15 |
06401016 |
WSHR, FLT .755X1.375X.062 ZCC This part replaces 06444200. Price: $3.45 |
