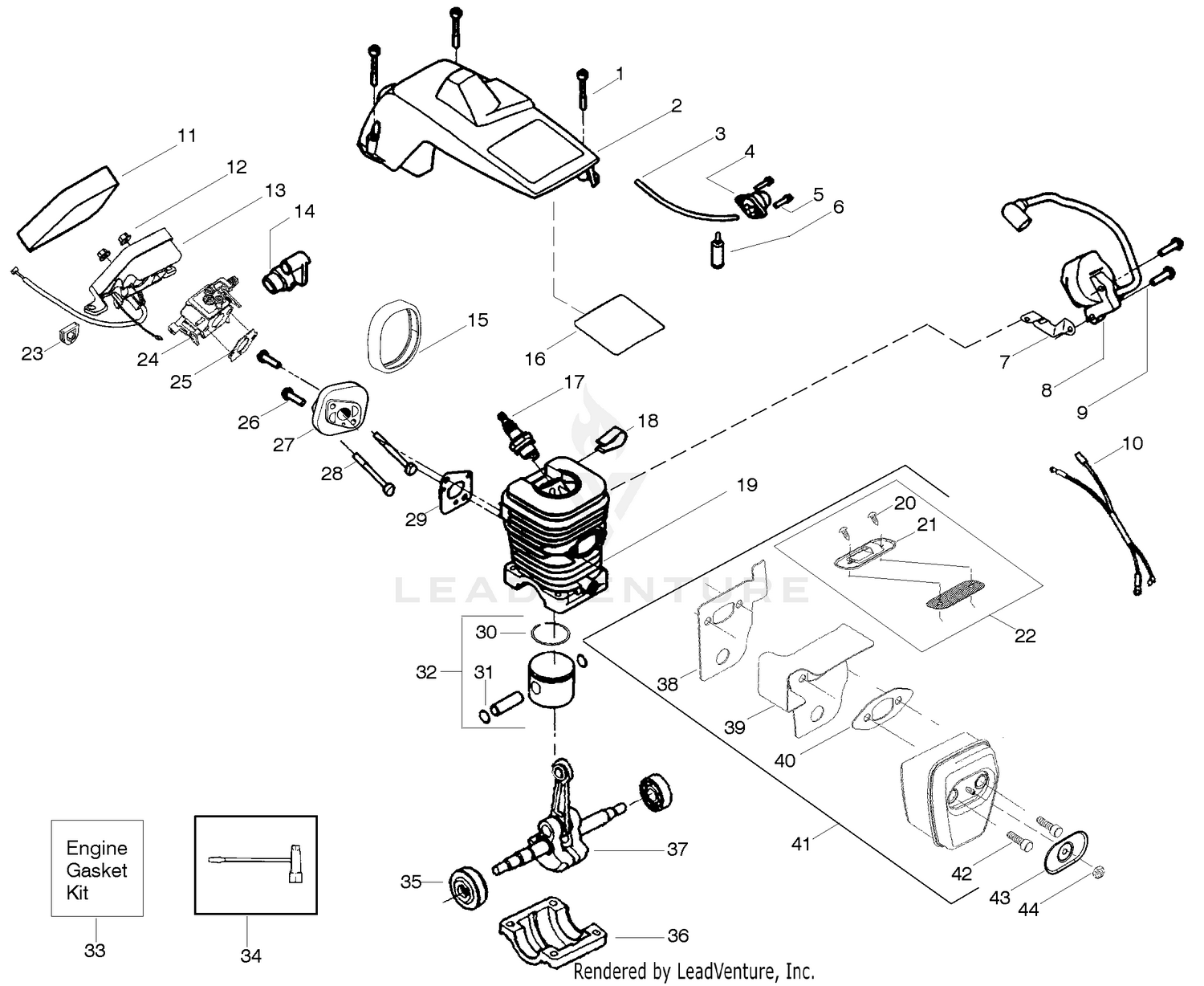

| Ref | Part Number | Description |
|---|
| 1 |
138-8207 |
DAMPER This part replaces 105-7280. Price: $181.45 |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
105-7239 |
ROD-THREADED Price: $40.86 |
| 3 |
103-1167 |
JOINT-BALL END, LH Price: $30.99 |
| 3 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 4 |
108-5208 |
RH LEVER AND GRIP ASM Price: $66.24 |
| 4 |
530071835 |
Kit-Purge Bulb(incl.#5) Price: $5.99 |
| 5 |
108-5209 |
LH LEVER AND GRIP ASM Price: $91.15 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
120-5562-03 |
LEVER-CONTROL, MOTION This part replaces 108-9833-03. Price: $81.51 |
| 6 |
530095646 |
Assy-Fuel Pick-up Price: $2.69 |
| 7 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 8 |
105-7199 |
END-ROD, ISOLATED Price: $93.34 |
| 8 |
530039198 |
Ignition Module Price: $29.99 |
| 9 |
3250-35 |
SCREW-PPH Price: $3.24 |
| 9 |
530015814 |
Screw Price: $1.49 |
| 10 |
323-7 |
SCREW-HH Price: $0.65 |
| 10 |
530057475 |
Assy-Wire Harness Price: $5.99 |
| 11 |
1-633102 |
BEARING-FLANGE, SIDE Price: $17.99 |
| 11 |
530037793 |
Foam- Air Filter Price: $1.99 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 13 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 13 |
530057702 |
Assy- Air Box Price: $4.99 |
| 14 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 14 |
99-3410 |
SWITCH Price: $95.63 |
| 15 |
322-9 |
SCREW-HH Price: $3.09 |
| 15 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 16 |
32120-46 |
RING-RETAINING Price: $1.99 |
| 16 |
530055698 |
Reflector-Heat Price: $1.99 |
| 17 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 18 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 19 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 19 |
530012552 |
Cylinder Price: $33.99 |
| 20 |
139-1728 |
BOLT-HH FT This part replaces 9114524. Price: $1.29 |
| 20 |
530016351 |
Screw-Outlet cover Price: $1.99 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
530054883 |
Cover - Outlet Price: Call Us |
| 22 |
322-6 |
SCREW-HH Price: $0.45 |
| 23 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 23 |
530047631 |
Grommet-Throttle Cable Price: $1.99 |
| 24 |
108-9830 |
SHAFT-PIVOT Price: $40.68 |
| 25 |
105-3455 |
BUSHING Price: $2.89 |
| 25 |
530069608 |
Gasket-Carb. (kit) Price: $5.99 |
| 26 |
105-3481 |
WASHER-THRUST Price: $1.19 |
| 26 |
530016386 |
Screw Price: $5.99 |
| 27 |
32152-6 |
NUT-LOCK, CONE Price: $7.99 |
| 27 |
530049700 |
Carb. Adapter Price: $3.99 |
| 28 |
108-9829-03 |
LEVER-DAMPER Price: $24.06 |
| 28 |
530016187 |
Screw Price: $1.99 |
| 29 |
108-9831 |
HUB-CONTROL Price: $124.06 |
| 29 |
530069608 |
Gasket- Adaptor(kit) Price: $5.99 |
| 30 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 31 |
3219-3 |
NUT-HEX Price: $0.34 |
| 31 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
1-303105 |
YOKE-ADJUSTABLE Price: $11.99 |
| 34 |
530031163 |
Scrench This part replaces 530031135. Price: $4.99 |
| 35 |
1-603737 |
BOLT-RETURN, NEUTRAL Price: $7.99 |
| 35 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 36 |
1-603735 |
BUSHING-FLANGED Price: $5.69 |
| 36 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 37 |
3219-2 |
NUT-HEX Price: $0.37 |
| 37 |
530047062 |
Assy-Crankshaft Price: $72.99 |
| 38 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 38 |
530054885 |
Backplate Price: $5.99 |
| 39 |
1-603807 |
SPRING-RETURN, NEUTRAL Price: $3.29 |
| 39 |
530054880 |
Guide-Outlet Price: $5.99 |
| 40 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 40 |
530069608 |
Gasket-Muffler(kit) Price: $5.99 |
| 41 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 42 |
3220-16 |
NUT-HEX JAM, LH Price: $1.79 |
| 42 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 43 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 43 |
530055586 |
Cover-Bolt Price: $0.99 |
| 44 |
574266401 |
NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
