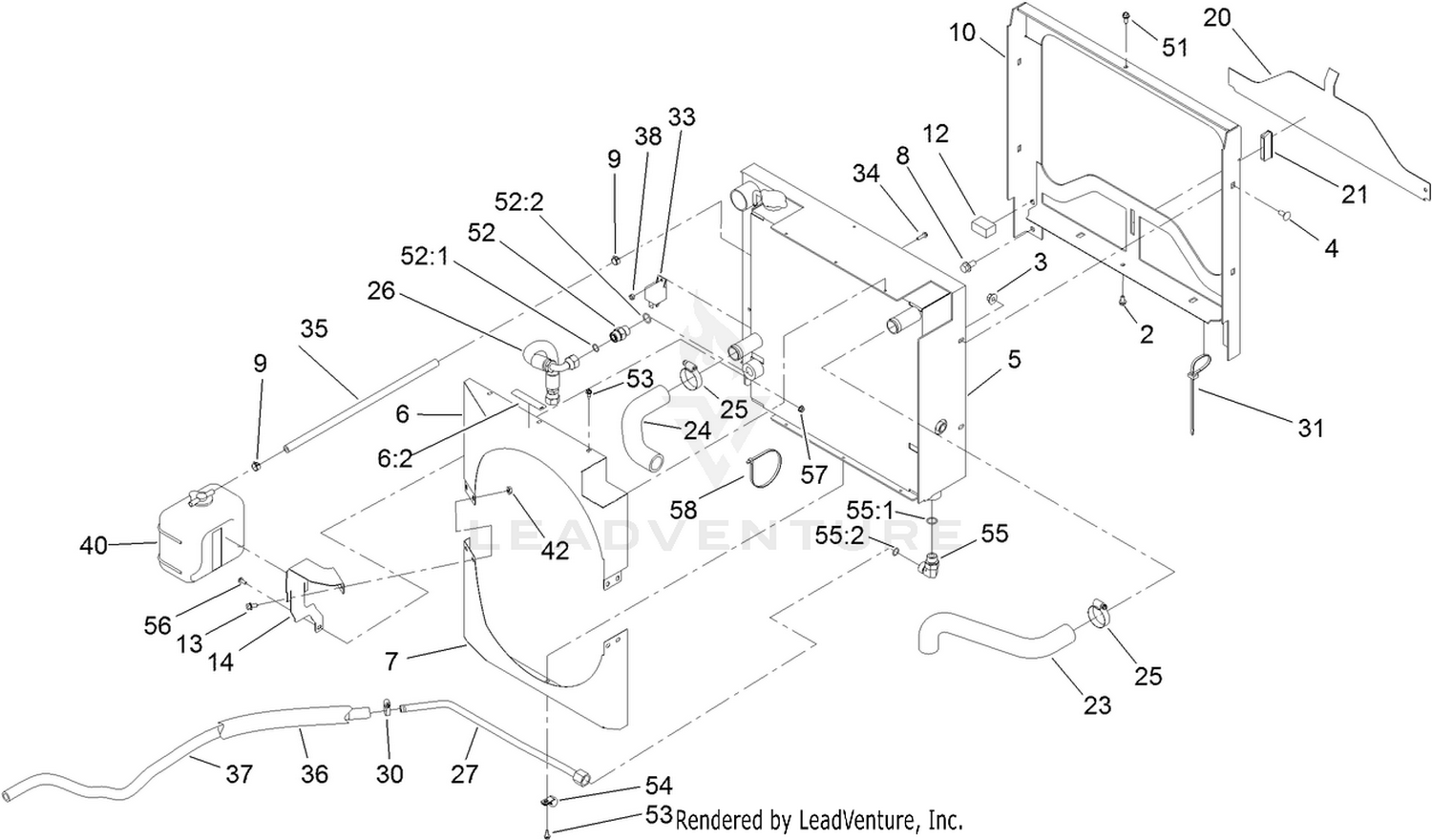

| Ref | Part Number | Description |
|---|
| 2 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 3 |
32128-44 |
NUT Price: $2.69 |
| 4 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 5 |
120-3392 |
RADIATOR/OIL COOLER Price: $1,393.43 |
| 6 |
121-3584 |
SHROUD-FAN, TOP Price: $130.33 |
| 7 |
121-6254-0P |
SHROUD-FAN, BOTTOM [PRIMED] This part replaces 121-6254-03. Price: $81.63 |
| 8 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 9 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 10 |
100-4903-0P |
FRAME ASM-RADIATOR,WELDED This part replaces 100-4903-03. Price: $249.32 |
| 12 |
95-8962 |
SEAL-FOAM, RADIATOR Price: $4.89 |
| 13 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 14 |
121-3604-0P |
BRACKET-MOUNTING, RESERVOIR This part replaces 119-6749-03. Price: $27.02 |
| 20 |
95-8702-0P |
SHIELD-RADIATOR, LOWER This part replaces 95-8702-03. Price: $47.95 |
| 21 |
99-3497 |
MAGNET Price: $20.22 |
| 23 |
121-3571 |
HOSE-RADIATOR,UPPER Price: $33.08 |
| 24 |
119-6748 |
HOSE-RADIATOR, LOWER Price: $27.52 |
| 25 |
2412-111 |
CLAMP Price: $4.39 |
| 26 |
104-2806 |
HOSE-HYD Price: $142.34 |
| 27 |
145-5267 |
TUBE-HYD This part replaces 121-3572. Price: $34.04 |
| 30 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 33 |
99-7435 |
RELAY Price: $32.43 |
| 34 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 35 |
110-4105 |
HOSE-FUEL Price: $11.71 |
| 36 |
56-7985 |
SLEEVE-PROTECTIVE Price: $32.43 |
| 37 |
93-6804 |
HOSE Price: $54.29 |
| 38 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 40 |
108-0638 |
BOTTLE-OVERFLOW This part replaces 104-9318. Price: $33.20 |
| 42 |
32128-33 |
NUT-HF Price: $0.25 |
| 51 |
119-2038 |
SCREW-HWH Price: $0.54 |
| 52 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 53 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 54 |
2412-73 |
CLAMP-R Price: $2.56 |
| 55 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 56 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 57 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
