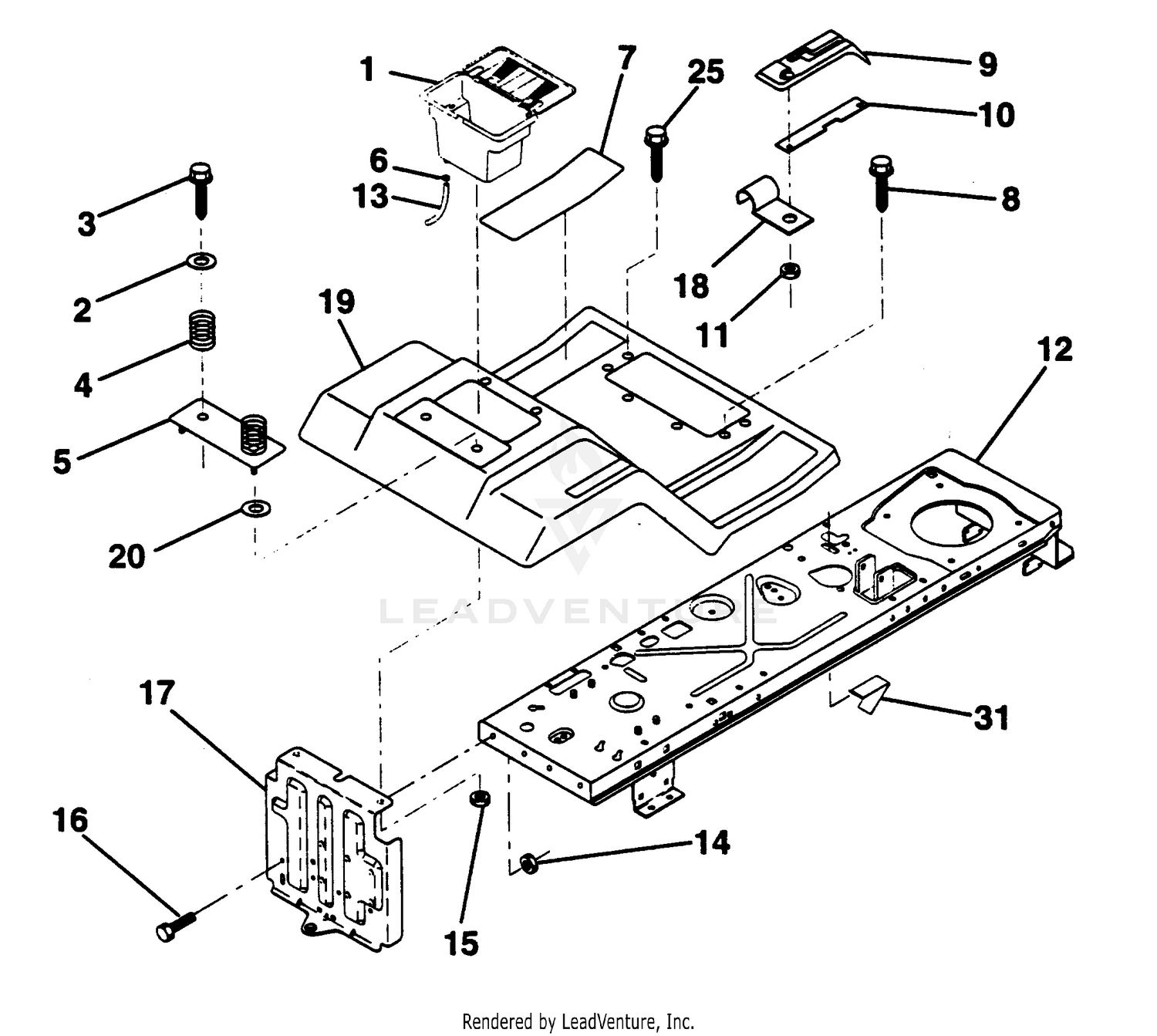

| Ref | Part Number | Description |
|---|
| 1 |
532144940 |
Case Battery (AYP part number) This part replaces 532129965. Price: $24.99 |
| 2 |
819132012 |
Washer 13/32 x 1-1/4 x 12 Ga. (AYP part number) Price: $2.99 |
| 3 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 5 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 5 |
532125139 |
Plate, Asm. Battery (AYP part number) Price: Call Us |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
532109596 |
Clamp, Hose (AYP part number) Price: $2.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532124144 |
Pad, Footrest (AYP part number) Price: $2.96 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
532126994 |
Console, Shift Control (AYP part number) Price: $6.51 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
532139783 |
Bar, Shift Lock (AYP part number) Price: $3.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
532124346 |
Nut, Self-Thrd., Wsh. Head 3/16 (AYP part number) Price: $3.99 |
| 12 |
532140784 |
Assembly, Frame (AYP part number) Price: $101.93 |
| 13 |
532109238 |
Tube, Battery Drain (AYP part number) Price: $5.46 |
| 14 |
873800500 |
Locknut, Hex W/Ins 5/16-18 (AYP part number) Price: $2.99 |
| 15 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 16 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 17 |
532140782 |
Drawbar (AYP part number) Price: $26.91 |
| 18 |
532126470 |
Clip, Insulated (AYP part number) Price: $3.99 |
| 19 |
532141266 |
Fender/Footrest (AYP part number) Price: $199.33 |
| 20 |
819091416 |
WASHER This part replaces 819091413. Price: $3.99 |
| 25 |
817490516 |
Screw Hex Wsh Thdroll 5/16-18 x 1 (AYP part number) Price: $2.99 |
