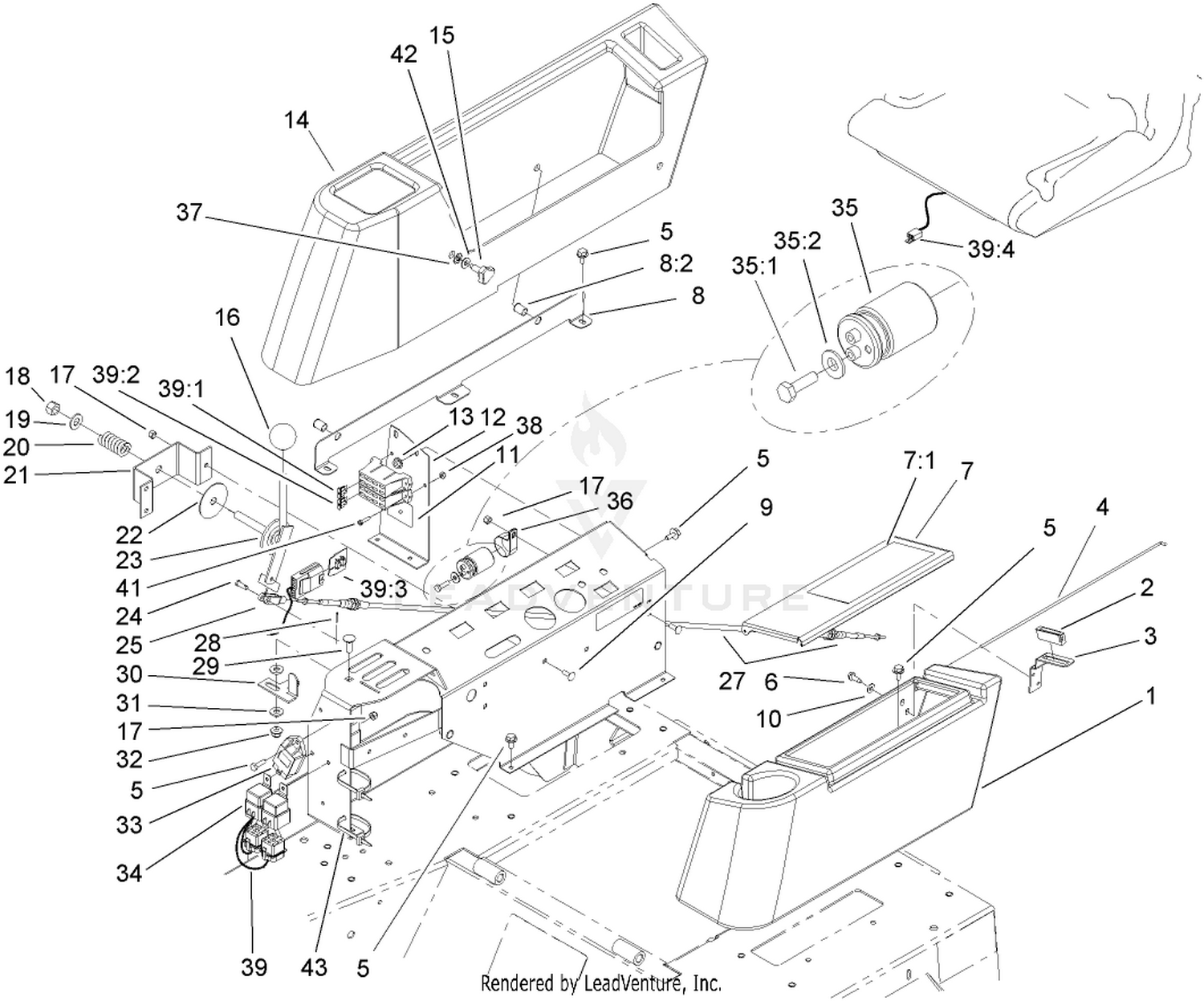

| Ref | Part Number | Description |
|---|
| 1 |
104-7515 |
HOUSING-BOX, TOOL Price: $333.97 |
| 2 |
58-4250 |
CATCH-MAGNETIC Price: $39.31 |
| 3 |
104-7545 |
BRACKET-LATCH Price: $35.78 |
| 4 |
104-7548 |
ROD-HINGE Price: $13.77 |
| 5 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 6 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 7 |
104-8321 |
TOOL BOX COVER ASM Price: $136.98 |
| 8 |
105-0780 |
CONSOLE SUPPORT ASM Price: $81.48 |
| 9 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 10 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
110-3286 |
DECAL-FUSE Price: $4.71 |
| 12 |
105-0785-03 |
SUPPORT-PANEL, CONTROL Price: $23.20 |
| 13 |
32128-33 |
NUT-HF Price: $0.25 |
| 14 |
104-7514 |
HOUSING-CONSOLE Price: $216.82 |
| 15 |
95-9648 |
KNOB Price: $15.40 |
| 16 |
233-48 |
KNOB Price: $10.92 |
| 17 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 19 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
3-8596 |
SPRING-COMPRESSION Price: $29.97 |
| 21 |
104-7539-03 |
BRACKET-PIVOT Price: $44.97 |
| 22 |
3-2858 |
DISC-FRICTION Price: $31.32 |
| 23 |
104-7538 |
THROTTLE LEVER ASM Price: $187.98 |
| 24 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 25 |
282-28 |
CLEVIS-ADJUSTABLE Price: $58.02 |
| 27 |
104-7547 |
CABLE-THROTTLE Price: $141.29 |
| 28 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 29 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 30 |
104-7543 |
STOP-LEVER, LIFT Price: $25.34 |
| 31 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 32 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 33 |
98-7611 |
CONTROLLER-GLOW Price: $316.53 |
| 34 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 35 |
37-2690 |
CAPACITOR Price: $155.98 |
| 36 |
2412-74 |
R-CLAMP Price: $2.37 |
| 37 |
32151-72 |
RING-RETAINING Price: $1.59 |
| 38 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 39 |
105-7474 |
HARNESS-WIRE, CONSOLE Price: $930.01 |
| 41 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 42 |
3256-3 |
WASHER-FLAT Price: $0.49 |
