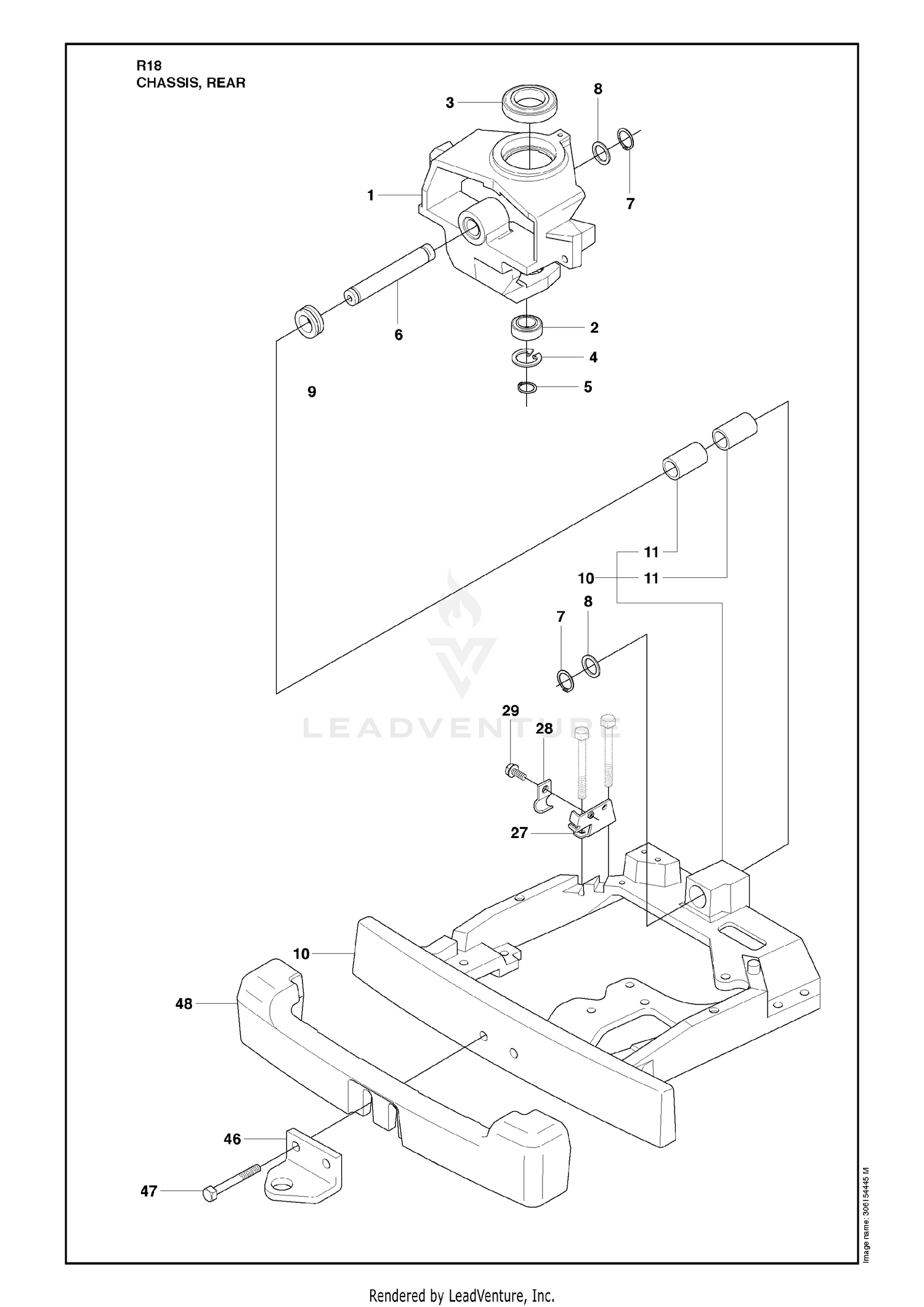

Chassis, Rear Image 1
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506985803 | SPINDLE Price: $179.99 |
| 2 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 3 | 738211004 | BALL BEARING 6010 2RS1 Price: $39.99 |
| 4 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 5 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 6 | 506985901 | SHAFT Price: $44.99 |
| 7 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 8 | 506773401 | WASHER Price: $3.99 |
| 9 | 740681421 | V-RING Price: $3.99 |
| 10 | 535406001 | BRACKET Price: $299.99 |
| 11 | 506986102 | BUSHING Price: $14.99 |
| 11 | 76-0860 | SHAFT-COUPLING Price: $688.74 |
| 12 | 506986301 | HYDROSTAT 7A646024070 Price: $1,099.99 |
| 12 | 76-0850 | BEARING-THRUST Price: $30.56 |
| 13 | 506558302 | BOLT Price: $3.99 |
| 13 | 92-9761 | LINK-DRIVE Price: $313.30 |
| 14 | 725246751 | Hex Bolt Price: $4.99 |
| 14 | 92-9762 | SCREW-HH Price: $8.11 |
| 15 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 16 | 731231801 | NUT Price: $3.99 |
| 17 | 3257-42 | KEY-WOODRUFF Price: $5.99 |
| 17 | 506987201 | BRACKET Price: $19.99 |
| 18 | 725245951 | SCREW Price: $4.99 |
| 18 | 92-9754 | PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 19 | 725246251 | SCREW Price: $4.99 |
| 20 | 506599301 | CONNECTOR Price: $5.99 |
| 21 | 731231801 | NUT Price: $3.99 |
| 22 | 506987403 | ARM Price: $12.99 |
| 22 | 76-0840 | MANIFOLD Price: $790.28 |
| 23 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 24 | 725245151 | SCREW 8X20 Price: $4.99 |
| 24 | 76-0940 | END COVER ASM Price: $431.83 |
| 25 | 506987501 | ROD Price: $32.99 |
| 26 | 732211401 | LOCKNUT M5 Price: $2.99 |
| 27 | 506987701 | BRACKET Price: $11.99 |
| 28 | 506566501 | CLAMP Price: $2.99 |
| 29 | 725236461 | SCREW Price: $2.99 |
| 30 | 506988201 | Rod Price: $12.71 |
| 31 | 506834301 | SPRING Price: $3.99 |
| 32 | 506988401 | TENSIONER Price: $54.99 |
| 33 | 588740401 | BELT TENSIONER ARM This part replaces 506988501. Price: $14.99 |
| 34 | 506946901 | PULLEY Price: $34.99 |
| 35 | 725245551 | SCREW Price: $3.99 |
| 36 | 734116441 | SPACER Price: $3.99 |
| 37 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 38 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 39 | 725245151 | SCREW 8X20 Price: $4.99 |
| 40 | 594924101 | Springs This part replaces 506988601. Price: $3.99 |
| 41 | 725246451 | SCREW Price: $5.99 |
| 42 | 506988801 | SCREW Price: $4.96 |
| 43 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 44 | 506989001 | TANK Price: $24.99 |
| 45 | 590324701 | TANK CAP ASSY This part replaces 506988001. Price: $7.99 |
| 46 | 506889901 | DRAW RING Price: $17.99 |
| 47 | 725250071 | SCREW This part replaces 725250051. Price: $2.99 |
