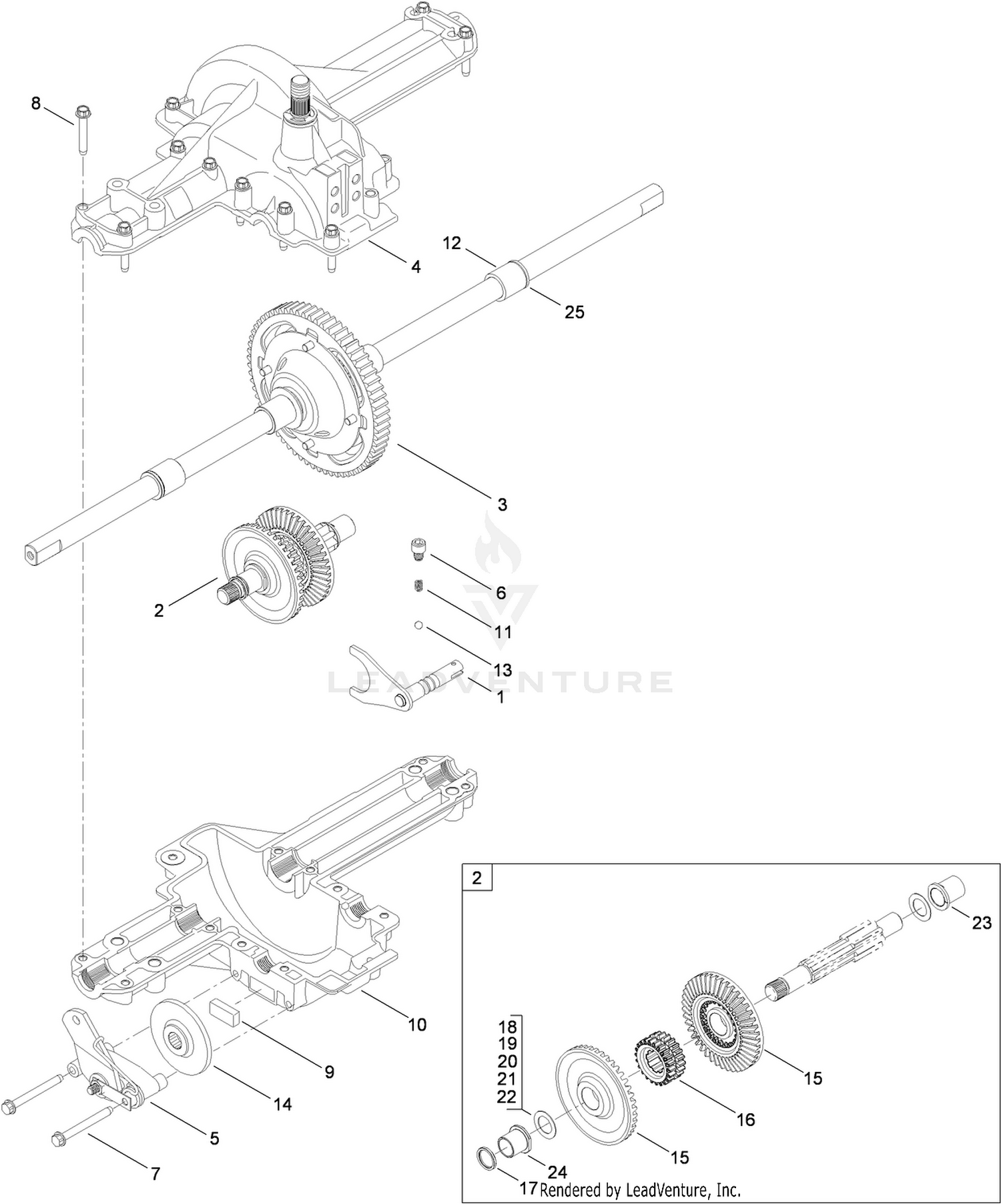

Transmission Assembly No. 112-6256
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 112-0806 | SHIFT FORK ASM Price: $33.69 |
| 2 | 112-6084 | DRIVE SHAFT ASM Price: $124.12 |
| 3 | 112-6085 | DIFFERENTIAL ASM Price: $204.77 |
| 4 | 112-6086 | UPPER HOUSING ASM Price: $136.50 |
| 5 | 112-0832 | BRAKE ASM Price: $40.79 |
| 6 | 112-6087 | SCREW-TAP Price: $9.95 |
| 7 | 112-0698 | SCREW-HWH Price: $3.67 |
| 8 | 112-0839 | SCREW-TAP Price: $3.52 |
| 9 | 112-0741 | PUCK-BRAKE Price: $7.01 |
| 10 | 112-6088 | HOUSING-LOWER Price: $68.22 |
| 11 | 112-0801 | SPRING-DETENT Price: $3.63 |
| 12 | 112-6092 | BEARING-SLEEVE Price: $12.86 |
| 13 | 112-0799 | BALL-DETENT Price: $3.52 |
| 14 | 112-0817 | DISC-BRAKE Price: $11.89 |
| 15 | 112-6089 | GEAR-BEVEL, 42T (SPLINE) Price: $24.98 |
| 16 | 112-6090 | COLLAR-CLUSTER Price: $14.85 |
| 17 | 112-6091 | SEAL Price: $8.88 |
| 18 | 112-0748 | WASHER-FLAT Price: $3.52 |
| 19 | 112-0750 | WASHER-FLAT Price: $3.52 |
| 20 | 112-0745 | WASHER-FLAT Price: $3.50 |
| 21 | 112-0773 | WASHER-THRUST Price: $3.52 |
| 22 | 112-0755 | WASHER-THRUST Price: $3.52 |
| 23 | 112-0794 | BEARING-FLANGE Price: $8.22 |
| 24 | 112-0795 | BEARING-FLANGE Price: $8.17 |
| 25 | 112-0800 | SEAL Price: $6.01 |
