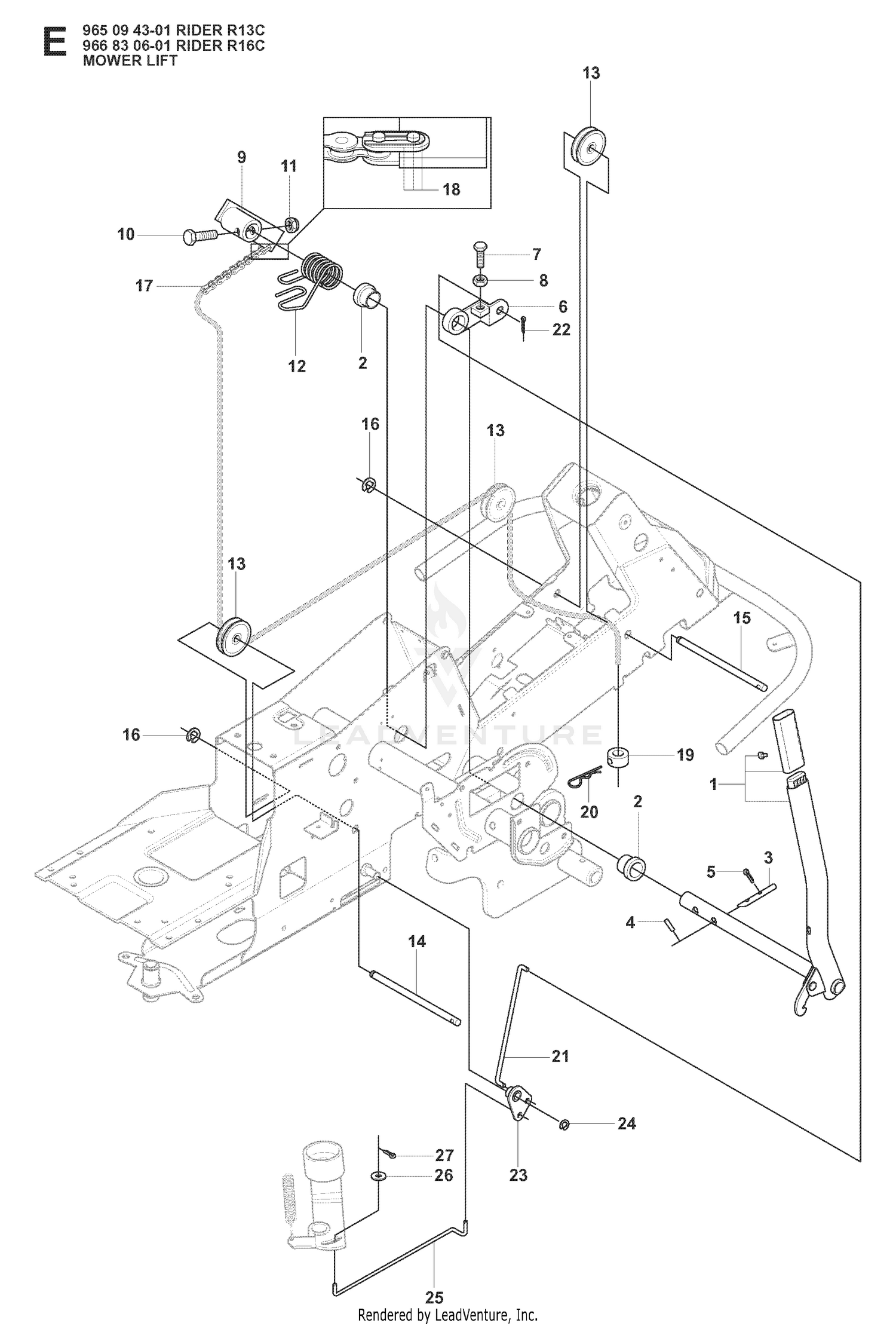

MOWER LIFT / DECK LIFT
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-0959 | ROLLER-WIEHLE, PLASTIC Price: $366.77 |
| 1 | 501018602 | LIFTING LEVER ASSY This part replaces 501018601. Price: $54.99 |
| 2 | 117-0957 | SHAFT-ROLLER, WIEHLE Price: $105.15 |
| 2 | 584871301 | BEARING FLANGE This part replaces 506556501. Price: $4.99 |
| 3 | 525406601 | PIN This part replaces 506905301. Price: $7.99 |
| 4 | 721125930 | PIN Price: $2.99 |
| 5 | 721618301 | Split Pin Price: $1.99 |
| 6 | 506784301 | LEVER CLUTCH Price: $29.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 725249751 | SCREW Price: $4.99 |
| 8 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 9 | 544433601 | LIFTING ARM Price: $22.99 |
| 10 | 725254251 | Screw Price: $4.99 |
| 11 | 732252201 | Nut Price: $2.65 |
| 12 | 506916801 | SPRING Price: $7.99 |
| 13 | 506905601 | PULLEY Price: $14.99 |
| 14 | 506905701 | SHAFT Price: $18.26 |
| 15 | 506905702 | SHAFT Price: $19.99 |
| 16 | 735311820 | Lock Ring Price: $1.99 |
| 17 | 506554607 | CHAIN Price: $37.99 |
| 19 | 544934201 | Price: Call Us |
| 20 | 506966601 | RETAINER Price: $3.99 |
| 21 | 544456901 | CONNECTION ROD Price: $8.99 |
| 22 | 721618301 | Split Pin Price: $1.99 |
| 23 | 544378601 | LINK Price: $7.99 |
| 24 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 544448801 | CONNECTION ROD Price: $8.99 |
| 26 | 734116441 | SPACER Price: $3.99 |
| 27 | 721618301 | Split Pin Price: $1.99 |
| 50 | 114-5430 | ROLLER REBUILD KIT Price: $99.53 |
