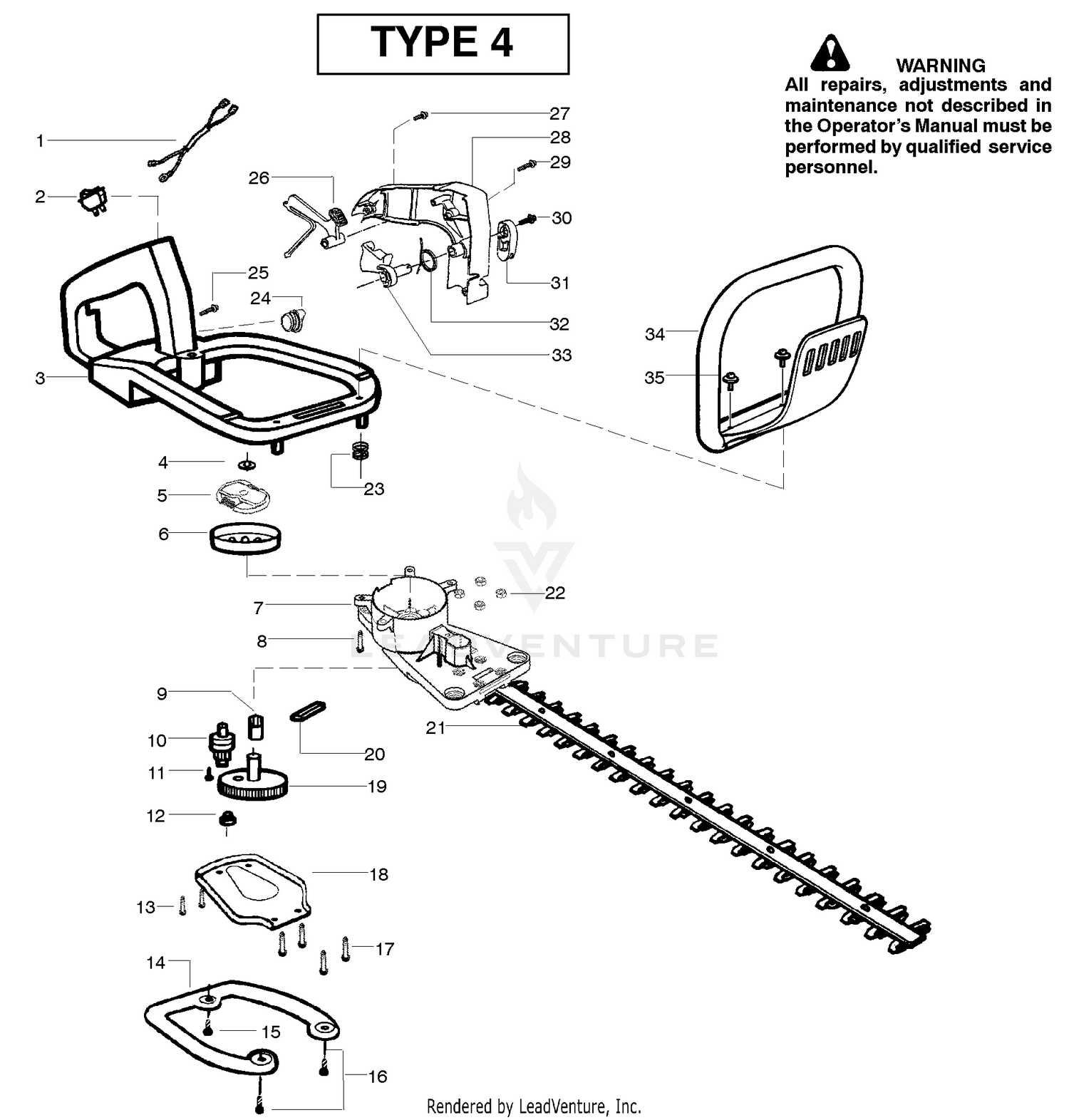

Cutting Equipment Type 4

Cutting Equipment Type 4

Parts (33)

RefPart NumberDescription
1 8-2810 DISCONTINUED Price: Call Us
2 3254-4 WASHER-LOCK/INT Price: $0.34
2 530029954 Switch-Ignition Price: $4.99
3 530071655 HANDLE This part replaces 530071656. Price: $24.99
4 530015611 Washer-Clutch Price: $1.99
5 530057740 CLUTCH ASSY This part replaces 530071803. Price: $14.99
6 530150583 Assy-Drum Price: $8.99
8 530015886 Screw Price: $1.99
9 530016013 Bearing-Gear Price: $2.99
10 530096009 Assy-Pinion Price: $14.99
11 530015805 Screw Price: $1.99
12 530032121 Bushing-Blade Price: $2.99
13 530015940 Screw Price: $1.99
14 530036046 Plate-Isolator Price: $4.99
15 530015849 Screw Price: $1.99
16 530015934 Screw Price: $1.99
17 530016472 Screw Price: $2.99
18 530029916 Cover-Gear Box Plate Price: $2.99
20 530029948 Seal-Blade (Felt) Price: $1.99
21 530403228 Assy-Blade 19" Price: $29.99
22 545009101 Nut Price: $1.99
23 530029946 Spring Price: $1.99
24 577858601 FUEL CAP ASSY W/RET LW PRM This part replaces 530014871. Price: $3.99
25 530016406 Screw Price: $1.99
26 530053900 Lockout-Throttle Price: $1.99
27 530015934 Screw Price: $1.99
28 545008001 Kit-Handle Cover Price: $14.99
29 530015940 Screw Price: $1.99
30 530015775 Screw Price: $1.99
31 530057818 Lever-Trigger Price: $2.99
32 530036123 Spring-Trigger Price: $1.99
33 530053884 Trigger Price: $1.99
34 530094992 Handle-Front Price: $6.99
