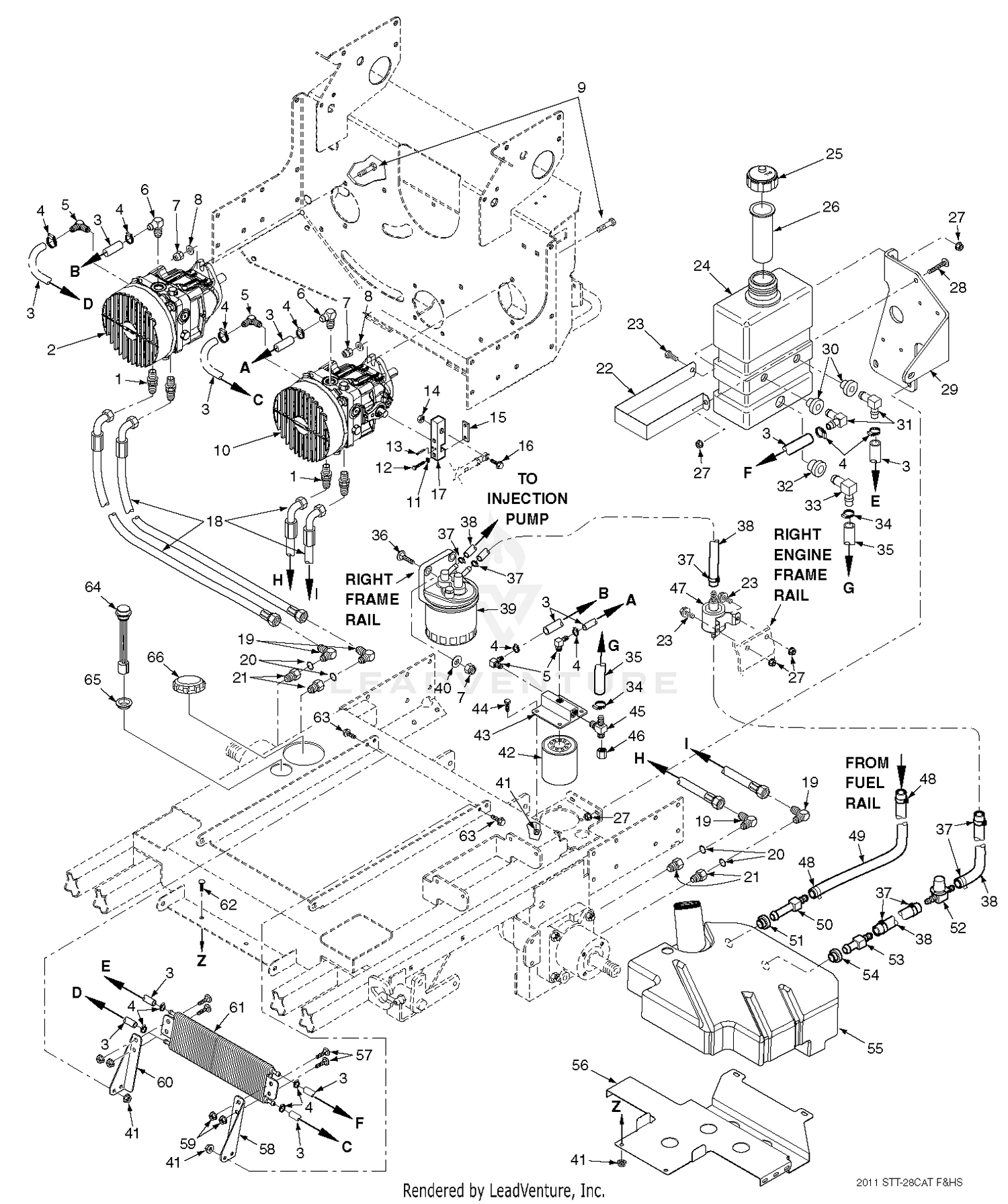

| Ref | Part Number | Description |
|---|
| 1 |
48572-06 |
Union, 3/4"-16 JIC x O-Ring Price: Call Us |
| 2 |
483100 |
Pump, Right Hand, BDP 16A Price: Call Us |
| 4 |
48136-13 |
Hose Clamp, 0.69 dia. Price: Call Us |
| 5 |
482266-01 |
Elbow, 90 Deg - 9/16 O-Ring x 3/8" Hose Price: Call Us |
| 6 |
482266-02 |
Elbow, 90 Deg - 3/4 O-Ring x 3/8" Hose Price: Call Us |
| 7 |
04021-09 |
Nut, Hex Elastic Stop 3/8-16 Price: Call Us |
| 8 |
04043-04 |
Flatwasher, 3/8" (.391 x .938 x .105) Grade 8 Price: Call Us |
| 9 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 10 |
483101 |
Pump, Left Hand, BDP-16A Price: Call Us |
| 11 |
04030-02 |
Lockwasher, 1/4" Spring Price: Call Us |
| 12 |
04001-04 |
Bolt, Hex Head, 1/4-20 x 1-1/2" Price: Call Us |
| 13 |
04060-09 |
Roll Pin, Spring 3/16 x 3/4" Price: Call Us |
| 14 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 15 |
422694 |
Clamp Plate, Pump Control Price: Call Us |
| 16 |
04001-21 |
Bolt, Hex Head, 3/8-16 x 1-3/4" Price: Call Us |
| 17 |
481793 |
Block, Pump Control Price: Call Us |
| 18 |
484458 |
Hose Assembly This part replaces 483805. Price: Call Us |
| 19 |
48350-01 |
Elbow, 90 Degree, 7/8-14 THD Price: Call Us |
| 20 |
48603-02 |
O-Ring Price: Call Us |
| 21 |
48938-02 |
Bushing, 7/8-14 JIC x 3/4-16 O-Ring Price: Call Us |
| 22 |
423513 |
Strap, Hydraulic Tank Price: Call Us |
| 23 |
04001-01 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 25 |
481164 |
Cap, Hydraulic Tank Price: Call Us |
| 26 |
481507 |
Insert, Filler Neck Price: Call Us |
| 27 |
04021-08 |
Nut, Hex Elastic Stop 1/4-20 Price: Call Us |
| 28 |
04010-10 |
Screw, Phillips Head, 1/4-20 Price: Call Us |
| 29 |
424942 |
Support Bracket, Hydraulic Tank Price: Call Us |
| 30 |
482571 |
Bushing, .56 Dia. Viton Price: Call Us |
| 31 |
482572 |
Elbow, 90 Degree .38 Hose Price: Call Us |
| 32 |
482573 |
Bushing, .78 Dia. Viton Price: Call Us |
| 33 |
482574 |
Elbow, 90 Degree Price: Call Us |
| 34 |
48136-05 |
Clamp, Hose Price: Call Us |
| 36 |
04003-22 |
Bolt, Carraige 3/8-16 x 1" Price: Call Us |
| 37 |
48059-04 |
Clamp, Fuel Hose 5/16" ID Price: Call Us |
| 41 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 42 |
48758 |
Oil Filter Price: Call Us |
| 43 |
482417 |
Oil Filter Base Price: Call Us |
| 44 |
04001-09 |
Bolt, Hex Head 5/16-18 x1.0" Zinc Price: Call Us |
| 45 |
482477 |
Tee, 3/4 O-Ring x JIC x 1/2" Hose Price: Call Us |
| 46 |
48571-02 |
Cap Price: Call Us |
| 47 |
483768 |
Fuel Pump, Cat Price: Call Us |
| 48 |
48059-03 |
Clamp, 3/16" ID Price: Call Us |
| 50 |
481778 |
Hose Fitting Price: Call Us |
| 51 |
482571 |
Bushing Price: Call Us |
| 52 |
481308 |
Valve, Fuel Shutoff Price: Call Us |
| 53 |
483749 |
Fitting, Hose with Screen Price: Call Us |
| 54 |
482571 |
Bushing Price: Call Us |
| 56 |
424914 |
Support Bracket, Fuel Tank Price: Call Us |
| 57 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 58 |
424884 |
Mounting Bracket - LH, Oil Cooler Price: Call Us |
| 59 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 60 |
424885 |
Mounting Bracket - RH, Oil Cooler Price: Call Us |
| 61 |
482505 |
Oil Cooler Price: Call Us |
| 62 |
04003-12 |
Bolt, Carraige 5/16-18 x 3/4" Price: Call Us |
| 63 |
04017-16 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 65 |
484242 |
Seal, Fuel Gauge Price: Call Us |
