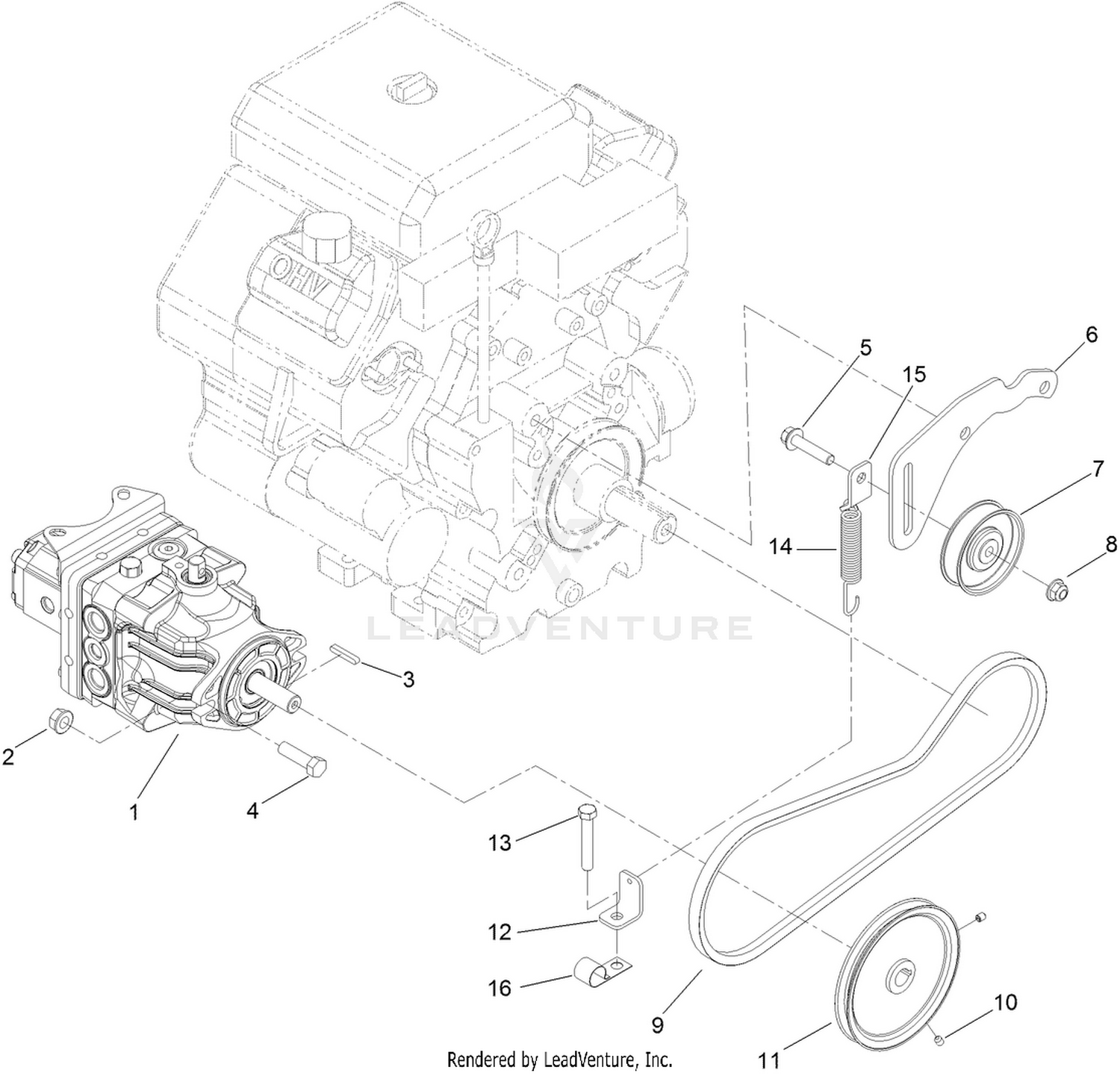

Hydrostat Pump Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 131-4754 | HYDROSTAT AND PUMP ASM Price: $2,134.51 |
| 2 | 32128-37 | NUT-HF Price: $3.63 |
| 3 | 103-2739 | KEY Price: $1.79 |
| 4 | 324-6 | SCREW-HH Price: $0.81 |
| 5 | 3234-19 | SCREW-HHF Price: $1.73 |
| 6 | 105-1085-03 | SUPPORT-IDLER Price: $14.37 |
| 7 | 112426 | PULLEY-IDLER Price: $24.99 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 107-7513 | V-BELT Price: $21.21 |
| 10 | 3245-7 | SCREW-SET Price: $0.34 |
| 11 | 105-0988 | PULLEY-DRIVE Price: $58.66 |
| 12 | 107-7583 | BRACKET-L Price: $12.86 |
| 13 | 104-3396 | SCREW-HH Price: $0.75 |
| 14 | 106-4502 | SPRING-SCRAPER Price: $20.99 |
| 15 | 107-7588 | BRACKET-SPRING Price: $12.29 |
