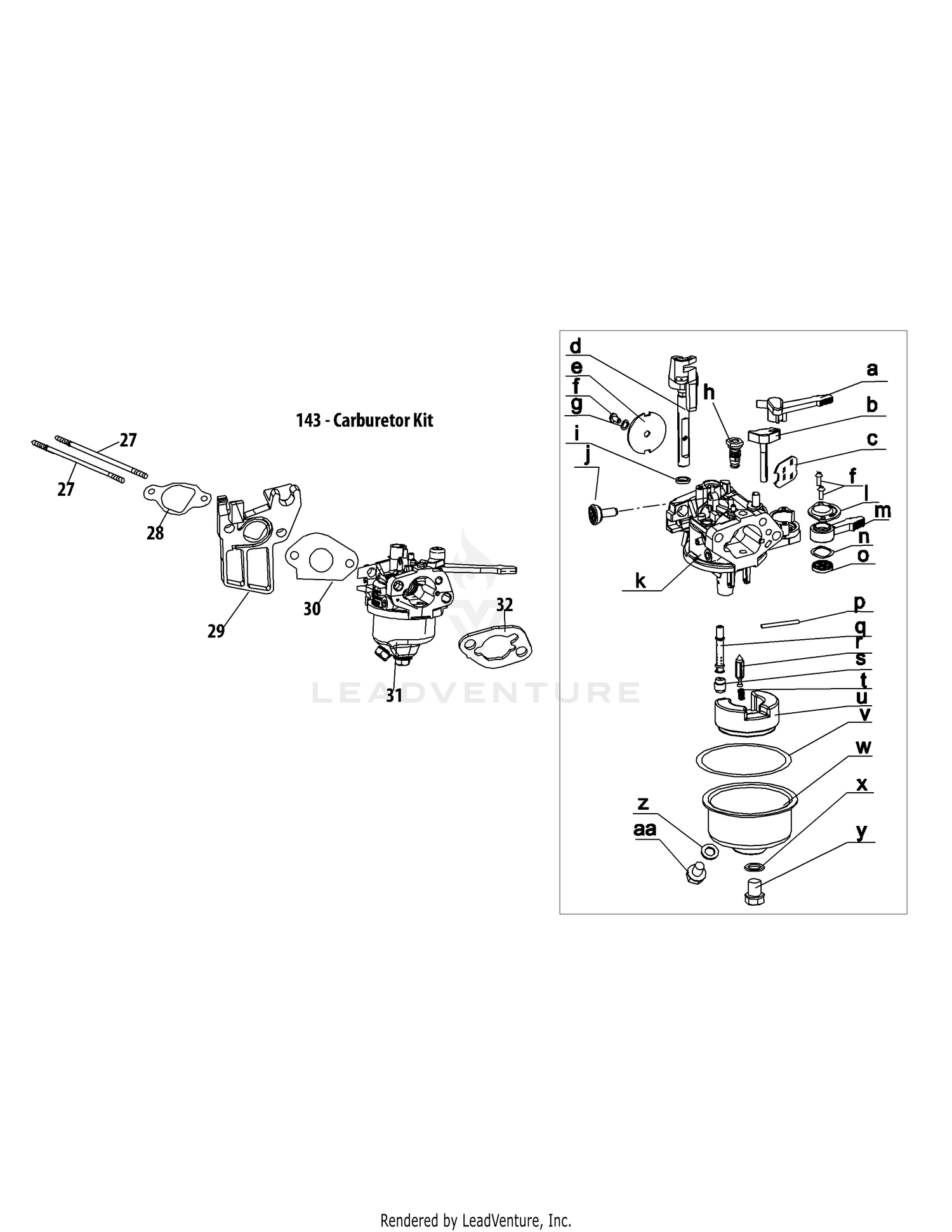

| Ref | Part Number | Description |
|---|
| a |
None |
Control Lever, Choke |
| b |
None |
Choke Shaft |
| c |
None |
Choke Plate |
| d |
None |
Throttle Shaft |
| e |
None |
Throttle Plate |
| f |
710-05469 |
Screw M3×6 Price: $3.56 |
| g |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| h |
993-00118 |
ORIFICE PILOT PLUG #46 Not Available This part replaces 793-00118. Price: |
| i |
None |
Gasket, Throttle Plate |
| j |
None |
Idle Speed Adjusting Screw |
| k |
None |
Carburetor Body |
| l |
None |
Fuel Shutoff Cover |
| m |
None |
Fuel Shutoff Lever |
| n |
None |
Fuel Shutoff Washer |
| o |
None |
Fuel Shutoff Valve |
| p |
None |
Float Pin |
| q |
None |
Emulsion Tube |
| r |
None |
Needle Valve |
| s |
None |
Main Jet |
| t |
None |
Needle Valve Spring |
| u |
None |
Float |
| v |
951-11589 |
Fuel Bowl Gasket Price: $6.04 |
| w |
None |
Fuel Bowl |
| x |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| y |
710-04945 |
Fuel Bowl Mounting Bolt Price: $3.66 |
| z |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| 27 |
710-05101 |
Stud M6×110 Price: $3.71 |
| 28 |
751P11567B |
CARBURETOR INSULATOR GASKET This part replaces 951-11567. Price: $1.73 |
| 29 |
751P11568A |
INSULATOR This part replaces 951-11568. Price: $3.05 |
| 30 |
751P12005B |
CARBURETOR GASKET This part replaces 951-11569A. Price: $4.89 |
| 31 |
951-05106 |
Carburetor Assembly This part replaces 651-05106. Price: $85.66 |
| 32 |
951-11571 |
CARBURETOR GASKET PLATE Price: $4.83 |
