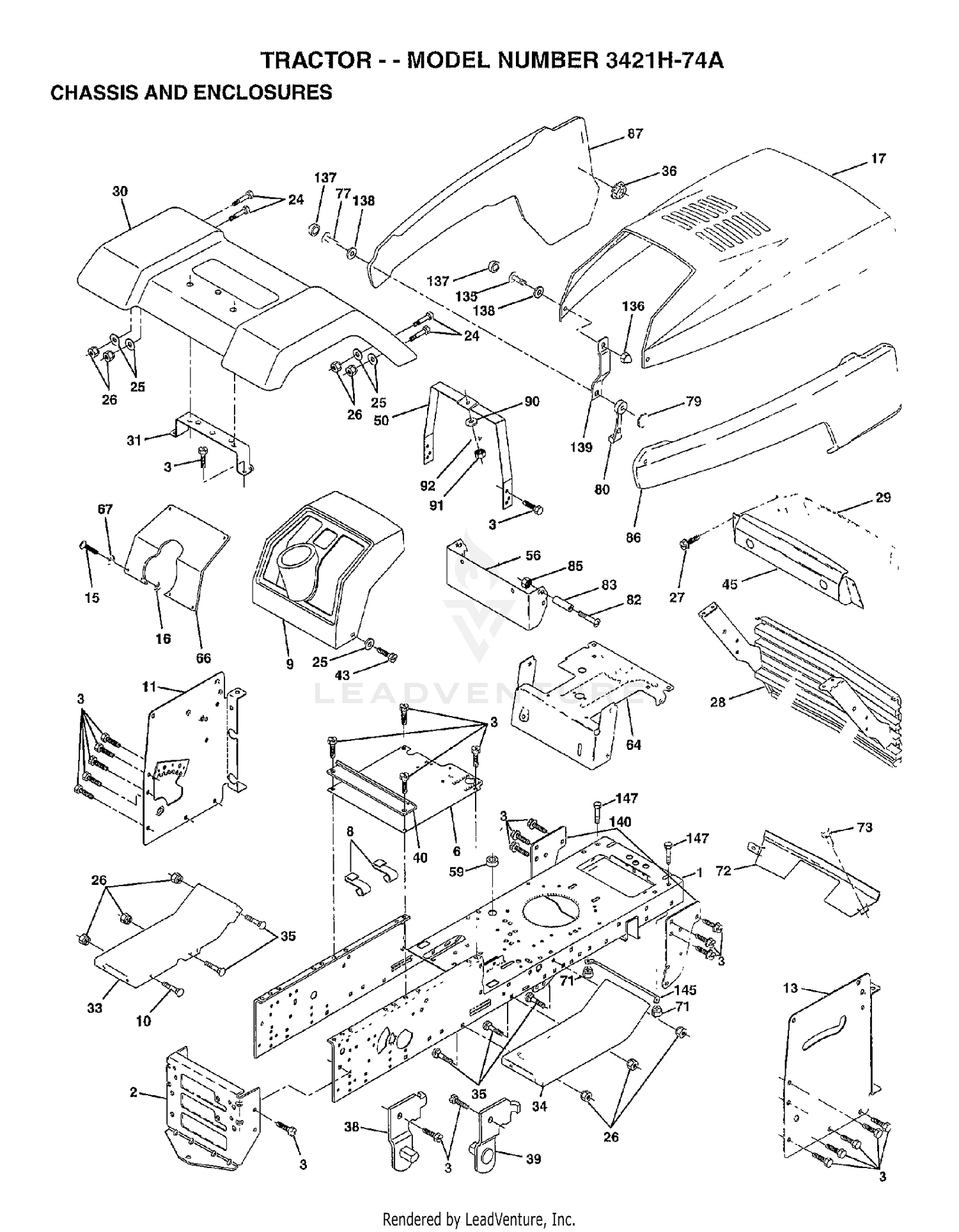

| Ref | Part Number | Description |
|---|
| 1 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 1 |
TBD |
Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 2 |
532145009 |
KIT.DRAWBAR.SERVICE This part replaces 532140356. Price: $37.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 3 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 4 |
32146-13 |
NUT-HEX Price: $3.49 |
| 5 |
3290-216 |
WASHER Price: $3.83 |
| 6 |
3213-3 |
SCREW-HH Price: $1.02 |
| 6 |
532155923 |
SADDLE FLAT Price: $9.99 |
| 7 |
19-3940 |
DISCONTINUED Price: Call Us |
| 8 |
32128-15 |
NUT-LOCK, FLANGE Price: $3.86 |
| 8 |
532126471 |
CLIP,INSULATOR Price: $2.99 |
| 9 |
3705444 |
Mount-Upper Price: Call Us |
| 9 |
532140398 |
Dash Black Yard Pro (AYP part number) Price: $129.99 |
| 10 |
32121-46 |
DISCONTINUED Price: Call Us |
| 10 |
872110608 |
BOLT D This part replaces 872140608. Price: $3.99 |
| 11 |
14009321 |
Lower Mount Price: Call Us |
| 11 |
532145218 |
Panel Pnt Dash Lh (AYP part number) Price: $22.99 |
| 12 |
14009322 |
Spacer Price: Call Us |
| 13 |
3763763 |
Lock Price: Call Us |
| 13 |
TBD |
Price: Call Us |
| 14 |
325-14 |
SCREW-HH Price: $2.64 |
| 15 |
19-3340 |
DISCONTINUED Price: Call Us |
| 15 |
874180512 |
SCREW Price: $3.99 |
| 16 |
3211-4 |
SCREW-HH Price: $1.02 |
| 16 |
873310500 |
NUT Price: $3.99 |
| 17 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 18 |
325-6 |
SCREW-HH Price: $1.42 |
| 19 |
19-3300 |
RH FRONT ENG MT WA Price: $746.22 |
| 24 |
874780616 |
BOLT Price: $3.99 |
| 25 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 26 |
873680600 |
LOCKNUT This part replaces 532062336. Price: $1.99 |
| 27 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030814. Price: $3.99 |
| 28 |
TBD |
Price: Call Us |
| 29 |
532146459 |
Lens/Clip Asm Bar Clear (AYP part number) Price: Call Us |
| 31 |
532139976 |
BRACKET.SUPPORT.FENDER Price: $7.99 |
| 35 |
872110606 |
BOLT Price: $2.99 |
| 36 |
532108067 |
PAL NUT LT Price: $3.10 |
| 38 |
532139886 |
BRACKET LH PIVOT Price: $5.99 |
| 39 |
532139887 |
BRACKET RH PIVOT Price: $5.99 |
| 40 |
532139977 |
Price: $5.46 |
| 43 |
817000616 |
SCREW 3/8-16X1 This part replaces 817490616. Price: $3.99 |
| 45 |
532147717 |
Price: Call Us |
| 50 |
532145205 |
Bracket, Support Dash (AYP part number) Price: $7.99 |
| 56 |
TBD |
Price: Call Us |
| 59 |
532009151 |
Grommet (AYP part number) This part replaces 532110436. Price: $2.99 |
| 64 |
532150272 |
DASH LOWER LT Price: $17.99 |
| 67 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.99 |
| 71 |
873680400 |
NUT.CROWNLOCK.1/4 Price: $2.99 |
| 73 |
817580408 |
Screw Tap Tite 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 77 |
871191008 |
SCREW.PNHD.10-24 This part replaces 874191008. Price: $3.99 |
| 79 |
532002029 |
NUT.WELD.#10-24 (2 2) This part replaces 532124005. Price: $2.99 |
| 80 |
532109808 |
LATCH.HOOD. Price: $2.99 |
| 82 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $5.99 |
| 85 |
873271000 |
NUT This part replaces 532054509. Price: $2.99 |
| 90 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 91 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 92 |
810040400 |
LOCKWASHER Price: $3.99 |
| 135 |
874291006 |
SCREW 10-24X3/8 Price: $2.99 |
| 136 |
539108086 |
NUT 10-24 ACORN ZD This part replaces 532060867. Price: $1.99 |
| 137 |
532110356 |
SNAP CAP LT Price: $3.99 |
| 138 |
532110357 |
Price: $2.99 |
| 139 |
532150195 |
Price: $2.99 |
| 140 |
532158418 |
BRACKET SUSPENSION FRONT Price: $6.99 |
| 145 |
532409167 |
ROD.PIVOT.HOOD This part replaces 532156524. Price: $8.99 |
| 147 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
