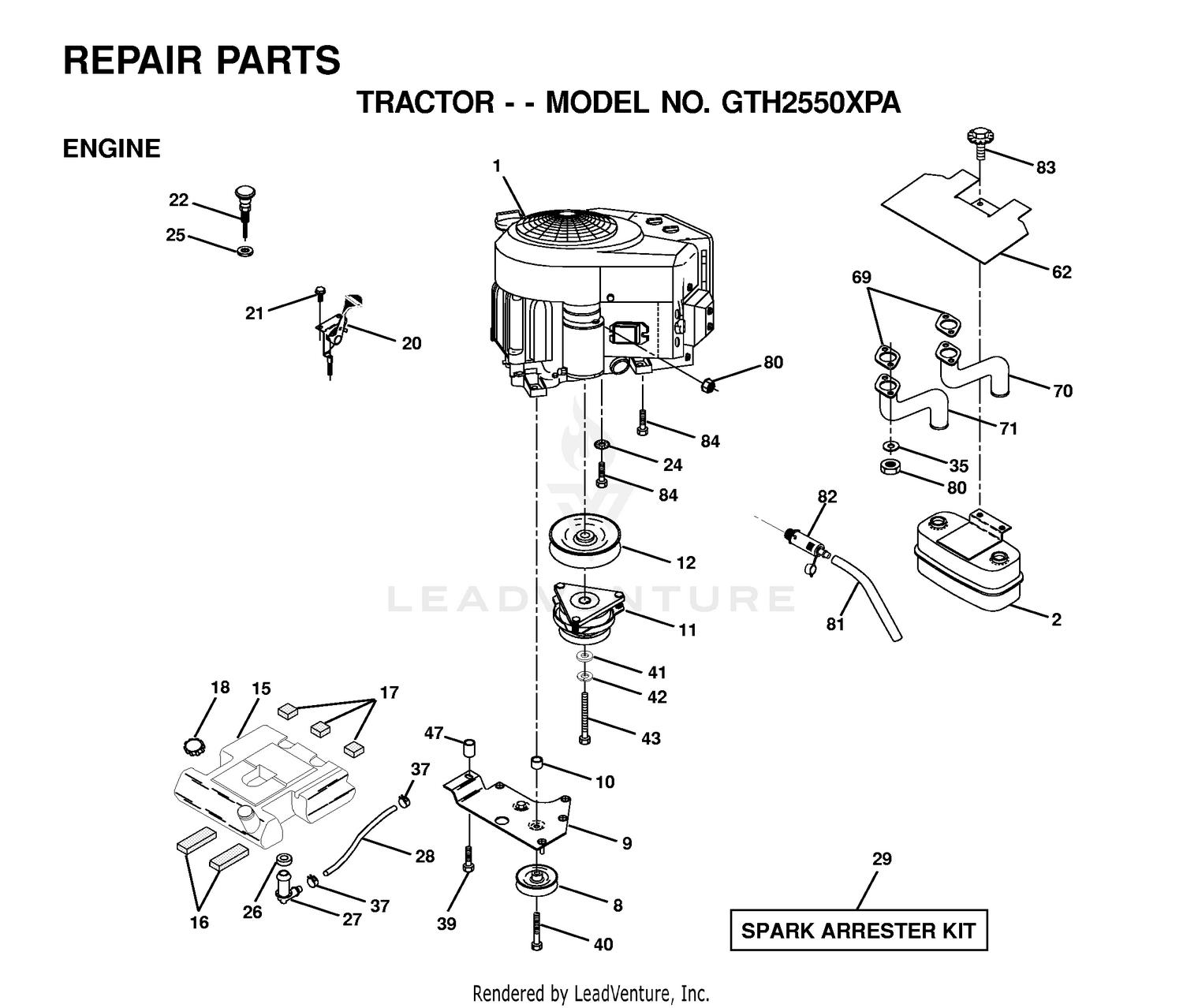

| Ref | Part Number | Description |
|---|
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 8 |
532139123 |
PULLEY.IDLER.V. This part replaces 532121361. Price: $32.99 |
| 9 |
532177748 |
KEEPER ASM BELT ENGINE Price: $12.99 |
| 10 |
532175287 |
BUSHING Price: $17.99 |
| 12 |
532143996 |
PULLEY ENG VGT ELECT CLUTCH Price: $37.99 |
| 15 |
532151346 |
FUEL TANK 3.5G Price: $84.99 |
| 16 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 17 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 18 |
532161493 |
CAP, FUEL GUAGE Price: $30.99 |
| 20 |
532178147 |
CONTROL.THROTTLE.COBRA.42"BLK. Price: $29.99 |
| 21 |
532189747 |
SCREW.HI-LO#13-16X5/8 This part replaces 532164863. Price: $14.99 |
| 22 |
532175441 |
CHOKE CONTROL This part replaces 532178148. Price: $24.99 |
| 24 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 25 |
873920600 |
Nut Keps 3/8 - 24 UNF Price: $3.99 |
| 27 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 28 |
532008542 |
FUEL LINE 42" This part replaces 532007834. Price: $5.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 35 |
810010500 |
WASHER Price: $3.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 39 |
596564004 |
SCREW TT 3/8-16X2.31 UNC This part replaces 817490636. Price: $1.99 |
| 40 |
817490664 |
Screw TT 3/8-16 x 4 unc Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 47 |
532175288 |
BUSHING Price: $4.99 |
| 62 |
532176252 |
HEAT SHIELD Price: $5.59 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
532175766 |
TUBE EXHAUST LH Price: $48.99 |
| 71 |
532175767 |
TUBE.EXHAUST.KAWASAKI.RH Price: $54.99 |
| 80 |
596433401 |
Nuts This part replaces 532163305. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 83 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 84 |
817060624 |
SCREW 3/8-16 X 1-1/2 Price: $4.99 |
