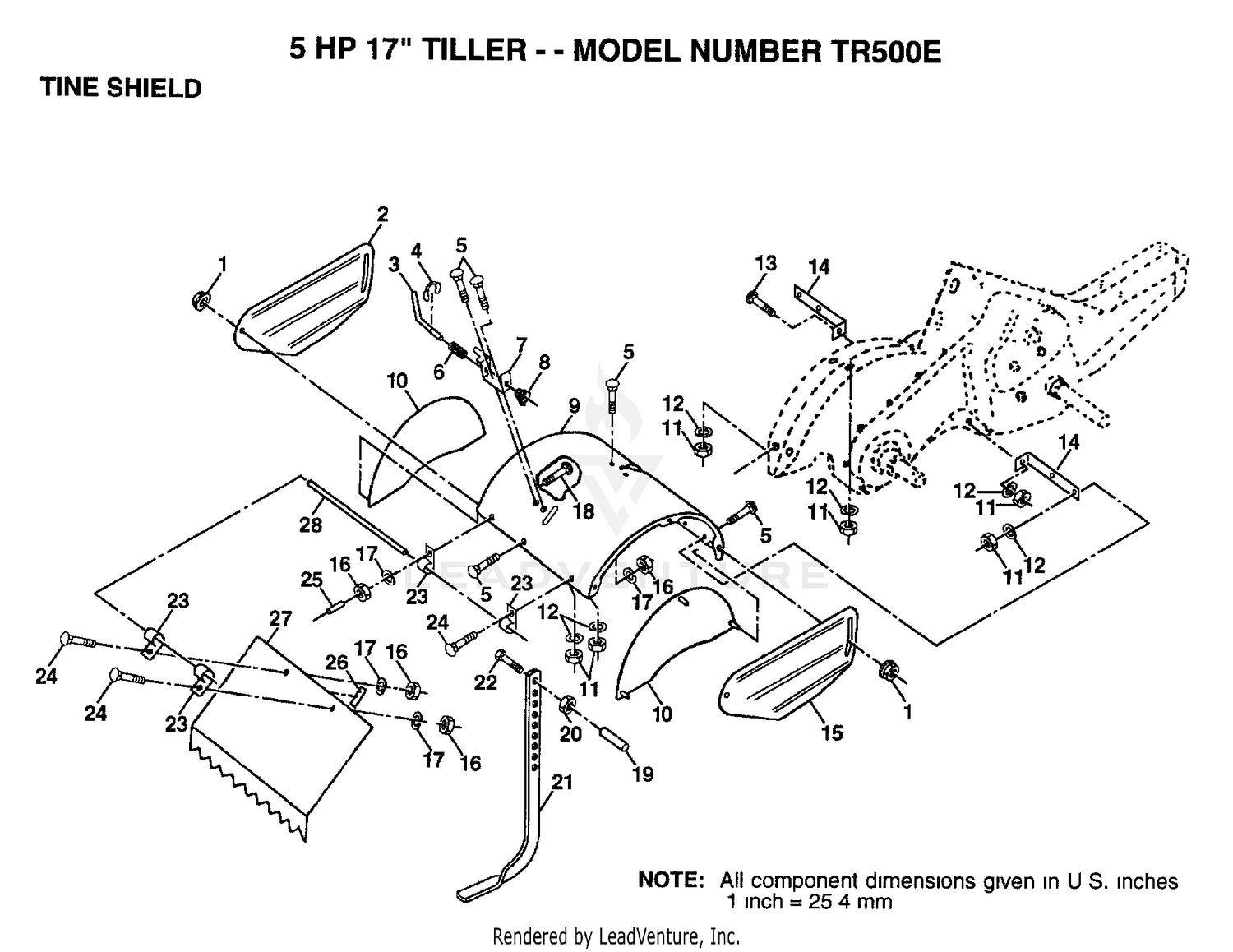

TINE SHIELD
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-3987 | HOOD ASM Price: $1,626.91 |
| 1 | 98000129 | NUT Price: Call Us |
| 2 | 104086X419 | SHIELD.SD.OUT.LH Price: Call Us |
| 2 | 66-1210 | DECAL Price: $27.06 |
| 3 | 32128-20 | NUT-HF Price: $0.99 |
| 3 | 8393J | STAKE PIN TI Price: Call Us |
| 4 | 12000036 | KLIP RING TI Price: Call Us |
| 4 | 3230-27 | SCREW-CARR Price: $0.75 |
| 5 | 72140506 | BOLT Price: Call Us |
| 5 | 76-2260 | PAD-FOOTREST Price: $8.40 |
| 6 | 3229-1 | BOLT-CARR Price: $3.39 |
| 6 | 8394J | SPRING TI Price: Call Us |
| 7 | 76-2200-03 | FOOTREST-PEDAL, TRACTION Price: $42.73 |
| 7 | 8392J | LATCH BRACKET TI Price: Call Us |
| 8 | 109230X | SPRING CRT Price: Call Us |
| 8 | 3234-17 | SCREW-HHF Price: $0.72 |
| 9 | 102326X419 | SHLD TINE Price: Call Us |
| 9 | 93-6779-03 | FOOTREST-RH Price: $85.60 |
| 10 | 104085X419 | SUB= 104085X366 Price: Call Us |
| 10 | 32128-33 | NUT-HF Price: $0.25 |
| 11 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 11 | 93-6778-01 | FENDER-RH Price: $334.53 |
| 12 | 10040500 | LOCKWASHER Price: Call Us |
| 12 | 32128-44 | NUT Price: $2.69 |
| 13 | 104-4074 | STUD-LATCH Price: $33.87 |
| 13 | 72110510 | BOLT Price: Call Us |
| 14 | 124343X | BRKT SHIELD TINE Price: Call Us |
| 14 | 3290-467 | PIN-HAIR Price: $0.27 |
| 15 | 104101X419 | SHIELD.SD.OUT.RH Price: Call Us |
| 15 | 32104-82 | SCREW-HHF Price: $0.95 |
| 16 | 104-4062-01 | SHIELD-FRONT, RH Price: $27.14 |
| 16 | 73220400 | SUB= 50675 Price: Call Us |
| 17 | 10040400 | LOCKWASHER Price: Call Us |
| 17 | 93-6780-03 | HINGE ASM Price: $51.74 |
| 18 | 3230-2 | BOLT-CARR Price: $0.47 |
| 18 | 72040410 | BOLT Price: Call Us |
| 19 | 102701X | GRIP CRT Price: Call Us |
| 19 | 256-320 | BUSHING-NYLON Price: $7.44 |
| 20 | 73220600 | NUT.HEX.3/8-16UNC Price: Call Us |
| 20 | 93-6742-03 | BRACKET-HOOD, PIVOT Price: $12.30 |
| 21 | 102156X500 | STAKE DEPTH 16 Price: Call Us |
| 21 | 3217-6 | NUT-HEX Price: $1.19 |
| 22 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 22 | 74930632 | BOLT Price: Call Us |
| 23 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 23 | 4440J | HINGE CRT Price: Call Us |
| 24 | 72140404 | BOLT Price: Call Us |
| 24 | 83-8510-01 | BRACKET-FENDER, LEFT Price: $24.64 |
| 25 | 6712 | J VINYL CAP TI Price: Call Us 6712 J |
| 25 | 83-9800-01 | GRASS SHIELD-FRONT, LH Price: $28.36 |
| 26 | 109227X | PAD IDLER TI Price: Call Us |
| 26 | 94-5056 | DECAL Price: $7.84 |
| 27 | 102695X419 | SUB= 102695X366 Price: Call Us |
| 27 | 93-6776-01 | FENDER-LH Price: $317.84 |
| 28 | 93-7267 | DECAL-BRAKE Price: $6.37 |
| 29 | 83-9710-03 | FOOTREST-PEDAL, TRACTION Price: $78.54 |
| 30 | 83-9840 | PAD-FOOT Price: $60.60 |
| 31 | 322-3 | SCREW-HH Price: $0.79 |
| 32 | 3234-17 | SCREW-HHF Price: $0.72 |
| 34 | 104-3968-03 | BRACKET-HOOD Price: $21.11 |
| 35 | 3234-5 | SCREW-HHF Price: $0.42 |
| 36 | 104-4078 | COLLAR-LATCH Price: $33.94 |
| 37 | 104-4079 | BRACKET-SPRING Price: $12.32 |
| 38 | 104-4080 | SPRING-EXTENSION Price: $23.06 |
| 39 | 3290-360 | SCREW-HH Price: $4.34 |
