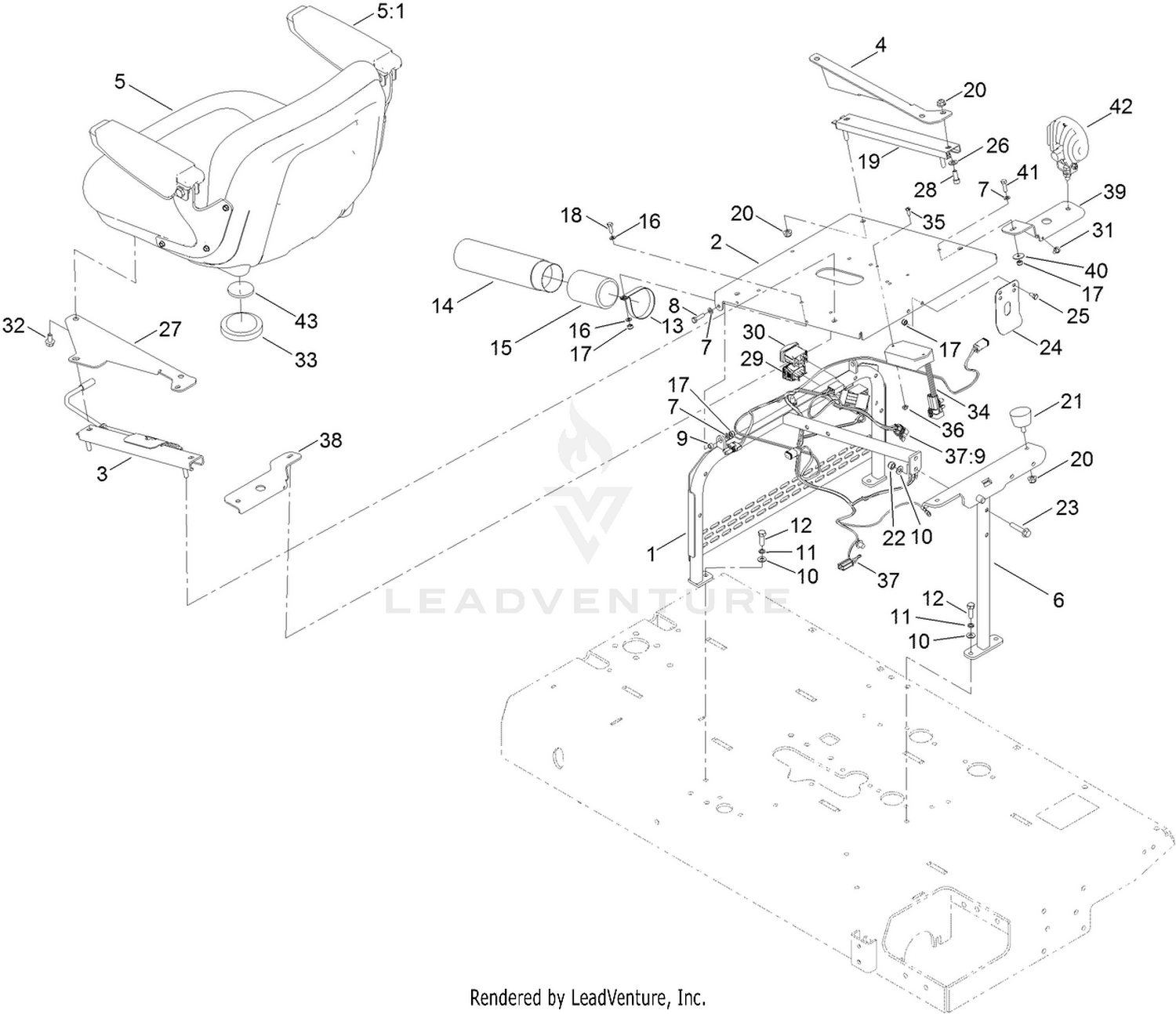

| Ref | Part Number | Description |
|---|
| 1 |
131-6449-03 |
SEAT SUPPORT Price: $83.60 |
| 2 |
131-6447-03 |
SEAT PAN Price: $21.97 |
| 3 |
133-8896 |
SEAT ADJUSTER LEVER ASM Price: $97.30 |
| 4 |
131-6448-03 |
BRACKET-SEAT, RH Price: $16.38 |
| 5 |
133-1729 |
SEAT ASSEMBLY Price: $287.63 |
| 6 |
132-4751-01 |
SUPPORT-FRAME, REAR Price: $57.55 |
| 7 |
09472 |
WASHER-PLAIN Price: $1.25 |
| 8 |
ZBH1F025U |
HEX HD.BOLT M6*25 Price: $1.38 |
| 9 |
88-7860 |
SPACER Price: $12.31 |
| 10 |
09475 |
WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40 |
| 11 |
03469 |
WASHER M8 SC SPRING Price: $1.40 |
| 12 |
03162 |
STEEL BOLT Price: $1.39 |
| 13 |
107-1865 |
R-Clamp Price: $6.86 |
| 14 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 15 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 16 |
ZWP1F000U |
PLAIN WASHER M6 Price: $1.40 |
| 17 |
09438 |
NUT M6 X 1.5 PLAIN Price: $1.39 |
| 18 |
09362 |
SCREW M6 X 16 HEX HD ZINC Price: $1.42 |
| 19 |
92-8990 |
ADJUSTER-SLAVE Price: $54.82 |
| 20 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 21 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 22 |
09441 |
NUT M8 NYL INSERT T TYPE Price: $1.39 |
| 23 |
33104-040 |
SCREW-HHF Price: $1.36 |
| 24 |
66-2630 |
LATCH-SEAT Price: $18.77 |
| 25 |
09361 |
SETSCREW M6 X 12 Price: $1.40 |
| 26 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 27 |
132-4750-03 |
BRACKET-SEAT, LH Price: $16.38 |
| 28 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 29 |
120-2244 |
HOURMETER Price: $48.06 |
| 30 |
111-6576 |
SWITCH Price: $21.19 |
| 31 |
HY3966 |
STRAP CABLE Price: $1.34 |
| 32 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 33 |
100-3524 |
SWITCH-SEAT Price: $57.99 |
| 34 |
122-0423 |
MODULE-GROUND, MAGNETO Price: $154.34 |
| 35 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 36 |
110-3145 |
NUT-LOCK Price: $0.69 |
| 37 |
122-2353 |
HARNESS-WIRE, GREENS ROLLER This part replaces 122-0832. Price: $498.62 |
| 38 |
132-4806-03 |
LIGHT MOUNT Price: $12.76 |
| 39 |
132-4805-03 |
LIGHT MOUNT Price: $11.29 |
| 40 |
09263 |
WASHER 1/4 X 7/8 X .08" THK Price: $1.34 |
| 41 |
09363 |
SETSCREW M6 X 20 Price: $1.31 |
| 42 |
140-9270 |
LIGHT-LED, 25 MM This part replaces 133-8793. Price: $229.52 |
| 43 |
133-2797 |
DISC-PLUNGER Price: $2.07 |
