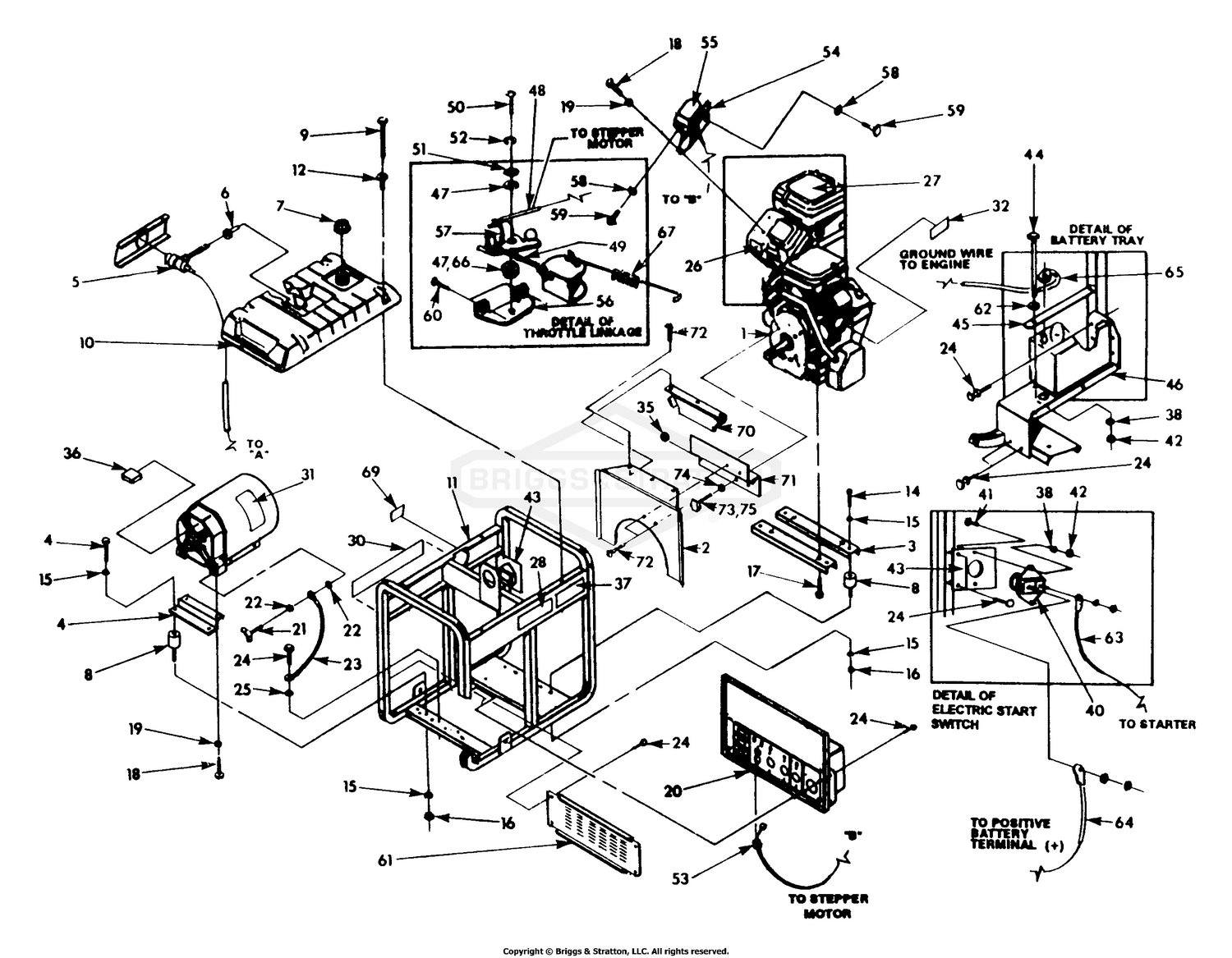

| Ref | Part Number | Description |
|---|
| 2 |
98216 |
Heat shield Price: Call Us |
| 3 |
77304 |
Engine support Price: Call Us |
| 4 |
78512GS |
SPPRT, ALT This part replaces 78512. Price: Call Us |
| 5 |
192980GS |
Kit, Valve This part replaces 80270. Price: $16.43 |
| 6 |
192980GS |
Kit, Valve This part replaces 78299. Price: $16.43 |
| 7 |
846987 |
CAP, Fuel Tank This part replaces 90878. Price: $17.57 |
| 8 |
35097GS |
MNT, VBRTN, 30 DURO This part replaces 35097. Price: $15.30 |
| 9 |
78831BGS |
HHMS, M6-1.0 x 60 (BLACK) This part replaces 78831B. Price: $1.60 |
| 10 |
93615GS |
ASSY, TANK, FUEL, TEST, 5 GAL This part replaces 93615. Price: $155.05 |
| 11 |
92558GS |
CRDL, VTWIN This part replaces 92558. Price: $644.00 |
| 12 |
83465GS |
GROMMET, TANK This part replaces 83465. Price: $3.39 |
| 20 |
94205 |
Control panel assembly Price: Call Us |
| 21 |
86494GS |
SCREW, M6-1.0 x 16 LG. WING This part replaces 86494. Price: $2.51 |
| 23 |
195373GS |
WIRE, Ground This part replaces 143-53621. Price: $1.85 |
| 24 |
313085GS |
SCREW This part replaces 86292. Price: $3.35 |
| 25 |
23762GS |
WASHER, #10 Ext. Shakeproof This part replaces 23762. Price: $2.64 |
| 26 |
79661H |
Engine decal Price: Call Us |
| 27 |
77581GS |
DECAL, AIR BOX, 16H VTW This part replaces 77581. Price: $16.05 |
| 28 |
194799GS |
DECAL, Danger This part replaces 92982. Price: $10.48 |
| 30 |
691092 |
SCREW This part replaces 94220. Price: $3.36 |
| 31 |
92758GS |
DECAL, DATA, DAYTON This part replaces 92758. Price: $2.40 |
| 32 |
77816GS |
DECAL, Hot Muffler This part replaces 77816. Price: $3.95 |
| 35 |
62265GS |
GROMMET, Rubber This part replaces 62265. Price: $6.69 |
| 36 |
84132GS |
ASSEMBLY, POWER REGULATOR This part replaces 84132. Price: $31.80 |
| 37 |
93826GS |
DECAL, START INSTRUCTIONS This part replaces 93826. Price: $1.85 |
| 40 |
77282 |
Starter Switch Price: Call Us |
| 43 |
78289GS |
BRACKET, STARTER SWITCH This part replaces 78289. Price: Call Us |
| 44 |
45000GS |
HHCS, 1/4-20 X 7 This part replaces 45000. Price: $8.15 |
| 45 |
5044951B |
CONTROL, Hydro, Right This part replaces 44951. Price: $43.40 |
| 46 |
84650 |
Battery tray Price: Call Us |
| 47 |
96716GS |
WASHER, Nylon This part replaces 96716. Price: $2.20 |
| 48 |
95920GS |
LINKAGE, Stepper Motor to Bell Crank This part replaces 95920. Price: $13.26 |
| 49 |
95921GS |
LINKAGE, Bell Crank to Throttle This part replaces 95921. Price: $9.70 |
| 53 |
62265GS |
GROMMET, Rubber This part replaces 62265. Price: $6.69 |
| 54 |
92102 |
Stepper motor Price: $15.52 |
| 55 |
200107GS |
BRACKET This part replaces 95350. Price: $25.49 |
| 56 |
95349GS |
PLATE, Adjust This part replaces 95349. Price: $5.79 |
| 57 |
95348GS |
BRACKET, Bell Crank This part replaces 95348. Price: $6.39 |
| 60 |
74041 |
M5-0.8 x 20mm Screw Price: Call Us |
| 61 |
94391 |
Louvered panel Price: Call Us |
| 63 |
18253621GS |
ASSY, Wire This part replaces 18253621. Price: $22.99 |
| 64 |
18353621GS |
WIRE-A, 6AWG, RED, #13, 597MM This part replaces 18353621. Price: $23.49 |
| 65 |
18453621GS |
WIRE-A, 8AWG, BLK, #55, 597MM This part replaces 18453621. Price: $27.49 |
| 66 |
96378GS |
SPACER This part replaces 96378. Price: $5.79 |
| 67 |
96717GS |
SPRING This part replaces 96717. Price: $49.81 |
| 69 |
73054 |
Fuel shut-off decal Price: $14.30 |
| 70 |
93074 |
Heat shield Price: Call Us |
| 71 |
98214GS |
BRCKT, HTSHLD This part replaces 98214. Price: $16.99 |
