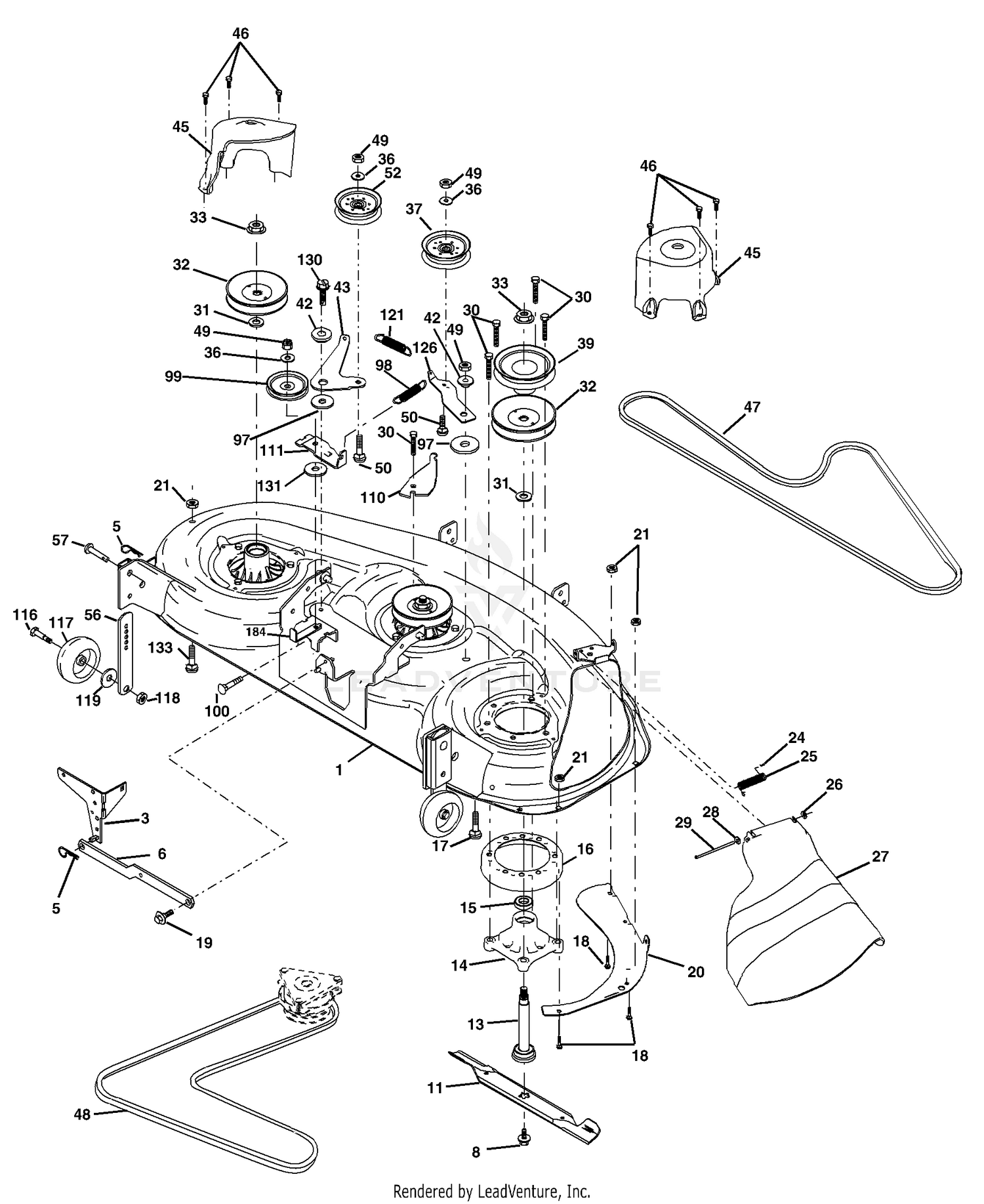

| Ref | Part Number | Description |
|---|
| 1 |
180359 |
Deck Weldment Mower 48 Price: Call Us |
| 3 |
138017 |
Bracket Asm., Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
174365 |
Bolt, 7/16 Asm. Blade Price: Call Us |
| 13 |
175147 |
Shaft Asm. Price: Call Us |
| 14 |
174358 |
Housing Mandrel 48" Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
99-9247 |
PLUG-DRAIN, OIL Price: $25.99 |
| 16 |
174493 |
Stripper, Mower Price: Call Us |
| 17 |
72110610 |
Bolt Rdhd Sq Neck 3/8-16 x 1.25 Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Hd. Shoulder 5/16-18 Price: Call Us |
| 20 |
174378 |
Baffle, Vortex Mower Price: Call Us |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 UNC Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
180655X428 |
Shield, Deflector Mower Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 30 |
173984 |
Screw, Thdroll, Washer Head Price: Call Us |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
177865 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 37 |
177968 |
Pulley, Idler, Flat Price: Call Us |
| 39 |
174375 |
Pulley, Idler, Driven Price: Call Us |
| 42 |
165723 |
Spacer, Retainer Price: Call Us |
| 43 |
174373 |
Arm, Idler Secondary Price: Call Us |
| 45 |
180806 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
180808 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
174368 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 50 |
72110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 52 |
175820 |
Pulley Idler Flat 46 Pri. Drive Price: Call Us |
| 56 |
155986 |
Bar Pnt Adjusting Wheel Gauge Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
179479 |
Spring Primary Drive Price: Call Us |
| 99 |
184058 |
Pulley Idler "V" Price: Call Us |
| 100 |
72110616 |
Bolt RDHD Sqnk 3/8-16 Unc x 2 Price: Call Us |
| 110 |
175016 |
Arm Spring Secondary Price: Call Us |
| 111 |
174610 |
Arm Spring Tension Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 UNC Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 121 |
174371 |
Spring Secondary Drive Price: Call Us |
| 126 |
174372 |
Arm, Idler, Primary Deck Price: Call Us |
| 130 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 131 |
19131606 |
Washer 13/32 x 1 x 6 Ga. Price: Call Us |
| 133 |
72110506 |
Bolt 5/16-18 x 3/4 Price: Call Us |
| 184 |
173979 |
Keeper Belt Idler Price: Call Us |
| 191 |
74780612 |
Bolt Fin Hex 3/8-16unc x 3/4 Gr. 5 Price: Call Us |
| 239 |
99-9115 |
SWITCH-PRESSURE, OIL Price: $51.98 |
| 276 |
99-9249 |
WASHER-SEAL Price: $10.99 |
| 479 |
99-9111 |
SCREW-HEX Price: $12.63 |
| 523 |
99-9259 |
DIPSTICK Price: $118.23 |
| 525 |
99-9260 |
TUBE-DIPSTICK Price: $132.50 |
| 818 |
99-9007 |
STUD-METRIC Price: $5.64 |
| 848 |
99-9113 |
NUT-HEX, METRIC Price: $8.43 |
| 941 |
99-9112 |
STUD-METRIC Price: $13.82 |
| 952 |
99-9114 |
NUT-HEX, METRIC Price: $12.05 |
| 1017 |
99-9116 |
SCREEN-PUMP, OIL Price: $88.59 |
| 1041 |
99-9120 |
GASKET-STRAINER, OIL Price: $6.91 |
| 1078 |
99-9121 |
GASKET-PAN, OIL Price: $62.92 |
| 1081 |
99-9265 |
SEAL-O-RING Price: $6.33 |
| 1084D |
99-9124 |
CONNECTOR Price: $9.21 |
| 181704 |
Replacement |
Mower, Complete Price: Call Us 181704 |
