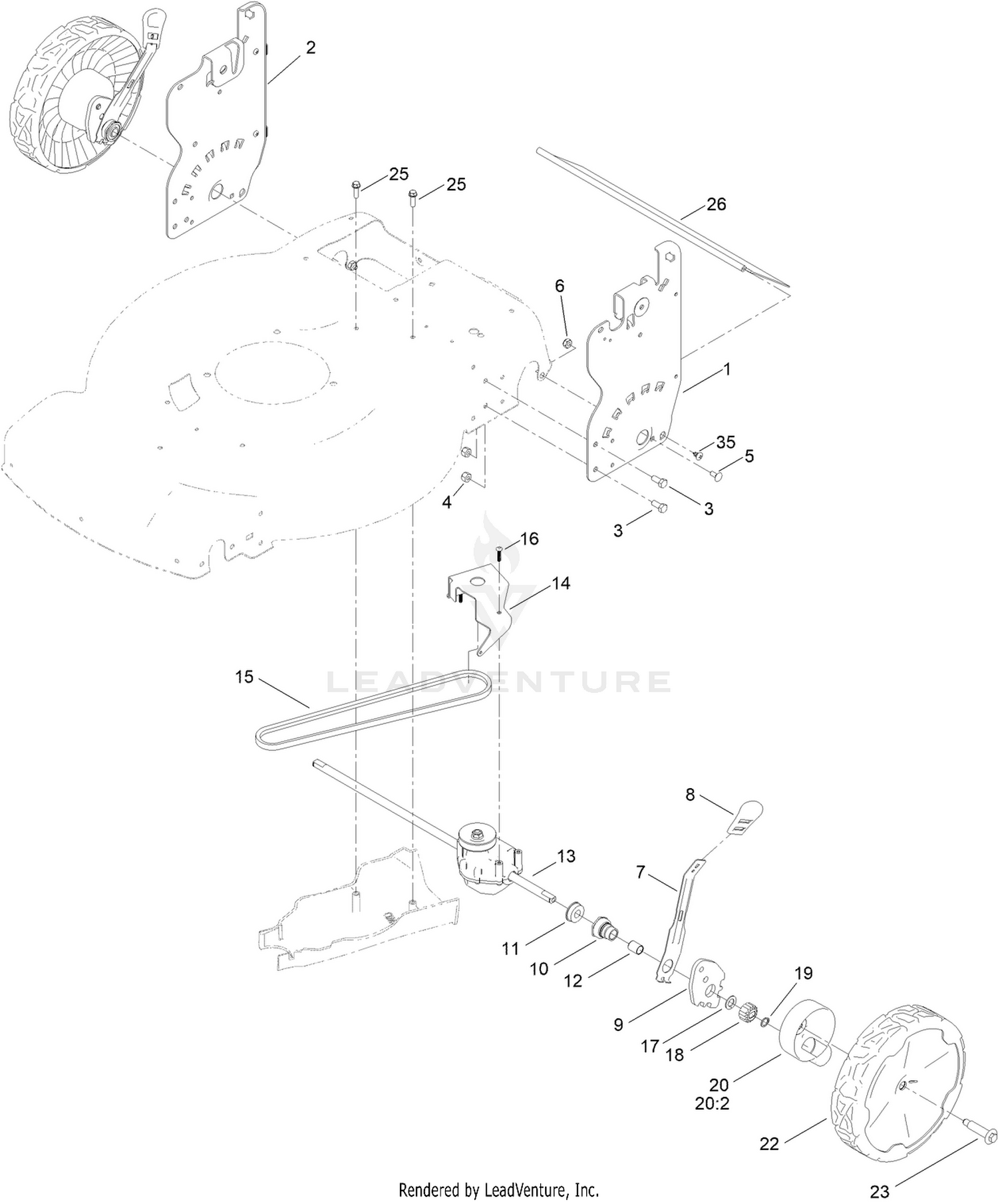

Rear Wheel and Height-of-Cut Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-5651-05 | PLATE-HOC, LH (ISO) Price: Call Us |
| 2 | 145-5650-05 | PLATE-HOC, RH (ISO) Price: Call Us |
| 3 | 137-3052 | SCREW-HH Price: $0.34 |
| 4 | 119-4038 | NUT-HEX Price: $0.31 |
| 5 | 100-1445 | BOLT-CARR Price: $0.33 |
| 6 | 139-1724 | NUT-LOCK Price: $0.32 |
| 7 | 132-4486 | ARM-SPRING Price: $9.32 |
| 8 | 110-0549 | KNOB-HOC Price: $1.08 |
| 9 | 139-5451 | ARM-PIVOT, REAR Price: $7.98 |
| 10 | 108-9779 | RETAINER-BUSHING, HOC Price: $9.09 |
| 11 | 104-8699 | BEARING-BALL Price: $3.28 |
| 12 | 108-9782 | BUSHING-SLEEVE Price: $2.32 |
| 13 | 139-6561 | TRANSMISSION-RWD Price: $75.32 |
| 14 | 114-7977-03 | BRACKET-TRANSMISSION Price: $8.85 |
| 15 | 140-4041 | V-BELT Price: $15.31 |
| 16 | 120-9676 | SCREW-PLASTITE Price: $0.34 |
| 17 | 110-7191 | WASHER-THRUST Price: $1.79 |
| 18 | 131-5399 | GEAR-PINION, 15T Price: $2.67 |
| 19 | 32151-61 | RING-RETAINING Price: $2.39 |
| 20 | 140-2362 | ASM-COVER, GEAR (DK GRAY) Price: $2.62 |
| 22 | 140-2350 | ASM-9.65" WHEEL, GEARED Price: $22.97 |
| 23 | 145-3899 | WHEEL BOLT Price: Call Us |
| 25 | 137-3099 | SCREW-PLASTITE, HWH Price: $0.61 |
| 26 | 139-6597 | SHIELD-TRAILING Price: $6.55 |
