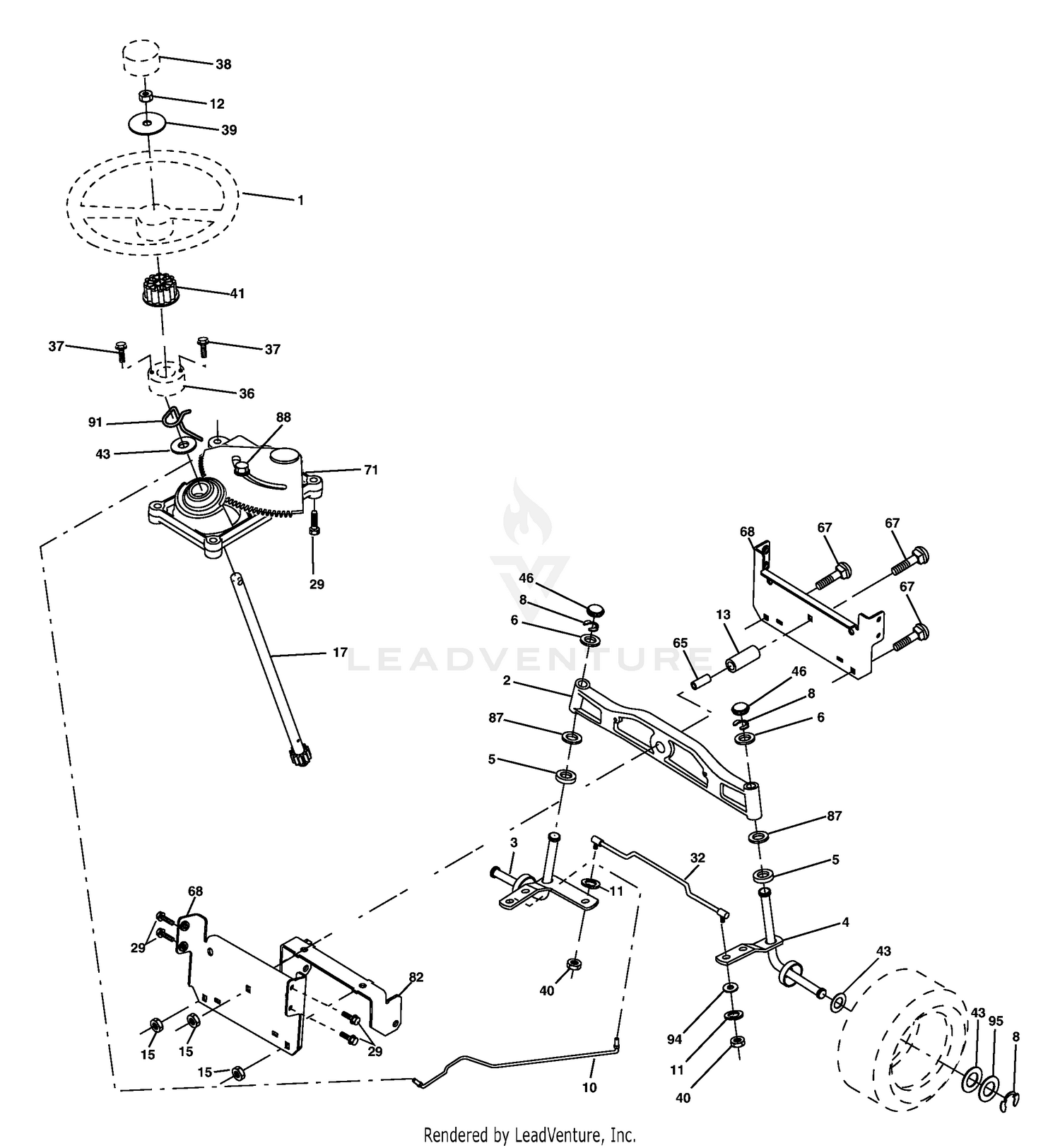

| Ref | Part Number | Description |
|---|
| 1 |
49-2640 |
SEAL-SHAFT Price: $14.83 |
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $142.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $112.99 |
| 2 |
56-6710 |
O-RING Price: $3.82 |
| 3 |
532169840 |
Spindle Asm LH Price: $17.99 |
| 3 |
60-5890 |
WASHER Price: $4.68 |
| 4 |
532169839 |
Spindle Asm RH Price: $17.99 |
| 4 |
94-3011 |
PLUG Price: $14.66 |
| 5 |
120-7576 |
WASHER-SEALING This part replaces 94-8160. Price: $27.14 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 6 |
95-4362 |
PLATE-FRONT Price: $403.21 |
| 7 |
95-4363 |
BACKPLATE Price: $310.18 |
| 8 |
812000029 |
Ring Klip #t5304-75 Price: $1.99 |
| 8 |
95-4364 |
BODY Price: $106.81 |
| 9 |
95-4365 |
GEAR-DRIVE Price: $341.00 |
| 10 |
532175121 |
Link Drag Price: $40.99 |
| 10 |
95-4366 |
GEAR-IDLER Price: $127.03 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 11 |
95-4368 |
PLATE-WEAR This part replaces 95-4367. Price: $109.69 |
| 12 |
873940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: $3.99 |
| 12 |
95-4368 |
PLATE-WEAR Price: $109.69 |
| 13 |
532136518 |
Spacer Brg Axle Front Price: $6.99 |
| 13 |
95-4368 |
PLATE-WEAR This part replaces 95-4369. Price: $109.69 |
| 14 |
95-4370 |
SCREW-CAP Price: $18.02 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.49 |
| 15 |
95-4371 |
PLATE-ADAPTOR Price: $448.65 |
| 16 |
95-4372 |
KEY Price: $20.53 |
| 17 |
532177883 |
Shaft Asm Strg Price: $67.99 |
| 17 |
95-4373 |
GEAR-FIT, SLIP Price: $69.20 |
| 29 |
817000612 |
Screw 3/8-16 x 3/4 Price: $2.99 |
| 32 |
532180580 |
Rod Tie Price: $99.99 |
| 36 |
532155108 |
KIT/BUSH This part replaces 532155105. Price: $3.99 |
| 37 |
532152927 |
Screw Price: $3.99 |
| 38 |
532193652 |
Insert Cap Strg Wh Price: $6.99 |
| 39 |
819183812 |
Washer 9/16 x 2-3/8 12 Ga. Price: $3.99 |
| 40 |
873540600 |
Nut Crownlock 3/8-24 Price: $1.49 |
| 41 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 43 |
532121749 |
Washer 25/32 x 1 1/4 x 16 Ga. Price: $1.99 |
| 46 |
532121232 |
Cap Spindle Fr Top Blk Price: $1.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $2.99 |
| 67 |
872110618 |
Bolt Rdhd Sq 3/8-16 x 2-1/4 Price: $2.99 |
| 68 |
532169827 |
Axle, Brace Price: $14.99 |
| 71 |
532175146 |
Steering Asm Price: $61.99 |
| 82 |
532199978 |
BRACKET.SUSP.CHASSIS.FRONT.15 This part replaces 532169835. Price: $11.99 |
| 87 |
532173966 |
Washer Flat .781 x 1-1/2 x .14 Price: $3.99 |
| 88 |
532175118 |
Bolt Shoulder 7/16-20 Price: $3.99 |
| 91 |
532175553 |
Clip Steering Price: $8.99 |
| 94 |
734117201 |
WASHER This part replaces 819121414. Price: $1.99 |
