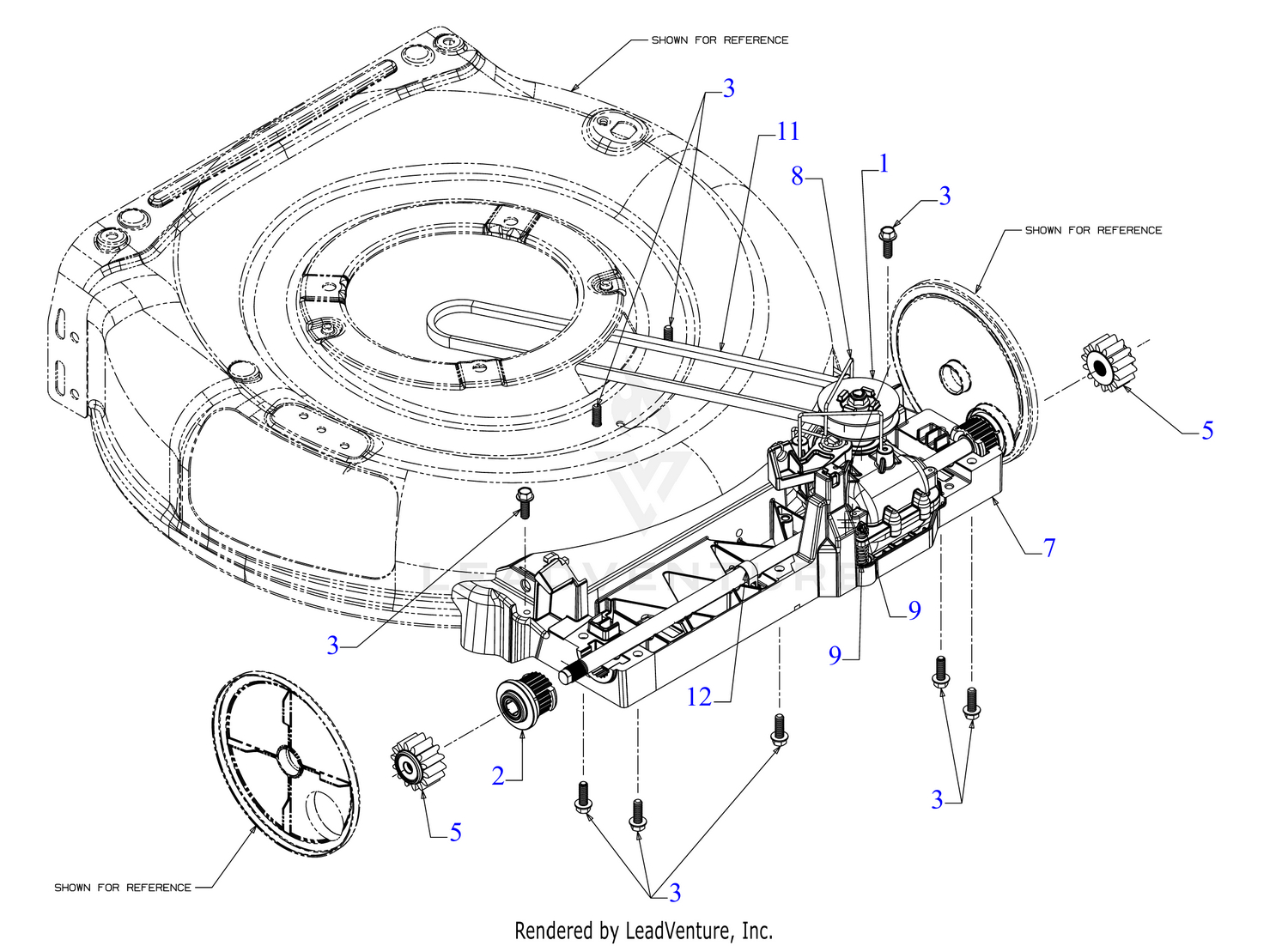

Front Drive
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 618P07464C | TRANSMISSION ASSEMBLY This part replaces 618P07464. Price: $221.16 |
| 2 | 941-00019 | BEARING ASSEMBLY Price: $5.78 |
| 3 | 710-0895 | SCREW 1/4-15 x .750 Price: $5.82 |
| 5 | 717-05432 | SPUR GEAR (14T) (RH) Price: $38.72 |
| 7 | 731-07789A | LOWER TRAY This part replaces 731-07789. Price: $29.05 |
| 8 | 732-04675B | TRANSMISSION WIRE This part replaces 732-04675A. Price: $3.48 |
| 9 | 732-04704 | COMPRESSION SPRING Price: $3.76 |
| 11 | 954-04259A | V-BELT 3L x 33.68 Price: $26.49 |
