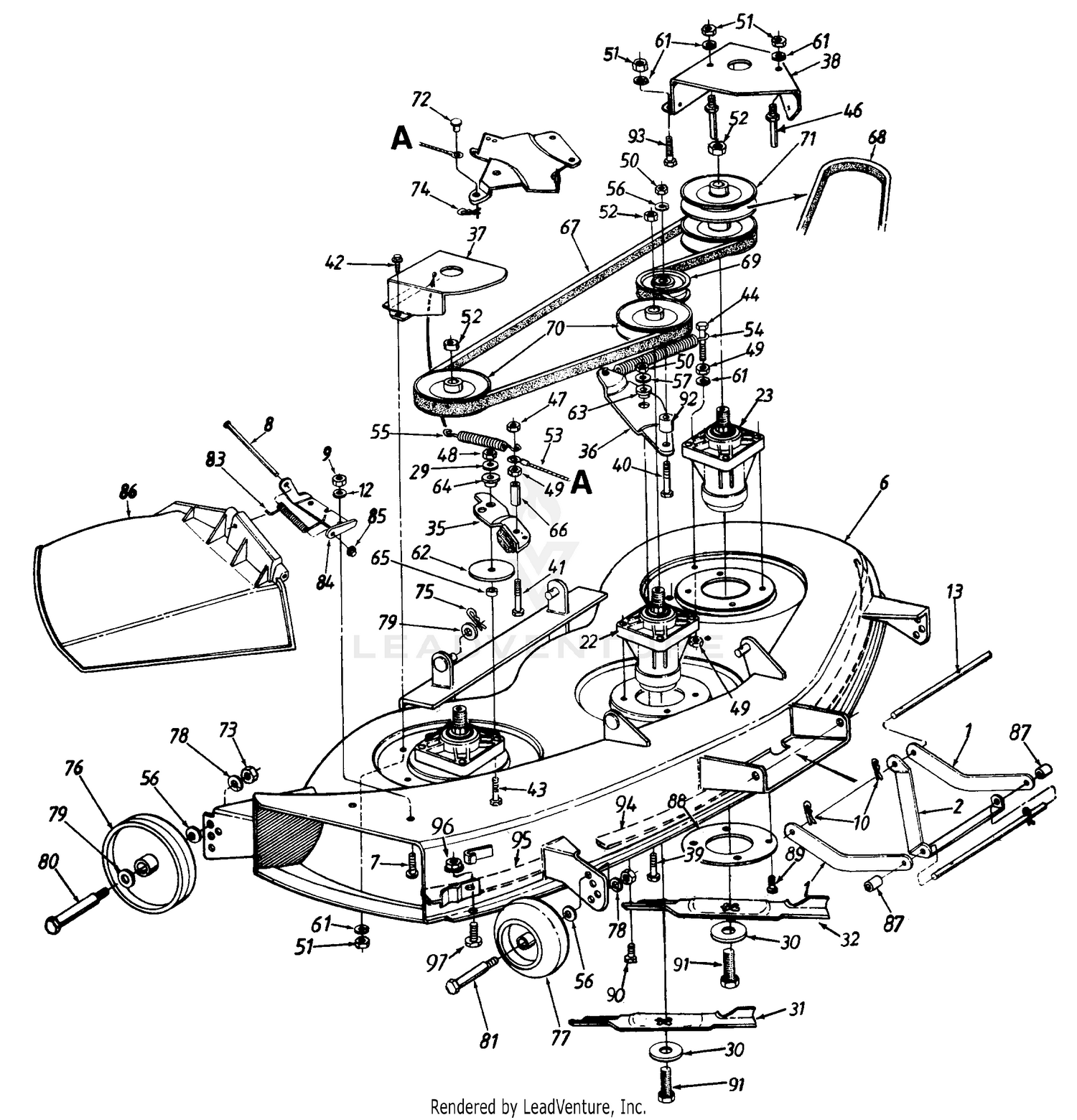

| Ref | Part Number | Description |
|---|
| 2 |
17264 |
BRACE-DIAGONAL Not Available Price: |
| 7 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 8 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 10 |
714-0149B |
Hairpin Clip Price: $3.95 |
| 12 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 13 |
738-0392 |
CONNECTING ROD Not Available Price: |
| 22 |
918-0116C |
Blade Spindle Ass'y. This part replaces 618-0111. Price: $130.97 |
| 23 |
918-0117B |
Spindle Ass'y. (L.H.) This part replaces 618-0112. Price: $179.10 |
| 30 |
736-0510 |
Bell-Wash. .47" I.D. x 1.5" Price: $4.08 |
| 32 |
942-0542 |
High Lift Blade 16.28" Lg. This part replaces 742-0542. Price: $25.22 |
| 36 |
17213A-0637 |
Idler Bracket This part replaces 17213. Price: $17.36 |
| 37 |
17258E |
RH Belt Cover, Deck 46" This part replaces 17258A. Price: $42.26 |
| 38 |
783-0066A |
Belt Cover-L.H. This part replaces 783-0066. Price: $56.13 |
| 39 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 40 |
710-0151 |
Hex Bolt 3/8-24 x 2" Lg. Price: $6.55 |
| 42 |
710-0599 |
Hex Wash. Hd. Tap-Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 44 |
710-0698 |
SCREW 1/4-28 x 1.50 GR5 Not Available Price: |
| 46 |
911-0993 |
Belt Guard Pin 1/4" Dia. This part replaces 711-0993. Price: $3.90 |
| 50 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 52 |
7120417 |
HEX FLANGE NUT Price: $6.50 |
| 54 |
932-0594A |
Extension Spring 6.17" Lg. This part replaces 732-0594A. Price: $13.74 |
| 56 |
736-0105 |
Bell-Wash. .38" I.D. x .88" O.D. Price: $3.96 |
| 57 |
736-0331 |
Bell-Wash. .39" I.D. x 1.13" O.D. Price: $3.50 |
| 63 |
938-0347 |
Shld. Spacer .625" I.D. This part replaces 738-0347. Price: $8.93 |
| 67 |
954-0349 |
V-Belt This part replaces 754-0349. Price: $37.46 |
| 68 |
954-0350 |
V-Belt This part replaces 7540350. Price: $50.92 |
| 69 |
756-0627D |
Fl-Idler Pulley 3.5" O.D. This part replaces 7560627. Price: $28.58 |
| 70 |
756-0969 |
Pulley 5.0" Dia. Price: $33.33 |
| 71 |
756-0603 |
Double Deck Pulley This part replaces 756-0977. Price: $111.09 |
| 73 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 75 |
714-0145 |
Intern. Cotter Pin 3/8 Dia. Price: $4.42 |
| 76 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 77 |
753-04856A |
Deck Wheel w/Insert 5" Dia. This part replaces 734-3058B. Price: $18.23 |
| 79 |
736-0192 |
Fl-Wash. .531" I.D. Price: $3.75 |
| 80 |
738-0533 |
SCREW:SHLDR:0.498X1.630:3/8-16 This part replaces 7380533. Price: $7.42 |
| 81 |
938-3056 |
Shoulder Bolt This part replaces 738-3056. Price: $8.53 |
| 83 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 84 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 85 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 87 |
950-0932A |
Spacer 5/8" I.D. x 7/8" O.D. This part replaces 750-0757. Price: $18.32 |
| 88 |
17982-0637 |
PLATE-SPINDLE Not Available This part replaces 17982. Price: |
| 89 |
710-0650 |
Hex TT-Tap Scr. 5/16-18 x 7/8" This part replaces 710-1261. Price: $3.71 |
| 90 |
710-1260A |
Hex Wash. Hd. Scr. 5/16-18 x .75" This part replaces 7101260. Price: $3.34 |
| 92 |
711-0242 |
Spacer .38" I.D. Price: $3.95 |
| 93 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 94 |
783-0141 |
Skirt - Center Price: $53.24 |
| 95 |
783-0142-0637 |
Skirt-Right Hand This part replaces 783-0142. Price: $42.48 |
| 96 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
