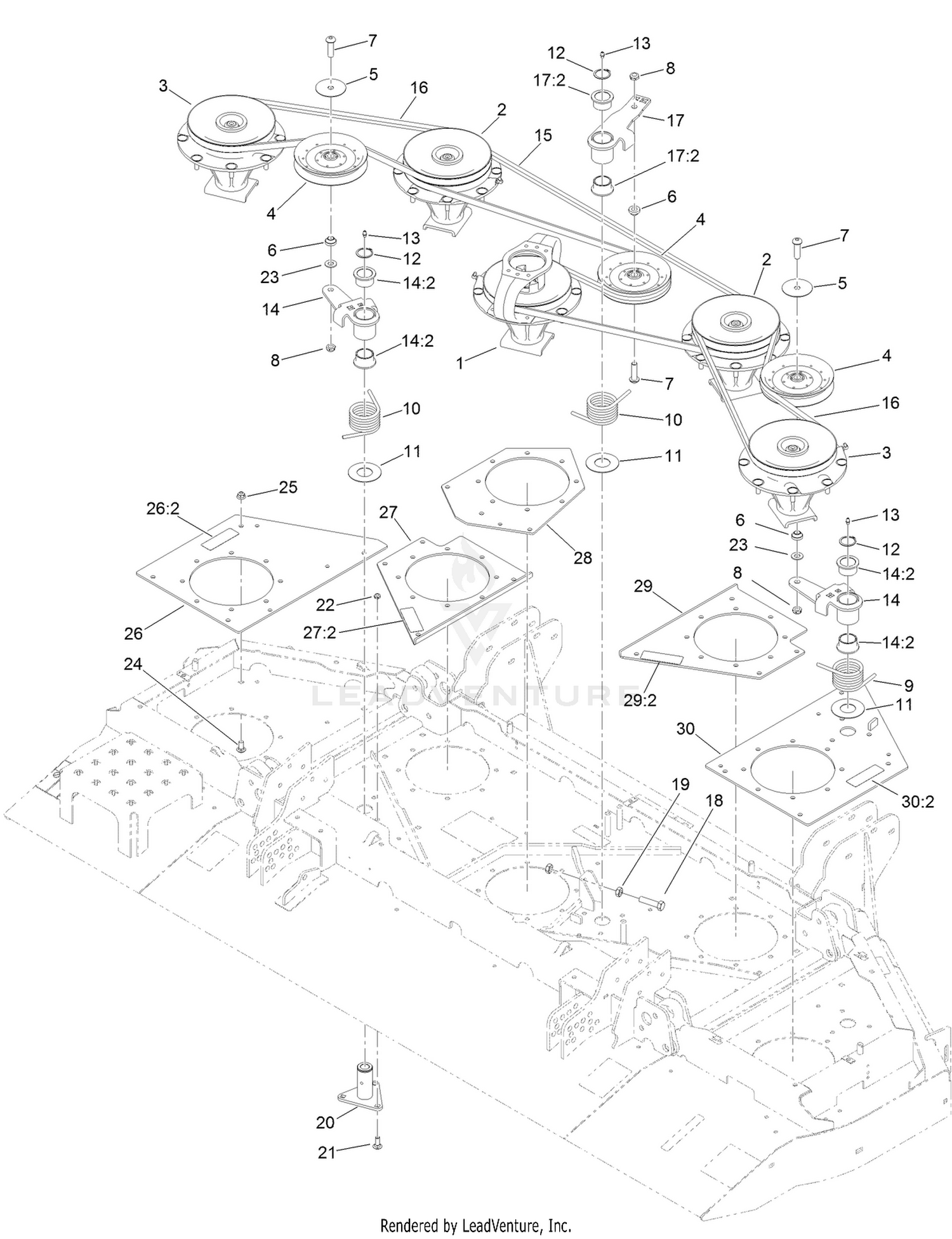

| Ref | Part Number | Description |
|---|
| 1 |
139-1034 |
SINGLE DRIVING SPINDLE ASM This part replaces 131-0768. Price: $1,001.77 |
| 2 |
139-1033 |
DOUBLE DRIVEN SPINDLE ASM This part replaces 117-9234. Price: $537.23 |
| 3 |
139-1032 |
HIGH DRIVEN SPINDLE ASM This part replaces 117-9233. Price: $537.23 |
| 4 |
132-9421 |
PULLEY-IDLER, FLAT This part replaces 110-9596. Price: $41.10 |
| 5 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 6 |
108-1924 |
SPACER-IDLER Price: $11.13 |
| 7 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 8 |
3296-45 |
NUT-HEX Price: $3.79 |
| 9 |
108-1921 |
SPRING-TORSION Price: $28.33 |
| 10 |
112-7395 |
SPRING-TORSION Price: $26.70 |
| 11 |
108-1926 |
WASHER Price: $5.30 |
| 12 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 14 |
140-7079 |
IDLER ARM ASM This part replaces 117-9176. Price: $49.85 |
| 15 |
112-7376 |
BELT-V, B Price: $109.94 |
| 16 |
112-7377 |
BELT-V, B Price: $37.14 |
| 17 |
144-4150 |
IDLER ARM ASM This part replaces 114-0100. Price: $76.64 |
| 18 |
01-182-0816 |
BOLT-HH Price: $2.85 |
| 19 |
3218-5 |
NUT-JAM Price: $0.27 |
| 20 |
114-0997 |
PIVOT-IDLER Price: $53.85 |
| 21 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 22 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 23 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 25 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 26 |
132-1611 |
LH SPINDLE PLATE ASM Price: $86.47 |
| 27 |
132-1608 |
LEFT SPINDLE PLATE ASM Price: $76.01 |
| 28 |
132-1602-01 |
PLATE-SPINDLE, CENTER Price: $54.00 |
| 29 |
132-1607 |
RIGHT SPINDLE PLATE ASM Price: $76.01 |
| 30 |
132-1609 |
RH SPINDLE PLATE ASM Price: $87.99 |
