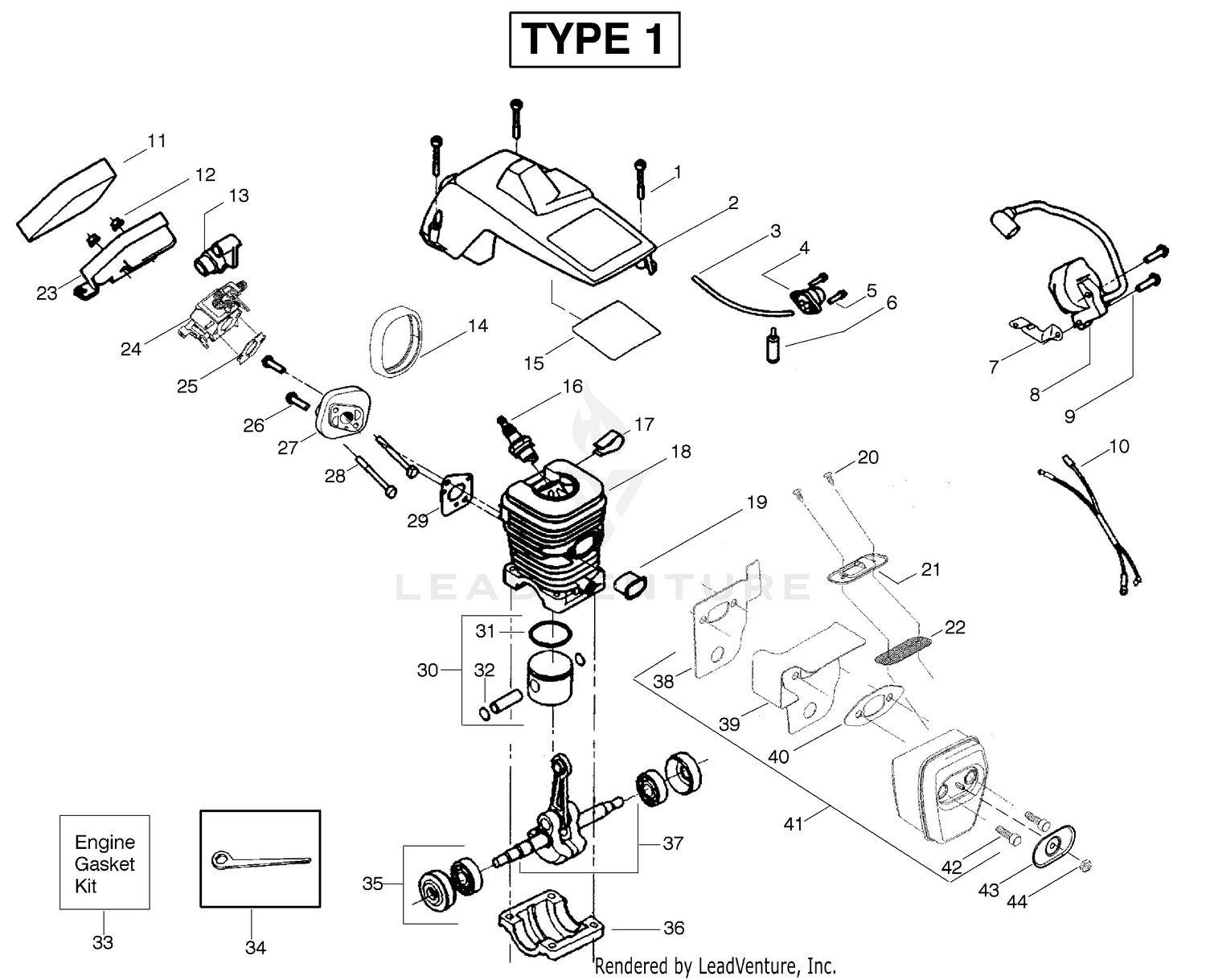

| Ref | Part Number | Description |
|---|
| 1 |
530016153 |
Screw Price: $1.99 |
| 3 |
120-0404 |
BRACKET-HIGH HOC (LH) Price: $71.73 |
| 4 |
120-0405 |
BRACKET-HIGH HOC (RH) Price: $71.73 |
| 4 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 5 |
119-0626 |
SHIM-ROLLER Price: $3.23 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
530039198 |
Ignition Module Price: $29.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 10 |
530052296 |
Assy-Wire Harness Price: $4.99 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 11 |
530037793 |
Foam- Air Filter Price: $1.99 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 13 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 14 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 15 |
530055698 |
Reflector-Heat Price: $1.99 |
| 17 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 18 |
530012550 |
Cylinder This part replaces 530012411. Price: $17.99 |
| 19 |
530037652 |
Insulator-Heat Price: $1.99 |
| 20 |
530016351 |
Screw-Outlet cover Price: $1.99 |
| 21 |
530055759 |
Cover - Outlet Price: $2.99 |
| 23 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 24 |
530071410 |
Kit-Carburetor (Wt-600) Price: $24.24 |
| 24 |
545081885 |
Kit-Carburetor (Walbro-WT-89) This part replaces 530071618. Price: $22.99 |
| 26 |
530016386 |
Screw Price: $5.99 |
| 27 |
530049700 |
Carb. Adapter Price: $3.99 |
| 28 |
530016187 |
Screw Price: $1.99 |
| 31 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 32 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 34 |
545006011 |
SCRENCH This part replaces 530031063. Price: $6.99 |
| 35 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 36 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 37 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 38 |
530054885 |
Backplate Price: $5.99 |
| 39 |
530054880 |
Guide-Outlet Price: $5.99 |
| 42 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 43 |
530055586 |
Cover-Bolt Price: $0.99 |
