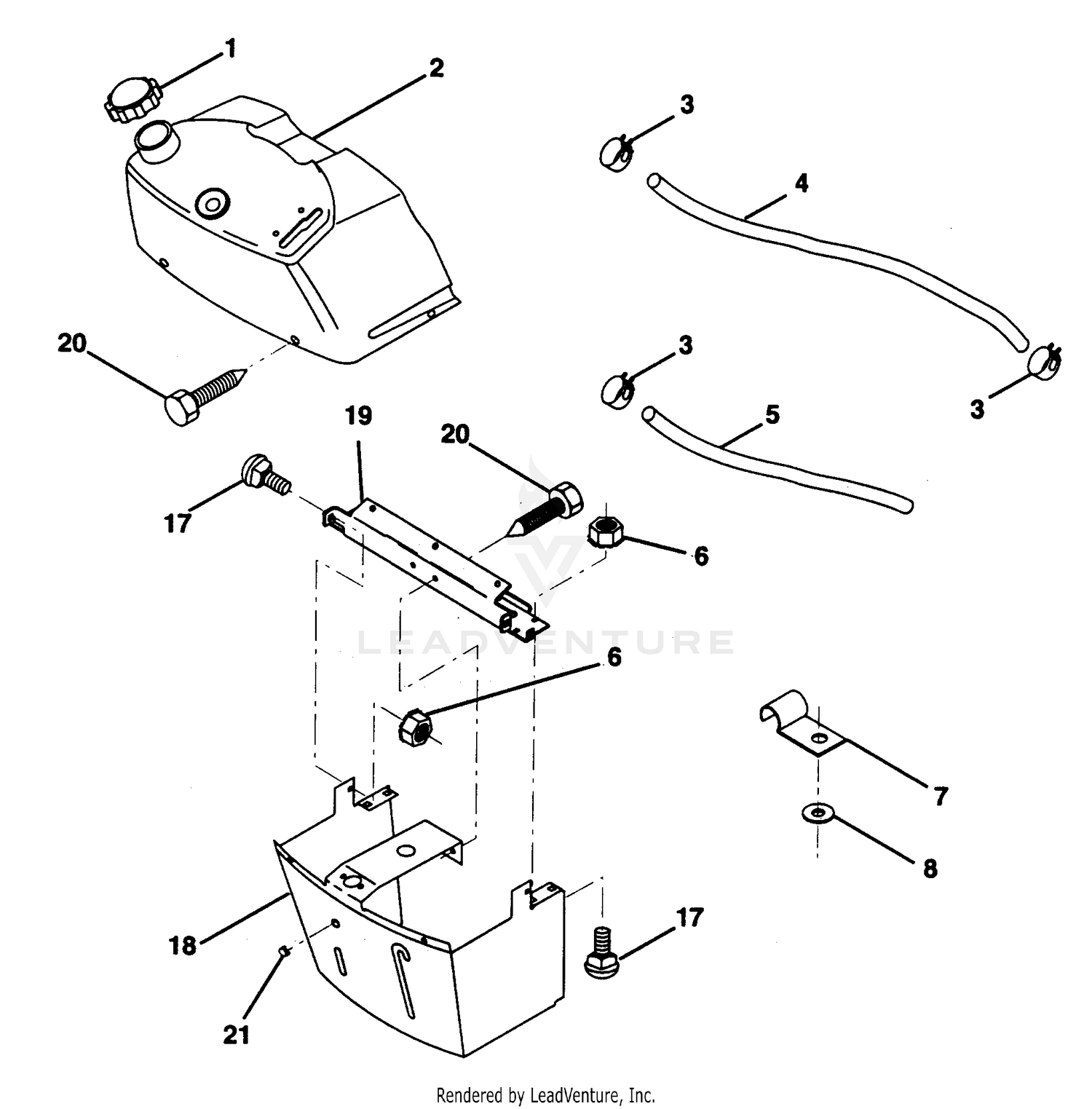

| Ref | Part Number | Description |
|---|
| 1 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532141523. Price: $14.99 |
| 2 |
532138392 |
Assembly, Dash & Fuel Tank (AYP part number) Price: $75.81 |
| 3 |
108-4213 |
BRACKET-HOC, GROOMER (LH) Price: $103.51 |
| 3 |
532123487 |
Clamp, Hose (AYP part number) Price: $3.99 |
| 4 |
108-4214 |
BRACKET-HOC, GROOMER (RH) Price: $103.51 |
| 4 |
532008544 |
Line, Fuel (AYP part number) Price: $2.99 |
| 5 |
106-3925 |
SHIM-ROLLER (0.25) Price: $5.22 |
| 5 |
532008548 |
Line, Fuel (AYP part number) Price: $2.99 |
| 6 |
106-9758 |
SCREW-CARR Price: $2.99 |
| 6 |
873640400 |
Nut, Hex, Keps 1/4-20 (AYP part number) Price: $2.99 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 7 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 8 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 8 |
531003379 |
WASHER This part replaces 819091216. Price: $2.99 |
| 9 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 10 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 11 |
322-16 |
SCREW-HH Price: $3.39 |
| 17 |
872110404 |
Bolt, Carriage 1/4-20 x 1/2 Grade 5 (AYP part number) Price: $3.99 |
| 18 |
532131886 |
Support Assembly, Dash (AYP part number) Price: $21.03 |
| 19 |
532134744 |
Brace, Cross (AYP part number) Price: $9.17 |
| 20 |
817060408 |
Screw, Self-Tapping 1/4-20 x 1/2 (AYP part number) Price: $3.99 |
