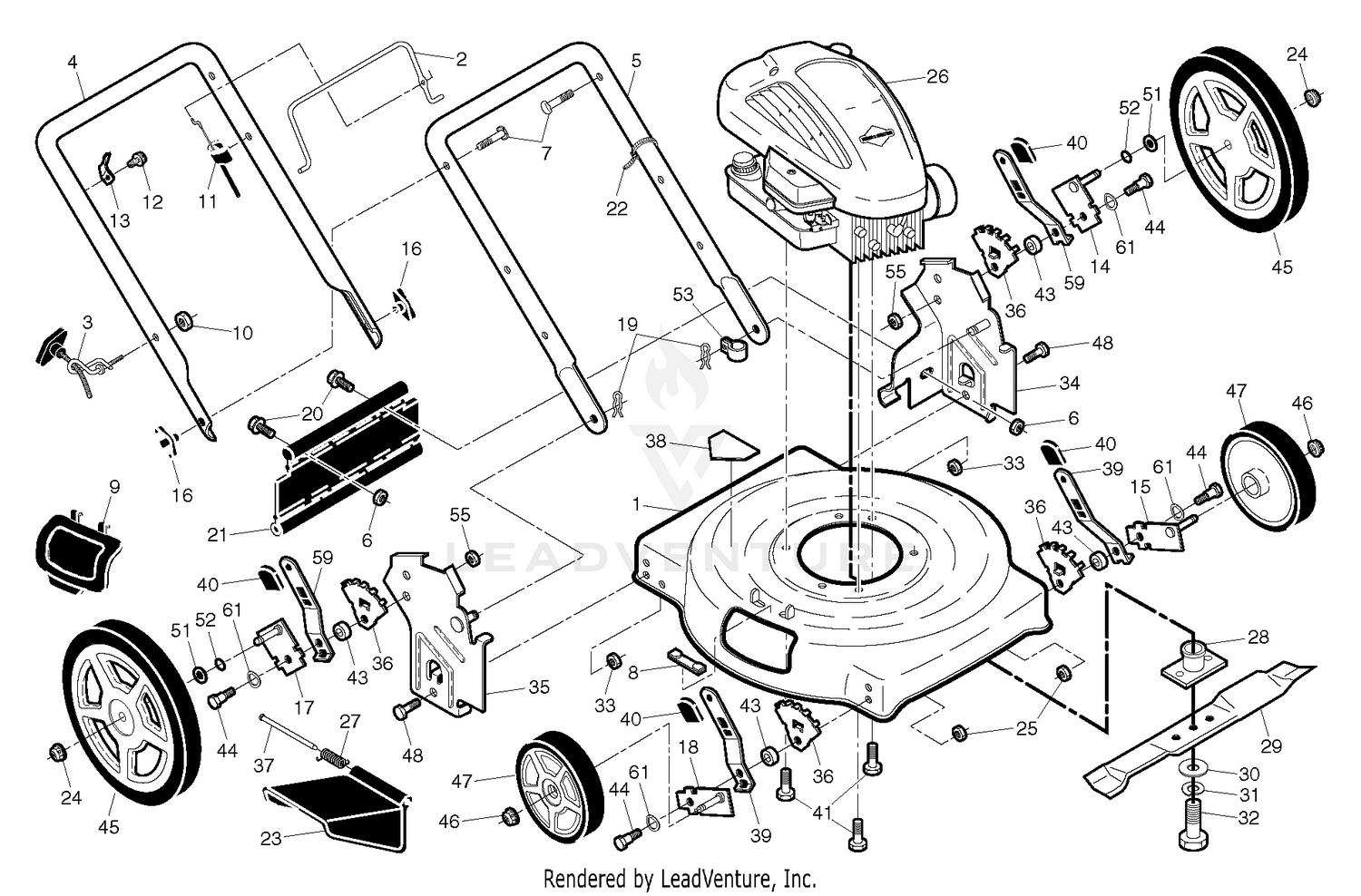

| Ref | Part Number | Description |
|---|
| 1 |
3218-5 |
NUT-JAM Price: $0.27 |
| 2 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 2 |
532196025 |
BAIL.CONT.D.STRAIGHT.PUSH.BLK Price: $7.99 |
| 3 |
325-13 |
SCREW-HH This part replaces 325-26. Price: $3.57 |
| 3 |
532194788 |
GUIDE.ROPE.STD.BLK.ZIN Price: $3.99 |
| 4 |
532448263 |
HANDLE.UPPER.ECONOMY.BLACK Price: $22.99 |
| 5 |
532434514 |
HANDLE.LOWER.D-STRAIT.BLACK Price: $22.99 |
| 6 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 7 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $1.99 |
| 8 |
532161622 |
CLIP. CLOSEOUT Price: $9.99 |
| 9 |
532160830 |
PLATE.MULCHER.22.ECON.BLACK Price: $4.99 |
| 10 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 532132004. Price: $1.99 |
| 11 |
532440934 |
CABLE.MZR.RATO.22"LOW. Price: $11.99 |
| 12 |
532178848 |
SCREW Price: $3.99 |
| 13 |
532430034 |
BRACKET.UPSTOP.RT Price: $2.99 |
| 16 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532445019. Price: $1.99 |
| 19 |
532051793 |
HAIRPIN COTTER Price: $3.99 |
| 20 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 21 |
532413160 |
SKIRT.REAR.22RD/SD.FO/VE Price: $8.99 |
| 22 |
532007192 |
WIRE TIE This part replaces 532066426. Price: $3.99 |
| 23 |
532160831 |
GUARD.DISCHARGE.22". Price: $6.99 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 25 |
532426589 |
NUT.FLANGE.HEX.5/16X18.BLACK Price: $2.99 |
| 27 |
532408585 |
SPRING.HINGE Price: $6.99 |
| 28 |
532418373 |
ADAPTER.BLADE.W/KEY.25MM.CE Price: $7.99 |
| 29 |
532406713 |
BLADE.22.MULCH.STANDARD Price: $11.99 |
| 30 |
532851074 |
WASHER,HARDEN Price: $2.99 |
| 31 |
539990118 |
SLW 3/8 STD This part replaces 532850263. Price: $1.99 |
| 32 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $3.99 |
| 33 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.99 |
| 34 |
532403508 |
BRKT.ASM.HDL.22.ECON.BLACK Price: $11.99 |
| 35 |
532403507 |
BRKT.ASM.HNDL.22.ECON.HW.RH.BL Price: $11.99 |
| 36 |
532407494 |
BRACKET ADJ. 5 POS ADS This part replaces 532410594. Price: $2.99 |
| 37 |
532160833 |
HINGE ROD Price: $2.99 |
| 38 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532404763. Price: $4.99 |
| 39 |
532401621 |
SPRING.SELECTOR.5POS.BZP This part replaces 532406428. Price: $3.99 |
| 40 |
532087877 |
KNOB PM Price: $2.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $3.99 |
| 43 |
532401629 |
SPACER.HEIGHT.ADJUSTER Price: $2.99 |
| 44 |
532401638 |
SHOULDER BOLT 5/16-18 Price: $2.99 |
| 45 |
532440487 |
WHEEL.12X1.75.5SPK.BRK.GRN. Price: $29.99 |
| 46 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $2.99 |
| 47 |
532430501 |
WHEEL.7X1.75.5SPK.BRK.BLACK This part replaces 532436478. Price: $11.99 |
| 48 |
874760514 |
BOLT Price: $3.99 |
| 51 |
532088348 |
WASHER PM Price: $3.99 |
| 52 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 55 |
532751153 |
NUT.LOCK.5/16-18 Price: $1.99 |
| 59 |
532401624 |
SPRING.SEL.EXT.21.DOMED.12/14 This part replaces 532410595. Price: $2.99 |
| 61 |
532401630 |
WASHER.CURVED.CYLINDRICAL Price: $2.99 |
