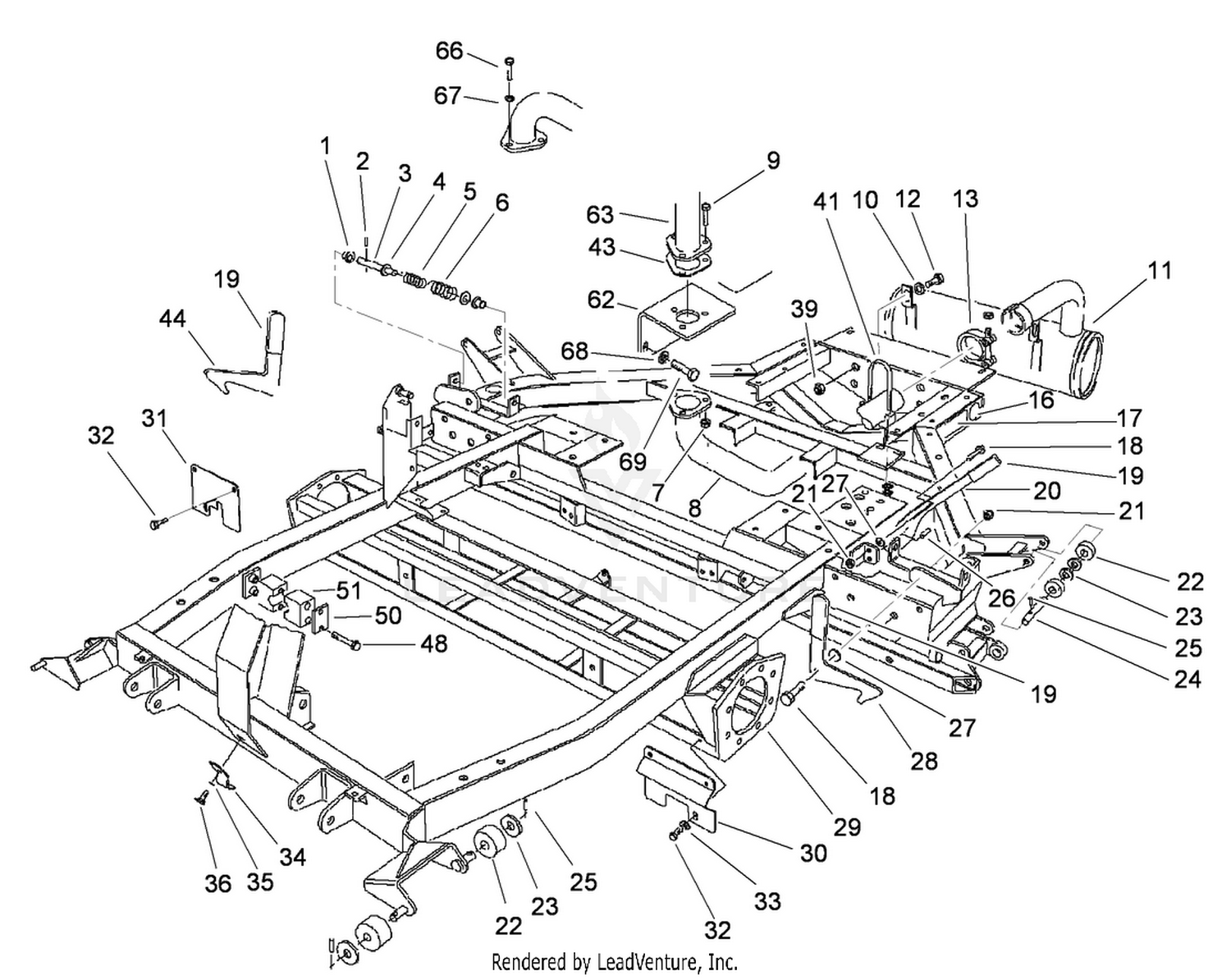

Frame and Muffler Assembly
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 58-2800 | BUSHING Price: $16.22 |
| 2 | 60-3720 | PIN-ROLL Price: $2.43 |
| 3 | 58-2810 | ROD Price: $77.22 |
| 4 | 3256-7 | WASHER-FLAT Price: $0.75 |
| 5 | 48-6780 | SPRING-COMPRESSION Price: $28.08 |
| 6 | 60-1240 | SPRING Price: $37.47 |
| 7 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 8 | 98-1230-03 | TUBE-LOWER Price: $483.36 |
| 9 | 322-7 | SCREW-HH Price: $0.89 |
| 10 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 11 | 92-5273 | MUFFLER Price: $831.75 |
| 12 | 323-9 | SCREW-HH Price: $1.29 |
| 13 | 2412-132 | CLAMP, T-BOLT Price: $15.50 |
| 16 | 58-6520 | DECAL-GREASE Price: $2.57 |
| 17 | 93-9405 | DECAL-PRESSURE, AIR Price: $9.81 |
| 18 | 33116-030 | SCREW-HH Price: $1.56 |
| 19 | 48-7081 | GRIP-PLASTIC Price: $7.54 |
| 20 | 86-6570-03 | LATCH Price: $157.07 |
| 21 | 51-2070 | NUT Price: $0.68 |
| 22 | 82-4910 | ROLLER Price: $26.42 |
| 23 | 51-2060 | WASHER Price: $0.68 |
| 24 | 60-0160 | PIN Price: $39.08 |
| 25 | 60-2110 | PIN Price: $1.42 |
| 26 | 48-8830 | PIN-EXPANSION Price: $1.52 |
| 27 | 48-8850 | SPRING-DISC Price: $4.79 |
| 28 | 86-6590-03 | LATCH-LH Price: $47.66 |
| 29 | 94-8268-01 | FRAME ASM Price: $8,083.31 |
| 30 | 60-4190-03 | SHIELD-GRASS, LH Price: $45.54 |
| 31 | 60-4200-03 | SHIELD-GRASS, RH Price: $49.14 |
| 32 | 48-6900 | SCREW Price: $1.52 |
| 33 | 33093-00 | WASHER-FLAT Price: $0.70 |
| 34 | 60-2080 | CLAMP-HOSE Price: $21.62 |
| 35 | 3253-4 | WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 36 | 48-7680 | SCREW-HH Price: $0.61 |
| 39 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 41 | 76-3560 | CLAMP Price: $5.32 |
| 43 | 98-7817 | GASKET-MUFFLER Price: $8.91 |
| 44 | 86-6580-03 | LATCH-RH Price: $47.66 |
| 48 | 321-9 | SCREW-HH Price: $0.27 |
| 50 | 82-2980 | PLATE-COVER Price: $3.62 |
| 51 | 82-2990 | CLAMP-HALF Price: $12.30 |
| 62 | 98-1246-03 | BRACKET-EXHAUST Price: $49.56 |
| 63 | 98-1231-03 | TUBE-UPPER Price: $245.35 |
| 66 | 33114-025 | SCREW-HH Price: $0.70 |
| 67 | 3253-4 | WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 68 | 43-5940 | WASHER-LOCK, SPRING Price: $0.70 |
